General Assist Internal Reference
RAQ Premium Rooftop Package Unit Part Numbers
Serial breaks and production part-number changes
This internal reference identifies spare-part changes made during production of RAQ/K/WP/EC rooftop package units. Some changes have no visible indicator on the unit, so the exact model and full serial number must be confirmed before a part is selected or ordered.
19
Models reviewed
9
Models with changes
160
Change events
4,130
Exact lookup rows
How to use this reference
| 1 | Confirm the exact model and full serial number from the unit rating plate. |
| 2 | Go to the applicable model section and match the serial number against the listed serial range. |
| 3 | Read across to the part number for the required component. |
| 4 | If the component is not shown, use the exact AI lookup file or master workbook. This article highlights changed parts and selected all-serial parts; it is not a complete spare-parts list. |
Important: Do not assume that the newest-looking part number applies to every later unit. Several models revert to an earlier part number in later production runs. Always match the serial range.
Model index
RAQ/K/WP/EC 110RAQ/K/WP/EC 112RAQ/K/WP/EC 115RAQ/K/WP/EC 118RAQ/K/WP/EC 15RAQ/K/WP/EC 17RAQ/K/WP/EC 224RAQ/K/WP/EC 230RAQ/K/WP/EC 236
RAQ/K/WP/EC 110
Model production span: NEW to RTQ240500101. Changed components in this model: 4 way valve, EC fans/Blower, HP switches, HP transducers, LP switches, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| 4 way valve | Pre-serial units | 328126 | 1 |
| RAQ22090001 to RAQ22090002 | M2400063 | 2 | |
| RAQ231000243 to RAQ231000243 | M2400063 | 1 | |
| RAQ240100029 to RAQ240100031 | M2400067 | 3 | |
| RAQ250500039 to RAQ250500043 | 328126 | 5 | |
| RAQ251100076 to RAQ251100077 | 328126 | 2 | |
| RTQ240500096 to RTQ240500101 | M2400067 | 6 | |
| EC fans/Blower | Pre-serial units | A3100364 | 1 |
| RAQ22090001 to RAQ22090002 | M017-A1000-0001 | 2 | |
| RAQ231000243 to RAQ231000243 | M017-A1000-0009 | 1 | |
| RAQ240100029 to RAQ240100031 | M017-A1000-0009 | 3 | |
| RAQ250500039 to RAQ250500043 | A3100364 | 5 | |
| RAQ251100076 to RAQ251100077 | A3100364 | 2 | |
| RTQ240500096 to RTQ240500101 | M017-A1000-0009 | 6 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| RAQ22090001 to RAQ22090002 | 315457 | 2 | |
| RAQ231000243 to RAQ231000243 | 315457 | 1 | |
| RAQ240100029 to RAQ240100031 | 315457 | 3 | |
| RAQ250500039 to RAQ250500043 | A7500019 | 5 | |
| RAQ251100076 to RAQ251100077 | A7500019 | 2 | |
| RTQ240500096 to RTQ240500101 | 315457 | 6 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| RAQ22090001 to RAQ22090002 | 327217 | 2 | |
| RAQ231000243 to RAQ231000243 | M3500837 | 1 | |
| RAQ240100029 to RAQ240100031 | 327217 | 3 | |
| RAQ250500039 to RAQ250500043 | M3500837 | 5 | |
| RAQ251100076 to RAQ251100077 | M3500837 | 2 | |
| RTQ240500096 to RTQ240500101 | M3500837 | 6 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| RAQ22090001 to RAQ22090002 | 315448 | 2 | |
| RAQ231000243 to RAQ231000243 | 315448 | 1 | |
| RAQ240100029 to RAQ240100031 | 315448 | 3 | |
| RAQ250500039 to RAQ250500043 | A7500020 | 5 | |
| RAQ251100076 to RAQ251100077 | A7500020 | 2 | |
| RTQ240500096 to RTQ240500101 | 315448 | 6 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| RAQ22090001 to RAQ22090002 | M0800036 | 2 | |
| RAQ231000243 to RAQ231000243 | M0800036 | 1 | |
| RAQ240100029 to RAQ240100031 | M0800036 | 3 | |
| RAQ250500039 to RAQ250500043 | A2600001 | 5 | |
| RAQ251100076 to RAQ251100077 | A2600001 | 2 | |
| RTQ240500096 to RTQ240500101 | M0800036 | 6 | |
| compressor | ALL SERIALS | M0100030 | 20 |
| crankcase heater | ALL SERIALS | M3500217 | 20 |
| Condenser fan | ALL SERIALS | M5100031 | 20 |
| Sight glass | ALL SERIALS | M0700117 | 20 |
| TX valve | ALL SERIALS | M1100093 | 20 |
| 4 way valve coil | ALL SERIALS | M2400064 | 20 |
| Temperature sensor | ALL SERIALS | 318651 | 20 |
| MCX microprocessor | ALL SERIALS | 325974 | 20 |
| Main display | ALL SERIALS | 316829A | 20 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| 4 way vlv | 328126 | M2400063 | RAQ231000243 |
| 4 way vlv | M2400063 | M2400067 | RAQ240100029 |
| 4 way vlv | M2400067 | 328126 | RAQ250500039 |
| 4 way vlv | 328126 | M2400067 | RTQ240500096 |
| EC fans/Blower | A3100364 | M017-A1000-0009 | RAQ231000243 |
| EC fans/Blower | M017-A1000-0009 | A3100364 | RAQ250500039 |
| EC fans/Blower | A3100364 | M017-A1000-0009 | RTQ240500096 |
| HP switchs | A7500019 | 315457 | RAQ231000243 |
| HP switchs | 315457 | A7500019 | RAQ250500039 |
| HP switchs | A7500019 | 315457 | RTQ240500096 |
| HP transducers | M3500837 | 327217 | RAQ240100029 |
| HP transducers | 327217 | M3500837 | RAQ250500039 |
| LP switchs | A7500020 | 315448 | RAQ231000243 |
| LP switchs | 315448 | A7500020 | RAQ250500039 |
| LP switchs | A7500020 | 315448 | RTQ240500096 |
| filter drier | A2600001 | M0800036 | RAQ231000243 |
| filter drier | M0800036 | A2600001 | RAQ250500039 |
| filter drier | A2600001 | M0800036 | RTQ240500096 |
RAQ/K/WP/EC 112
Model production span: NEW to RTQ240500095. Changed components in this model: 4 way valve, Display, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| 4 way vlv | Pre-serial units | M2400067 | 1 |
| RAQ22090003 to RAQ22090005 | M2400067 | 3 | |
| RAQ240100032 to RAQ240100034 | M2400067 | 3 | |
| RAQ250100014 to RAQ250100014 | M2400067 | 1 | |
| RAQ250100015 to RAQ250100015 | M2400068 | 1 | |
| RAQ250500035 to RAQ250500036 | M2400067 | 2 | |
| RAQ251100067 to RAQ251100068 | M2400067 | 2 | |
| RAQ251100078 to RAQ251100079 | M2400067 | 2 | |
| RAQ251100082 to RAQ251100082 | M2400067 | 1 | |
| RTQ240500091 to RTQ240500095 | M2400067 | 5 | |
| Display | Pre-serial units | 316829A | 1 |
| RAQ22090003 to RAQ22090005 | 316829 | 3 | |
| RAQ240100032 to RAQ240100034 | 316829A | 3 | |
| RAQ250100014 to RAQ250100015 | 316829A | 2 | |
| RAQ250500035 to RAQ250500036 | 316829A | 2 | |
| RAQ251100067 to RAQ251100068 | 316829A | 2 | |
| RAQ251100078 to RAQ251100079 | 316829A | 2 | |
| RAQ251100082 to RAQ251100082 | 316829A | 1 | |
| RTQ240500091 to RTQ240500095 | 316829A | 5 | |
| EC fans/Blower | Pre-serial units | A3100364 | 1 |
| RAQ22090003 to RAQ22090005 | M017-A1000-0001 | 3 | |
| RAQ240100032 to RAQ240100034 | M017-A1000-0009 | 3 | |
| RAQ250100014 to RAQ250100015 | A3100364 | 2 | |
| RAQ250500035 to RAQ250500036 | A3100364 | 2 | |
| RAQ251100067 to RAQ251100068 | A3100364 | 2 | |
| RAQ251100078 to RAQ251100079 | A3100364 | 2 | |
| RAQ251100082 to RAQ251100082 | A3100364 | 1 | |
| RTQ240500091 to RTQ240500095 | M017-A1000-0009 | 5 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| RAQ22090003 to RAQ22090005 | 315457 | 3 | |
| RAQ240100032 to RAQ240100034 | 315457 | 3 | |
| RAQ250100014 to RAQ250100015 | A7500019 | 2 | |
| RAQ250500035 to RAQ250500036 | A7500019 | 2 | |
| RAQ251100067 to RAQ251100068 | A7500019 | 2 | |
| RAQ251100078 to RAQ251100079 | A7500019 | 2 | |
| RAQ251100082 to RAQ251100082 | A7500019 | 1 | |
| RTQ240500091 to RTQ240500095 | 315457 | 5 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| RAQ22090003 to RAQ22090005 | 327217 | 3 | |
| RAQ240100032 to RAQ240100034 | 327217 | 3 | |
| RAQ250100014 to RAQ250100015 | M3500837 | 2 | |
| RAQ250500035 to RAQ250500036 | M3500837 | 2 | |
| RAQ251100067 to RAQ251100068 | M3500837 | 2 | |
| RAQ251100078 to RAQ251100079 | M3500837 | 2 | |
| RAQ251100082 to RAQ251100082 | M3500837 | 1 | |
| RTQ240500091 to RTQ240500095 | M3500837 | 5 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| RAQ22090003 to RAQ22090005 | 315448 | 3 | |
| RAQ240100032 to RAQ240100034 | 315448 | 3 | |
| RAQ250100014 to RAQ250100015 | A7500020 | 2 | |
| RAQ250500035 to RAQ250500036 | A7500020 | 2 | |
| RAQ251100067 to RAQ251100068 | A7500020 | 2 | |
| RAQ251100078 to RAQ251100079 | A7500020 | 2 | |
| RAQ251100082 to RAQ251100082 | A7500020 | 1 | |
| RTQ240500091 to RTQ240500095 | 315448 | 5 | |
| Compressors | Pre-serial units | M0100035 | 1 |
| RAQ22090003 to RAQ22090005 | M0100023 | 3 | |
| RAQ240100032 to RAQ240100034 | M0100035 | 3 | |
| RAQ250100014 to RAQ250100015 | M0100035 | 2 | |
| RAQ250500035 to RAQ250500036 | M0100035 | 2 | |
| RAQ251100067 to RAQ251100068 | M0100035 | 2 | |
| RAQ251100078 to RAQ251100079 | M0100035 | 2 | |
| RAQ251100082 to RAQ251100082 | M0100035 | 1 | |
| RTQ240500091 to RTQ240500095 | M0100035 | 5 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| RAQ22090003 to RAQ22090005 | M0800036 | 3 | |
| RAQ240100032 to RAQ240100034 | M0800036 | 3 | |
| RAQ250100014 to RAQ250100015 | A2600001 | 2 | |
| RAQ250500035 to RAQ250500036 | A2600001 | 2 | |
| RAQ251100067 to RAQ251100068 | A2600001 | 2 | |
| RAQ251100078 to RAQ251100079 | A2600001 | 2 | |
| RAQ251100082 to RAQ251100082 | A2600001 | 1 | |
| RTQ240500091 to RTQ240500095 | M0800036 | 5 | |
| crankcase heater | ALL SERIALS | M3500217 | 21 |
| Condenser fan | ALL SERIALS | M5100031 | 21 |
| Sight glass | ALL SERIALS | M0700117 | 21 |
| TX valve | ALL SERIALS | M1100122 | 21 |
| 4 way valve coil | ALL SERIALS | M2400064 | 21 |
| Temperature sensor | ALL SERIALS | 318651 | 21 |
| MCX microprocessor | ALL SERIALS | 325974 | 21 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| 4 way valve | M2400067 | M2400068 | RAQ250100015 |
| 4 way valve | M2400068 | M2400067 | RAQ250500035 |
| Display | 316829A | 316829 | RAQ22090003 |
| Display | 316829 | 316829A | RAQ240100032 |
| EC fans/Blower | A3100364 | M017-A1000-0001 | RAQ22090003 |
| EC fans/Blower | M017-A1000-0001 | M017-A1000-0009 | RAQ240100032 |
| EC fans/Blower | M017-A1000-0009 | A3100364 | RAQ250100014 |
| EC fans/Blower | A3100364 | M017-A1000-0009 | RTQ240500091 |
| HP switches | A7500019 | 315457 | RAQ22090003 |
| HP switches | 315457 | A7500019 | RAQ250100014 |
| HP switches | A7500019 | 315457 | RTQ240500091 |
| HP transducers | M3500837 | 327217 | RAQ22090003 |
| HP transducers | 327217 | M3500837 | RAQ250100014 |
| LP switches | A7500020 | 315448 | RAQ22090003 |
| LP switches | 315448 | A7500020 | RAQ250100014 |
| LP switches | A7500020 | 315448 | RTQ240500091 |
| compressors | M0100035 | M0100023 | RAQ22090003 |
| compressors | M0100023 | M0100035 | RAQ240100032 |
| filter drier | A2600001 | M0800036 | RAQ22090003 |
| filter drier | M0800036 | A2600001 | RAQ250100014 |
| filter drier | A2600001 | M0800036 | RTQ240500091 |
RAQ/K/WP/EC 115
Model production span: RAQ231000238 to RTQ240500090. Changed components in this model: EC fans/Blower, HP switches, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| EC fans/Blower | RAQ231000238 to RAQ231000238 | M017-A1000-0024 | 1 |
| RAQ231100220 to RAQ231100227 | M017-A1000-0024 | 8 | |
| RAQ250500033 to RAQ250500034 | A3100365 | 2 | |
| RAQ251100083 to RAQ251100084 | A3100365 | 2 | |
| RTQ240500083 to RTQ240500090 | M017-A1000-0024 | 8 | |
| HP switches | RAQ231000238 to RAQ231000238 | 315457 | 1 |
| RAQ231100220 to RAQ231100227 | 315457 | 8 | |
| RAQ250500033 to RAQ250500034 | A7500019 | 2 | |
| RAQ251100083 to RAQ251100084 | A7500019 | 2 | |
| RTQ240500083 to RTQ240500090 | 315457 | 8 | |
| LP switches | RAQ231000238 to RAQ231000238 | 315448 | 1 |
| RAQ231100220 to RAQ231100227 | 315448 | 8 | |
| RAQ250500033 to RAQ250500034 | A7500020 | 2 | |
| RAQ251100083 to RAQ251100084 | A7500020 | 2 | |
| RTQ240500083 to RTQ240500090 | 315448 | 8 | |
| compressors | RAQ231000238 to RAQ231000238 | M0100024 | 1 |
| RAQ231100220 to RAQ231100227 | M0100024 | 8 | |
| RAQ250500033 to RAQ250500034 | M0100036 | 2 | |
| RAQ251100083 to RAQ251100084 | M0100036 | 2 | |
| RTQ240500083 to RTQ240500090 | M0100024 | 8 | |
| filter drier | RAQ231000238 to RAQ231000238 | M0800036 | 1 |
| RAQ231100220 to RAQ231100227 | M0800036 | 8 | |
| RAQ250500033 to RAQ250500034 | A2600001 | 2 | |
| RAQ251100083 to RAQ251100084 | A2600001 | 2 | |
| RTQ240500083 to RTQ240500090 | M0800036 | 8 | |
| crankcase heater | ALL SERIALS | M3500217 | 22 |
| Condenser fan | ALL SERIALS | M5100032 | 22 |
| Sight glass | ALL SERIALS | M0700117 | 22 |
| TX valve | ALL SERIALS | M1100122 | 22 |
| 4 way valve coil | ALL SERIALS | M2400064 | 22 |
| Temperature sensor | ALL SERIALS | 318651 | 22 |
| MCX microprocessor | ALL SERIALS | 325974 | 22 |
| Main display | ALL SERIALS | 316829A | 22 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| EC fans/Blower | M017-A1000-0024 | A3100365 | RAQ250500033 |
| EC fans/Blower | A3100365 | M017-A1000-0024 | RTQ240500083 |
| HP switches | 315457 | A7500019 | RAQ250500033 |
| HP switches | A7500019 | 315457 | RTQ240500083 |
| LP switches | 315448 | A7500020 | RAQ250500033 |
| LP switches | A7500020 | 315448 | RTQ240500083 |
| compressors | M0100024 | M0100036 | RAQ250500033 |
| compressors | M0100036 | M0100024 | RTQ240500083 |
| filter drier | M0800036 | A2600001 | RAQ250500033 |
| filter drier | A2600001 | M0800036 | RTQ240500083 |
RAQ/K/WP/EC 118
Model production span: NEW to RTQ240500082. Changed components in this model: Display, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| Display | Pre-serial units | 316829A | 1 |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| RAQ22090006 to RAQ22090009 | 316829 | 4 | |
| RAQ2302001 to RAQ2302004 | 316829 | 4 | |
| RAQ231000140 to RAQ231000140 | 316829A | 1 | |
| RAQ231000175 to RAQ231000183 | 316829A | 9 | |
| RAQ231000240 to RAQ231000240 | 316829A | 1 | |
| RAQ250100013 to RAQ250100013 | 316829A | 1 | |
| RAQ250500029 to RAQ250500032 | 316829A | 4 | |
| RAQ251100080 to RAQ251100080 | 316829A | 1 | |
| RAQ251100085 to RAQ251100086 | 316829A | 2 | |
| RTQ240500075 to RTQ240500082 | 316829A | 8 | |
| EC fans/Blower | Pre-serial units | A3100365 | 1 |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| RAQ22090006 to RAQ22090009 | M017-A1000-0021 | 4 | |
| RAQ2302001 to RAQ2302004 | 000.16.007 | 4 | |
| RAQ231000140 to RAQ231000140 | M017-A1000-0020 | 1 | |
| RAQ231000175 to RAQ231000183 | M017-A1000-0020 | 9 | |
| RAQ231000240 to RAQ231000240 | M017-A1000-0020 | 1 | |
| RAQ250100013 to RAQ250100013 | A3100365 | 1 | |
| RAQ250500029 to RAQ250500032 | A3100365 | 4 | |
| RAQ251100080 to RAQ251100080 | A3100365 | 1 | |
| RAQ251100085 to RAQ251100086 | A3100365 | 2 | |
| RTQ240500075 to RTQ240500082 | M017-A1000-0020 | 8 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| RAQ22090006 to RAQ22090009 | 315457 | 4 | |
| RAQ2302001 to RAQ2302004 | 315457 | 4 | |
| RAQ231000140 to RAQ231000140 | 315457 | 1 | |
| RAQ231000175 to RAQ231000183 | 315457 | 9 | |
| RAQ231000240 to RAQ231000240 | 315457 | 1 | |
| RAQ250100013 to RAQ250100013 | A7500019 | 1 | |
| RAQ250500029 to RAQ250500032 | A7500019 | 4 | |
| RAQ251100080 to RAQ251100080 | A7500019 | 1 | |
| RAQ251100085 to RAQ251100086 | A7500019 | 2 | |
| RTQ240500075 to RTQ240500082 | 315457 | 8 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| RAQ22090006 to RAQ22090009 | 327217 | 4 | |
| RAQ2302001 to RAQ2302004 | 327217 | 4 | |
| RAQ231000140 to RAQ231000140 | 327217 | 1 | |
| RAQ231000175 to RAQ231000183 | 327217 | 9 | |
| RAQ231000240 to RAQ231000240 | 327217 | 1 | |
| RAQ250100013 to RAQ250100013 | M3500837 | 1 | |
| RAQ250500029 to RAQ250500032 | M3500837 | 4 | |
| RAQ251100080 to RAQ251100080 | M3500837 | 1 | |
| RAQ251100085 to RAQ251100086 | M3500837 | 2 | |
| RTQ240500075 to RTQ240500082 | M3500837 | 8 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| RAQ22090006 to RAQ22090009 | 315448 | 4 | |
| RAQ2302001 to RAQ2302004 | 315448 | 4 | |
| RAQ231000140 to RAQ231000140 | 315448 | 1 | |
| RAQ231000175 to RAQ231000183 | 315448 | 9 | |
| RAQ231000240 to RAQ231000240 | 315448 | 1 | |
| RAQ250100013 to RAQ250100013 | A7500020 | 1 | |
| RAQ250500029 to RAQ250500032 | A7500020 | 4 | |
| RAQ251100080 to RAQ251100080 | A7500020 | 1 | |
| RAQ251100085 to RAQ251100086 | A7500020 | 2 | |
| RTQ240500075 to RTQ240500082 | 315448 | 8 | |
| compressors | Pre-serial units | M0100038 | 1 |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| Pre-serial units | M0100038 | 1 | |
| RAQ22090006 to RAQ22090009 | M0100026 | 4 | |
| RAQ2302001 to RAQ2302004 | M0100026 | 4 | |
| RAQ231000140 to RAQ231000140 | M0100026 | 1 | |
| RAQ231000175 to RAQ231000183 | M0100026 | 9 | |
| RAQ231000240 to RAQ231000240 | M0100026 | 1 | |
| RAQ250100013 to RAQ250100013 | M0100038 | 1 | |
| RAQ250500029 to RAQ250500032 | M0100038 | 4 | |
| RAQ251100080 to RAQ251100080 | M0100038 | 1 | |
| RAQ251100085 to RAQ251100086 | M0100038 | 2 | |
| RTQ240500075 to RTQ240500082 | M0100026 | 8 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| RAQ22090006 to RAQ22090009 | M0800036 | 4 | |
| RAQ2302001 to RAQ2302004 | M0800036 | 4 | |
| RAQ231000140 to RAQ231000140 | M0800036 | 1 | |
| RAQ231000175 to RAQ231000183 | M0800036 | 9 | |
| RAQ231000240 to RAQ231000240 | M0800036 | 1 | |
| RAQ250100013 to RAQ250100013 | A2600001 | 1 | |
| RAQ250500029 to RAQ250500032 | A2600001 | 4 | |
| RAQ251100080 to RAQ251100080 | A2600001 | 1 | |
| RAQ251100085 to RAQ251100086 | A2600001 | 2 | |
| RTQ240500075 to RTQ240500082 | M0800036 | 8 | |
| crankcase heater | ALL SERIALS | M3500217 | 44 |
| Condenser fan | ALL SERIALS | M5100032 | 44 |
| Sight glass | ALL SERIALS | M0700117 | 44 |
| TX valve | ALL SERIALS | M1100122 | 44 |
| 4 way valve coil | ALL SERIALS | M2400064 | 44 |
| Temperature sensor | ALL SERIALS | 318651 | 44 |
| MCX microprocessor | ALL SERIALS | 325974 | 44 |
| Main display | ALL SERIALS | 316829A | 44 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| Display | 316829A | 316829 | RAQ2302001 |
| Display | 316829 | 316829A | RAQ231000140 |
| EC fans/Blower | 000.16.007 | M017-A1000-0021 | RAQ22090006 |
| EC fans/Blower | A3100365 | 000.16.007 | RAQ2302001 |
| EC fans/Blower | M017-A1000-0021 | M017-A1000-0020 | RAQ231000140 |
| EC fans/Blower | M017-A1000-0020 | A3100365 | RAQ250100013 |
| EC fans/Blower | A3100365 | M017-A1000-0020 | RTQ240500075 |
| HP switches | A7500019 | 315457 | RAQ2302001 |
| HP switches | 315457 | A7500019 | RAQ250100013 |
| HP switches | A7500019 | 315457 | RTQ240500075 |
| HP transducers | M3500837 | 327217 | RAQ2302001 |
| HP transducers | 327217 | M3500837 | RAQ250100013 |
| LP switches | A7500020 | 315448 | RAQ2302001 |
| LP switches | 315448 | A7500020 | RAQ250100013 |
| LP switches | A7500020 | 315448 | RTQ240500075 |
| compressors | M0100038 | M0100026 | RAQ2302001 |
| compressors | M0100026 | M0100038 | RAQ250100013 |
| compressors | M0100038 | M0100026 | RTQ240500075 |
| filter drier | A2600001 | M0800036 | RAQ2302001 |
| filter drier | M0800036 | A2600001 | RAQ250100013 |
| filter drier | A2600001 | M0800036 | RTQ240500075 |
RAQ/K/WP/EC 15
Model production span: RAQ240200037 to RTQ240500102. Changed components in this model: 4 way valve, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| 4 way valve | RAQ240200037 to RAQ240200037 | M2400067 | 1 |
| RAQ250300016 to RAQ250300019 | M2400066 | 4 | |
| RAQ250500049 to RAQ250500052 | M2400066 | 4 | |
| RTQ240500102 to RTQ240500102 | M2400066 | 1 | |
| EC fans/Blower | RAQ240200037 to RAQ240200037 | M017-A1000-0009 | 1 |
| RAQ250300016 to RAQ250300019 | A3100364 | 4 | |
| RAQ250500049 to RAQ250500052 | A3100364 | 4 | |
| RTQ240500102 to RTQ240500102 | M017-A1000-0009 | 1 | |
| HP switches | RAQ240200037 to RAQ240200037 | 315457 | 1 |
| RAQ250300016 to RAQ250300019 | A7500019 | 4 | |
| RAQ250500049 to RAQ250500052 | A7500019 | 4 | |
| RTQ240500102 to RTQ240500102 | 315457 | 1 | |
| HP transducers | RAQ240200037 to RAQ240200037 | 327217 | 1 |
| RAQ250300016 to RAQ250300019 | M3500837 | 4 | |
| RAQ250500049 to RAQ250500052 | M3500837 | 4 | |
| RTQ240500102 to RTQ240500102 | M3500837 | 1 | |
| LP switches | RAQ240200037 to RAQ240200037 | 315448 | 1 |
| RAQ250300016 to RAQ250300019 | A7500020 | 4 | |
| RAQ250500049 to RAQ250500052 | A7500020 | 4 | |
| RTQ240500102 to RTQ240500102 | 315448 | 1 | |
| compressors | RAQ240200037 to RAQ240200037 | M0100032 | 1 |
| RAQ250300016 to RAQ250300019 | M0100032A | 4 | |
| RAQ250500049 to RAQ250500052 | M0100032A | 4 | |
| RTQ240500102 to RTQ240500102 | M0100032 | 1 | |
| filter drier | RAQ240200037 to RAQ240200037 | M0800036 | 1 |
| RAQ250300016 to RAQ250300019 | A2600001 | 4 | |
| RAQ250500049 to RAQ250500052 | A2600001 | 4 | |
| RTQ240500102 to RTQ240500102 | M0800036 | 1 | |
| crankcase heater | ALL SERIALS | M3500793 | 11 |
| Condenser fan | ALL SERIALS | M5100030 | 11 |
| Sight glass | ALL SERIALS | M0700117 | 11 |
| TX valve | ALL SERIALS | M1100093 | 11 |
| 4 way valve coil | ALL SERIALS | M2400064 | 11 |
| Temperature sensor | ALL SERIALS | 318651 | 11 |
| MCX microprocessor | ALL SERIALS | 325974 | 11 |
| Main display | ALL SERIALS | 316829A | 11 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| 4 way valve | M2400067 | M2400066 | RAQ250300016 |
| EC fans/Blower | M017-A1000-0009 | A3100364 | RAQ250300016 |
| EC fans/Blower | A3100364 | M017-A1000-0009 | RTQ240500102 |
| HP switches | 315457 | A7500019 | RAQ250300016 |
| HP switches | A7500019 | 315457 | RTQ240500102 |
| HP transducers | 327217 | M3500837 | RAQ250300016 |
| LP switches | 315448 | A7500020 | RAQ250300016 |
| LP switches | A7500020 | 315448 | RTQ240500102 |
| compressors | M0100032 | M0100032A | RAQ250300016 |
| compressors | M0100032A | M0100032 | RTQ240500102 |
| filter drier | M0800036 | A2600001 | RAQ250300016 |
| filter drier | A2600001 | M0800036 | RTQ240500102 |
RAQ/K/WP/EC 17
Model production span: RAQ240200035 to RTQ240500107. Changed components in this model: 4 way valve, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| 4 way valve | RAQ240200035 to RAQ240200036 | M2400067 | 2 |
| RAQ250500044 to RAQ250500048 | 328126 | 5 | |
| RTQ240500103 to RTQ240500107 | M2400067 | 5 | |
| EC fans/Blower | RAQ240200035 to RAQ240200036 | M017-A1000-0009 | 2 |
| RAQ250500044 to RAQ250500048 | A3100364 | 5 | |
| RTQ240500103 to RTQ240500107 | M017-A1000-0009 | 5 | |
| HP switches | RAQ240200035 to RAQ240200036 | 315457 | 2 |
| RAQ250500044 to RAQ250500048 | A7500019 | 5 | |
| RTQ240500103 to RTQ240500107 | 315457 | 5 | |
| HP transducers | RAQ240200035 to RAQ240200036 | 327217 | 2 |
| RAQ250500044 to RAQ250500048 | M3500837 | 5 | |
| RTQ240500103 to RTQ240500107 | M3500837 | 5 | |
| LP switches | RAQ240200035 to RAQ240200036 | 315448 | 2 |
| RAQ250500044 to RAQ250500048 | A7500020 | 5 | |
| RTQ240500103 to RTQ240500107 | 315448 | 5 | |
| compressors | RAQ240200035 to RAQ240200036 | M0100031 | 2 |
| RAQ250500044 to RAQ250500048 | A7A00008 | 5 | |
| RTQ240500103 to RTQ240500107 | M0100031 | 5 | |
| filter drier | RAQ240200035 to RAQ240200036 | M0800036 | 2 |
| RAQ250500044 to RAQ250500048 | A2600001 | 5 | |
| RTQ240500103 to RTQ240500107 | M0800036 | 5 | |
| crankcase heater | ALL SERIALS | M3500793 | 13 |
| Condenser fan | ALL SERIALS | M5100030 | 13 |
| Sight glass | ALL SERIALS | M0700117 | 13 |
| TX valve | ALL SERIALS | M1100093 | 13 |
| 4 way valve coil | ALL SERIALS | M2400064 | 13 |
| Temperature sensor | ALL SERIALS | 318651 | 13 |
| MCX microprocessor | ALL SERIALS | 325974 | 13 |
| Main display | ALL SERIALS | 316829A | 13 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| 4 way valve | M2400067 | 328126 | RAQ250500044 |
| 4 way valve | 328126 | M2400067 | RTQ240500103 |
| EC fans/Blower | M017-A1000-0009 | A3100364 | RAQ250500044 |
| EC fans/Blower | A3100364 | M017-A1000-0009 | RTQ240500103 |
| HP switches | 315457 | A7500019 | RAQ250500044 |
| HP switches | A7500019 | 315457 | RTQ240500103 |
| HP transducers | 327217 | M3500837 | RAQ250500044 |
| LP switches | 315448 | A7500020 | RAQ250500044 |
| LP switches | A7500020 | 315448 | RTQ240500103 |
| compressors | M0100031 | A7A00008 | RAQ250500044 |
| compressors | A7A00008 | M0100031 | RTQ240500103 |
| filter drier | M0800036 | A2600001 | RAQ250500044 |
| filter drier | A2600001 | M0800036 | RTQ240500103 |
RAQ/K/WP/EC 224
Model production span: NEW to RTQ240500115. Changed components in this model: Display, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| Display | Pre-serial units | 316829A | 1 |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| RAQ220900010 to RAQ220900011 | 316829 | 2 | |
| RAQ220900013 to RAQ220900013 | 316829 | 1 | |
| RAQ220900017 to RAQ220900017 | 316829 | 1 | |
| RAQ2301001 to RAQ2301002 | 316829 | 2 | |
| RAQ2302005 to RAQ2302009 | 316829 | 5 | |
| RAQ231000141 to RAQ231000141 | 316829A | 1 | |
| RAQ231100228 to RAQ231100232 | 316829A | 5 | |
| RAQ240100022 to RAQ240100028 | 316829A | 7 | |
| RAQ251100087 to RAQ251100088 | 316829A | 2 | |
| RTQ240500108 to RTQ240500115 | 316829A | 8 | |
| EC fans/Blower | Pre-serial units | A3100365 | 1 |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| Pre-serial units | A3100365 | 1 | |
| RAQ220900010 to RAQ220900011 | M017-A1000-0004 | 2 | |
| RAQ220900013 to RAQ220900013 | M017-A1000-0004 | 1 | |
| RAQ220900017 to RAQ220900017 | M017-A1000-0004 | 1 | |
| RAQ2301001 to RAQ2301002 | 000.16.013 | 2 | |
| RAQ2302005 to RAQ2302009 | 000.16.013 | 5 | |
| RAQ231000141 to RAQ231000141 | M017-A1000-0018 | 1 | |
| RAQ231100228 to RAQ231100232 | M017-A1000-0018 | 5 | |
| RAQ240100022 to RAQ240100028 | M017-A1000-0018 | 7 | |
| RAQ251100087 to RAQ251100088 | A3100365 | 2 | |
| RTQ240500108 to RTQ240500115 | M017-A1000-0018 | 8 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| RAQ220900010 to RAQ220900011 | 315457 | 2 | |
| RAQ220900013 to RAQ220900013 | 315457 | 1 | |
| RAQ220900017 to RAQ220900017 | 315457 | 1 | |
| RAQ2301001 to RAQ2301002 | 315457 | 2 | |
| RAQ2302005 to RAQ2302009 | 315457 | 5 | |
| RAQ231000141 to RAQ231000141 | 315457 | 1 | |
| RAQ231100228 to RAQ231100232 | 315457 | 5 | |
| RAQ240100022 to RAQ240100028 | 315457 | 7 | |
| RAQ251100087 to RAQ251100088 | A7500019 | 2 | |
| RTQ240500108 to RTQ240500115 | 315457 | 8 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| RAQ220900010 to RAQ220900011 | 327217 | 2 | |
| RAQ220900013 to RAQ220900013 | 327217 | 1 | |
| RAQ220900017 to RAQ220900017 | 327217 | 1 | |
| RAQ2301001 to RAQ2301002 | 327217 | 2 | |
| RAQ2302005 to RAQ2302009 | 327217 | 5 | |
| RAQ231000141 to RAQ231000141 | 327217 | 1 | |
| RAQ231100228 to RAQ231100232 | 327217 | 5 | |
| RAQ240100022 to RAQ240100028 | 327217 | 7 | |
| RAQ251100087 to RAQ251100088 | M3500837 | 2 | |
| RTQ240500108 to RTQ240500115 | M3500837 | 8 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| RAQ220900010 to RAQ220900011 | 315448 | 2 | |
| RAQ220900013 to RAQ220900013 | 315448 | 1 | |
| RAQ220900017 to RAQ220900017 | 315448 | 1 | |
| RAQ2301001 to RAQ2301002 | 315448 | 2 | |
| RAQ2302005 to RAQ2302009 | 315448 | 5 | |
| RAQ231000141 to RAQ231000141 | 315448 | 1 | |
| RAQ231100228 to RAQ231100232 | 315448 | 5 | |
| RAQ240100022 to RAQ240100028 | 315448 | 7 | |
| RAQ251100087 to RAQ251100088 | A7500020 | 2 | |
| RTQ240500108 to RTQ240500115 | 315448 | 8 | |
| compressors | Pre-serial units | M0100035 | 1 |
| Pre-serial units | M0100035 | 1 | |
| Pre-serial units | M0100035 | 1 | |
| Pre-serial units | M0100035 | 1 | |
| RAQ220900010 to RAQ220900011 | M0100023 | 2 | |
| RAQ220900013 to RAQ220900013 | M0100023 | 1 | |
| RAQ220900017 to RAQ220900017 | M0100023 | 1 | |
| RAQ2301001 to RAQ2301002 | M0100026 | 2 | |
| RAQ2302005 to RAQ2302009 | M0100026 | 5 | |
| RAQ231000141 to RAQ231000141 | M0100026 | 1 | |
| RAQ231100228 to RAQ231100232 | M0100026 | 5 | |
| RAQ240100022 to RAQ240100028 | M0100026 | 7 | |
| RAQ251100087 to RAQ251100088 | M0100035 | 2 | |
| RTQ240500108 to RTQ240500115 | M0100026 | 8 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| RAQ220900010 to RAQ220900011 | M0800036 | 2 | |
| RAQ220900013 to RAQ220900013 | M0800036 | 1 | |
| RAQ220900017 to RAQ220900017 | M0800036 | 1 | |
| RAQ2301001 to RAQ2301002 | M0800036 | 2 | |
| RAQ2302005 to RAQ2302009 | M0800036 | 5 | |
| RAQ231000141 to RAQ231000141 | M0800036 | 1 | |
| RAQ231100228 to RAQ231100232 | M0800036 | 5 | |
| RAQ240100022 to RAQ240100028 | M0800036 | 7 | |
| RAQ251100087 to RAQ251100088 | A2600001 | 2 | |
| RTQ240500108 to RTQ240500115 | M0800036 | 8 | |
| crankcase heater | ALL SERIALS | M3500217 | 39 |
| Condenser fan | ALL SERIALS | M5100032 | 39 |
| Sight glass | ALL SERIALS | M0700117 | 39 |
| TX valve | ALL SERIALS | M1100122 | 39 |
| 4 way valve coil | ALL SERIALS | M2400064 | 39 |
| Temperature sensor | ALL SERIALS | 318651 | 39 |
| MCX microprocessor | ALL SERIALS | 325974 | 39 |
| Main display | ALL SERIALS | 316829A | 39 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| Display | 316829A | 316829 | RAQ2301001 |
| Display | 316829 | 316829A | RAQ231000141 |
| EC fans/Blower | 000.16.013 | M017-A1000-0004 | RAQ220900010 |
| EC fans/Blower | A3100365 | 000.16.013 | RAQ2301001 |
| EC fans/Blower | M017-A1000-0004 | M017-A1000-0018 | RAQ231000141 |
| EC fans/Blower | M017-A1000-0018 | A3100365 | RAQ251100087 |
| EC fans/Blower | A3100365 | M017-A1000-0018 | RTQ240500108 |
| HP switches | A7500019 | 315457 | RAQ2301001 |
| HP switches | 315457 | A7500019 | RAQ251100087 |
| HP switches | A7500019 | 315457 | RTQ240500108 |
| HP transducers | M3500837 | 327217 | RAQ2301001 |
| HP transducers | 327217 | M3500837 | RAQ251100087 |
| LP switches | A7500020 | 315448 | RAQ2301001 |
| LP switches | 315448 | A7500020 | RAQ251100087 |
| LP switches | A7500020 | 315448 | RTQ240500108 |
| compressors | M0100026 | M0100023 | RAQ220900010 |
| compressors | M0100035 | M0100026 | RAQ2301001 |
| compressors | M0100023 | M0100026 | RAQ231000141 |
| compressors | M0100026 | M0100035 | RAQ251100087 |
| compressors | M0100035 | M0100026 | RTQ240500108 |
| filter D | A2600001 | M0800036 | RAQ2301001 |
| filter D | M0800036 | A2600001 | RAQ251100087 |
| filter D | A2600001 | M0800036 | RTQ240500108 |
RAQ/K/WP/EC 230
Model production span: NEW to RTQ240500119. Changed components in this model: Display, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| Display | Pre-serial units | 316829A | 1 |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| Pre-serial units | 316829A | 1 | |
| RAQ220900013 to RAQ220900014 | 316829 | 2 | |
| RAQ23020010 to RAQ23020014 | 316829 | 5 | |
| RAQ231000241 to RAQ231000241 | 316829A | 1 | |
| RAQ231100233 to RAQ231100236 | 316829A | 4 | |
| RAQ240100009 to RAQ240100014 | 316829A | 6 | |
| RAQ251100089 to RAQ251100090 | 316829A | 2 | |
| RTQ240500116 to RTQ240500119 | 316829A | 4 | |
| EC fans/Blower | Pre-serial units | A3100366 | 1 |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| Pre-serial units | A3100366 | 1 | |
| RAQ220900013 to RAQ220900014 | M017-A1000-0004 | 2 | |
| RAQ23020010 to RAQ23020014 | 000.16.013 | 5 | |
| RAQ231000241 to RAQ231000241 | M017-A1000-0012 | 1 | |
| RAQ231100233 to RAQ231100236 | M017-A1000-0012 | 4 | |
| RAQ240100009 to RAQ240100014 | M017-A1000-0012 | 6 | |
| RAQ251100089 to RAQ251100090 | A3100366 | 2 | |
| RTQ240500116 to RTQ240500119 | M017-A1000-0012 | 4 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| Pre-serial units | A7500019 | 1 | |
| RAQ220900013 to RAQ220900014 | 315457 | 2 | |
| RAQ23020010 to RAQ23020014 | 315457 | 5 | |
| RAQ231000241 to RAQ231000241 | 315457 | 1 | |
| RAQ231100233 to RAQ231100236 | 315457 | 4 | |
| RAQ240100009 to RAQ240100014 | 315457 | 6 | |
| RAQ251100089 to RAQ251100090 | A7500019 | 2 | |
| RTQ240500116 to RTQ240500119 | 315457 | 4 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| Pre-serial units | M3500837 | 1 | |
| RAQ220900013 to RAQ220900014 | 327217 | 2 | |
| RAQ23020010 to RAQ23020014 | 327217 | 5 | |
| RAQ231000241 to RAQ231000241 | 327217 | 1 | |
| RAQ231100233 to RAQ231100236 | 327217 | 4 | |
| RAQ240100009 to RAQ240100014 | 327217 | 6 | |
| RAQ251100089 to RAQ251100090 | M3500837 | 2 | |
| RTQ240500116 to RTQ240500119 | M3500837 | 4 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| Pre-serial units | A7500020 | 1 | |
| RAQ220900013 to RAQ220900014 | 315448 | 2 | |
| RAQ23020010 to RAQ23020014 | 315448 | 5 | |
| RAQ231000241 to RAQ231000241 | 315448 | 1 | |
| RAQ231100233 to RAQ231100236 | 315448 | 4 | |
| RAQ240100009 to RAQ240100014 | 315448 | 6 | |
| RAQ251100089 to RAQ251100090 | A7500020 | 2 | |
| RTQ240500116 to RTQ240500119 | 315448 | 4 | |
| compressors | Pre-serial units | M0100036 | 1 |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| Pre-serial units | M0100036 | 1 | |
| RAQ220900013 to RAQ220900014 | M0100024 | 2 | |
| RAQ23020010 to RAQ23020014 | M0100024 | 5 | |
| RAQ231000241 to RAQ231000241 | M0100024 | 1 | |
| RAQ231100233 to RAQ231100236 | M0100024 | 4 | |
| RAQ240100009 to RAQ240100014 | M0100024 | 6 | |
| RAQ251100089 to RAQ251100090 | M0100036 | 2 | |
| RTQ240500116 to RTQ240500119 | M0100024 | 4 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| Pre-serial units | A2600001 | 1 | |
| RAQ220900013 to RAQ220900014 | M0800036 | 2 | |
| RAQ23020010 to RAQ23020014 | M0800036 | 5 | |
| RAQ231000241 to RAQ231000241 | M0800036 | 1 | |
| RAQ231100233 to RAQ231100236 | M0800036 | 4 | |
| RAQ240100009 to RAQ240100014 | M0800036 | 6 | |
| RAQ251100089 to RAQ251100090 | A2600001 | 2 | |
| RTQ240500116 to RTQ240500119 | M0800036 | 4 | |
| crankcase heater | ALL SERIALS | M3500217 | 39 |
| Condenser fan | ALL SERIALS | M5100032 | 39 |
| Sight glass | ALL SERIALS | M0700117 | 39 |
| TX valve | ALL SERIALS | M1100122 | 39 |
| 4 way valve coil | ALL SERIALS | M2400064 | 39 |
| Temperature sensor | ALL SERIALS | 318651 | 39 |
| MCX microprocessor | ALL SERIALS | 325974 | 39 |
| Main display | ALL SERIALS | 316829A | 39 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| Display | 316829A | 316829 | RAQ23020010 |
| Display | 316829 | 316829A | RAQ231000241 |
| EC fans/Blower | 000.16.013 | M017-A1000-0004 | RAQ220900013 |
| EC fans/Blower | A3100366 | 000.16.013 | RAQ23020010 |
| EC fans/Blower | M017-A1000-0004 | M017-A1000-0012 | RAQ231000241 |
| EC fans/Blower | M017-A1000-0012 | A3100366 | RAQ251100089 |
| EC fans/Blower | A3100366 | M017-A1000-0012 | RTQ240500116 |
| HP switches | A7500019 | 315457 | RAQ23020010 |
| HP switches | 315457 | A7500019 | RAQ251100089 |
| HP switches | A7500019 | 315457 | RTQ240500116 |
| HP transducers | M3500837 | 327217 | RAQ23020010 |
| HP transducers | 327217 | M3500837 | RAQ251100089 |
| LP switches | A7500020 | 315448 | RAQ23020010 |
| LP switches | 315448 | A7500020 | RAQ251100089 |
| LP switches | A7500020 | 315448 | RTQ240500116 |
| compressors | M0100036 | M0100024 | RAQ23020010 |
| compressors | M0100024 | M0100036 | RAQ251100089 |
| compressors | M0100036 | M0100024 | RTQ240500116 |
| filter drier | A2600001 | M0800036 | RAQ23020010 |
| filter drier | M0800036 | A2600001 | RAQ251100089 |
| filter drier | A2600001 | M0800036 | RTQ240500116 |
RAQ/K/WP/EC 236
Model production span: NEW to RTQ240500123. Changed components in this model: Display, EC fans/Blower, HP switches, HP transducers, LP switches, compressors, filter D.
| Component | Serial range | Part number | Units |
|---|---|---|---|
| Display | Pre-serial units | 316829A | 1 |
| Pre-serial units | 316829A | 1 | |
| RAQ220900015 to RAQ220900016 | 316829 | 2 | |
| RAQ2301003 to RAQ2301004 | 316829 | 2 | |
| RAQ23020015 to RAQ23020018 | 316829 | 4 | |
| RAQ231200253 to RAQ231200253 | 316829A | 1 | |
| RAQ240100015 to RAQ240100021 | 316829A | 7 | |
| RAQ250400025 to RAQ250400028 | 316829A | 4 | |
| RAQ250500053 to RAQ250500053 | 316829A | 1 | |
| RAQ251100069 to RAQ251100075 | 316829A | 7 | |
| RAQ251100081 to RAQ251100081 | 316829A | 1 | |
| RAQ251100091 to RAQ251100092 | 316829A | 2 | |
| RTQ240500120 to RTQ240500123 | 316829A | 4 | |
| EC fans/Blower | Pre-serial units | A3100367 | 1 |
| Pre-serial units | A3100367 | 1 | |
| RAQ220900015 to RAQ220900016 | M017-A1000-0019 | 2 | |
| RAQ2301003 to RAQ2301004 | 000.16.015 | 2 | |
| RAQ23020015 to RAQ23020018 | 000.16.015 | 4 | |
| RAQ231200253 to RAQ231200253 | M017-A1000-0025 | 1 | |
| RAQ240100015 to RAQ240100021 | M017-A1000-0025 | 7 | |
| RAQ250400025 to RAQ250400028 | A3100367 | 4 | |
| RAQ250500053 to RAQ250500053 | A3100367 | 1 | |
| RAQ251100069 to RAQ251100075 | A3100367 | 7 | |
| RAQ251100081 to RAQ251100081 | A3100367 | 1 | |
| RAQ251100091 to RAQ251100092 | A3100367 | 2 | |
| RTQ240500120 to RTQ240500123 | M017-A1000-0025 | 4 | |
| HP switches | Pre-serial units | A7500019 | 1 |
| Pre-serial units | A7500019 | 1 | |
| RAQ220900015 to RAQ220900016 | 315457 | 2 | |
| RAQ2301003 to RAQ2301004 | 315457 | 2 | |
| RAQ23020015 to RAQ23020018 | 315457 | 4 | |
| RAQ231200253 to RAQ231200253 | 315457 | 1 | |
| RAQ240100015 to RAQ240100021 | 315457 | 7 | |
| RAQ250400025 to RAQ250400028 | A7500019 | 4 | |
| RAQ250500053 to RAQ250500053 | A7500019 | 1 | |
| RAQ251100069 to RAQ251100075 | A7500019 | 7 | |
| RAQ251100081 to RAQ251100081 | A7500019 | 1 | |
| RAQ251100091 to RAQ251100092 | A7500019 | 2 | |
| RTQ240500120 to RTQ240500123 | 315457 | 4 | |
| HP transducers | Pre-serial units | M3500837 | 1 |
| Pre-serial units | M3500837 | 1 | |
| RAQ220900015 to RAQ220900016 | 327217 | 2 | |
| RAQ2301003 to RAQ2301004 | 327217 | 2 | |
| RAQ23020015 to RAQ23020018 | 327217 | 4 | |
| RAQ231200253 to RAQ231200253 | 327217 | 1 | |
| RAQ240100015 to RAQ240100021 | 327217 | 7 | |
| RAQ250400025 to RAQ250400028 | M3500837 | 4 | |
| RAQ250500053 to RAQ250500053 | M3500837 | 1 | |
| RAQ251100069 to RAQ251100075 | M3500837 | 7 | |
| RAQ251100081 to RAQ251100081 | M3500837 | 1 | |
| RAQ251100091 to RAQ251100092 | M3500837 | 2 | |
| RTQ240500120 to RTQ240500123 | M3500837 | 4 | |
| LP switches | Pre-serial units | A7500020 | 1 |
| Pre-serial units | A7500020 | 1 | |
| RAQ220900015 to RAQ220900016 | 315448 | 2 | |
| RAQ2301003 to RAQ2301004 | 315448 | 2 | |
| RAQ23020015 to RAQ23020018 | 315448 | 4 | |
| RAQ231200253 to RAQ231200253 | 315448 | 1 | |
| RAQ240100015 to RAQ240100021 | 315448 | 7 | |
| RAQ250400025 to RAQ250400028 | A7500020 | 4 | |
| RAQ250500053 to RAQ250500053 | A7500020 | 1 | |
| RAQ251100069 to RAQ251100075 | A7500020 | 7 | |
| RAQ251100081 to RAQ251100081 | A7500020 | 1 | |
| RAQ251100091 to RAQ251100092 | A7500020 | 2 | |
| RTQ240500120 to RTQ240500123 | 315448 | 4 | |
| compressors | Pre-serial units | M0100038 | 1 |
| Pre-serial units | M0100038 | 1 | |
| RAQ220900015 to RAQ220900016 | M0100026 | 2 | |
| RAQ2301003 to RAQ2301004 | M0100026 | 2 | |
| RAQ23020015 to RAQ23020018 | M0100026 | 4 | |
| RAQ231200253 to RAQ231200253 | M0100026 | 1 | |
| RAQ240100015 to RAQ240100021 | M0100026 | 7 | |
| RAQ250400025 to RAQ250400028 | M0100038 | 4 | |
| RAQ250500053 to RAQ250500053 | M0100038 | 1 | |
| RAQ251100069 to RAQ251100075 | M0100038 | 7 | |
| RAQ251100081 to RAQ251100081 | M0100038 | 1 | |
| RAQ251100091 to RAQ251100092 | M0100038 | 2 | |
| RTQ240500120 to RTQ240500123 | M0100026 | 4 | |
| filter drier | Pre-serial units | A2600001 | 1 |
| Pre-serial units | A2600001 | 1 | |
| RAQ220900015 to RAQ220900016 | M0800036 | 2 | |
| RAQ2301003 to RAQ2301004 | M0800036 | 2 | |
| RAQ23020015 to RAQ23020018 | M0800036 | 4 | |
| RAQ231200253 to RAQ231200253 | M0800036 | 1 | |
| RAQ240100015 to RAQ240100021 | M0800036 | 7 | |
| RAQ250400025 to RAQ250400028 | A2600001 | 4 | |
| RAQ250500053 to RAQ250500053 | A2600001 | 1 | |
| RAQ251100069 to RAQ251100075 | A2600001 | 7 | |
| RAQ251100081 to RAQ251100081 | A2600001 | 1 | |
| RAQ251100091 to RAQ251100092 | A2600001 | 2 | |
| RTQ240500120 to RTQ240500123 | M0800036 | 4 | |
| crankcase heater | ALL SERIALS | M3500217 | 38 |
| Condenser fan | ALL SERIALS | M5100032 | 38 |
| Sight glass | ALL SERIALS | M0700117 | 38 |
| TX valve | ALL SERIALS | M1100122 | 38 |
| 4 way valve coil | ALL SERIALS | M2400064 | 38 |
| Temperature sensor | ALL SERIALS | 318651 | 38 |
| MCX microprocessor | ALL SERIALS | 325974 | 38 |
| Main display | ALL SERIALS | 316829A | 38 |
Production change events
| Component | From | To | Effective from serial |
|---|---|---|---|
| Display | 316829A | 316829 | RAQ2301003 |
| Display | 316829 | 316829A | RAQ231200253 |
| EC fans/Blower | 000.16.015 | M017-A1000-0019 | RAQ220900015 |
| EC fans/Blower | A3100367 | 000.16.015 | RAQ2301003 |
| EC fans/Blower | M017-A1000-0019 | M017-A1000-0025 | RAQ231200253 |
| EC fans/Blower | M017-A1000-0025 | A3100367 | RAQ250400025 |
| EC fans/Blower | A3100367 | M017-A1000-0025 | RTQ240500120 |
| HP switches | A7500019 | 315457 | RAQ2301003 |
| HP switches | 315457 | A7500019 | RAQ250400025 |
| HP switches | A7500019 | 315457 | RTQ240500120 |
| HP transducers | M3500837 | 327217 | RAQ2301003 |
| HP transducers | 327217 | M3500837 | RAQ250400025 |
| LP switches | A7500020 | 315448 | RAQ2301003 |
| LP switches | 315448 | A7500020 | RAQ250400025 |
| LP switches | A7500020 | 315448 | RTQ240500120 |
| compressors | M0100038 | M0100026 | RAQ2301003 |
| compressors | M0100026 | M0100038 | RAQ250400025 |
| compressors | M0100038 | M0100026 | RTQ240500120 |
| filter drier | A2600001 | M0800036 | RAQ2301003 |
| filter drier | M0800036 | A2600001 | RAQ250400025 |
| filter drier | A2600001 | M0800036 | RTQ240500120 |

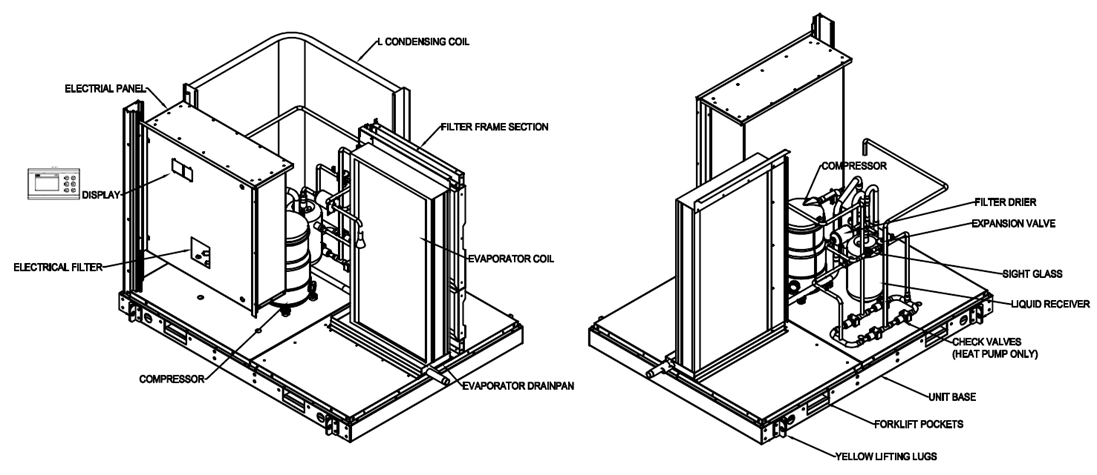

Unit drawing reference

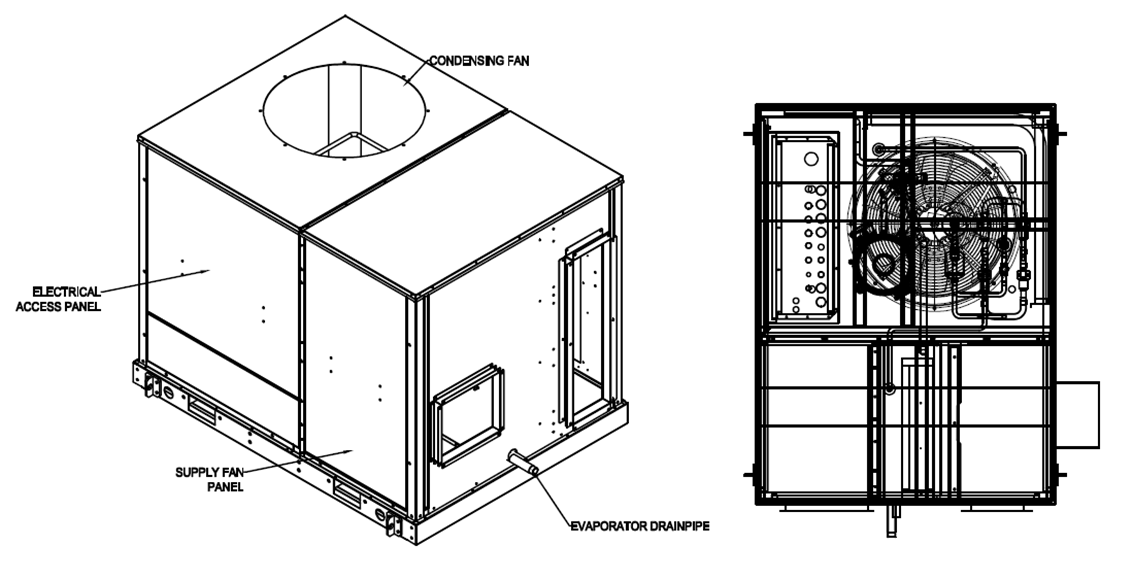

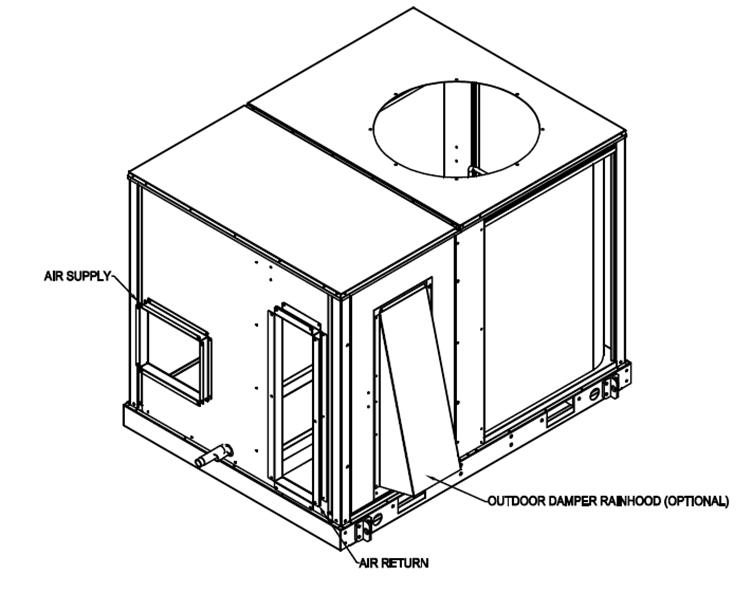

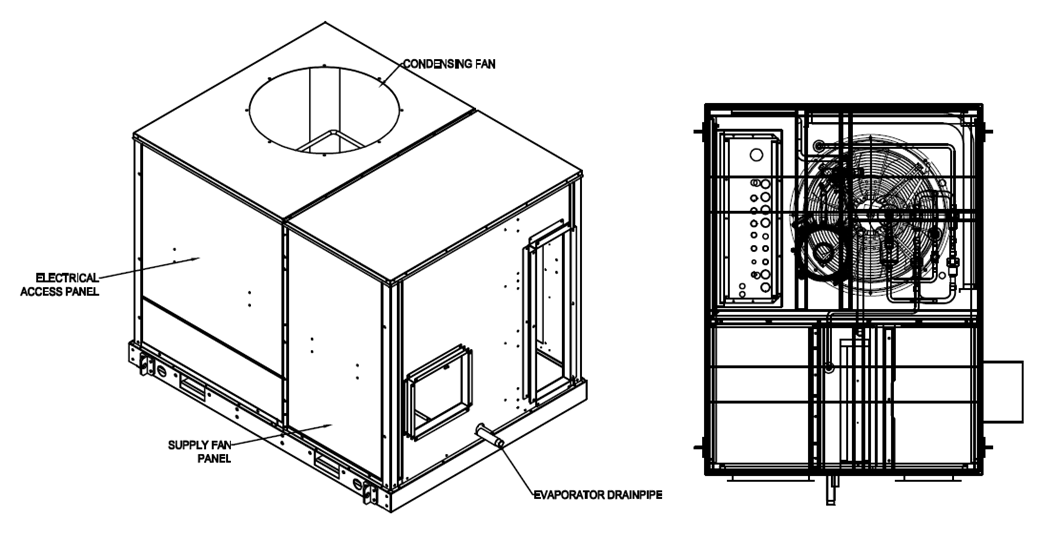

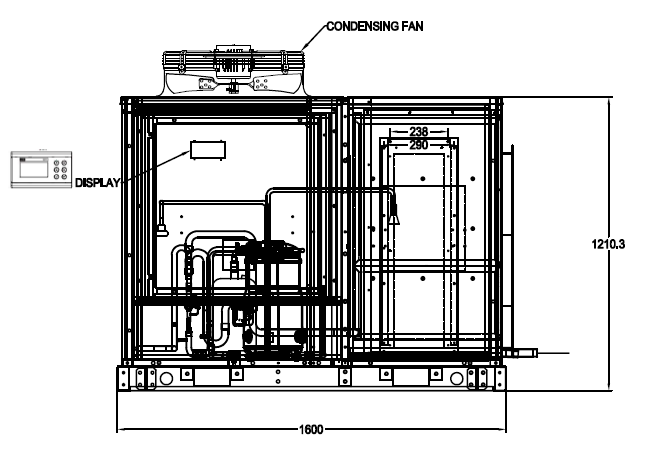

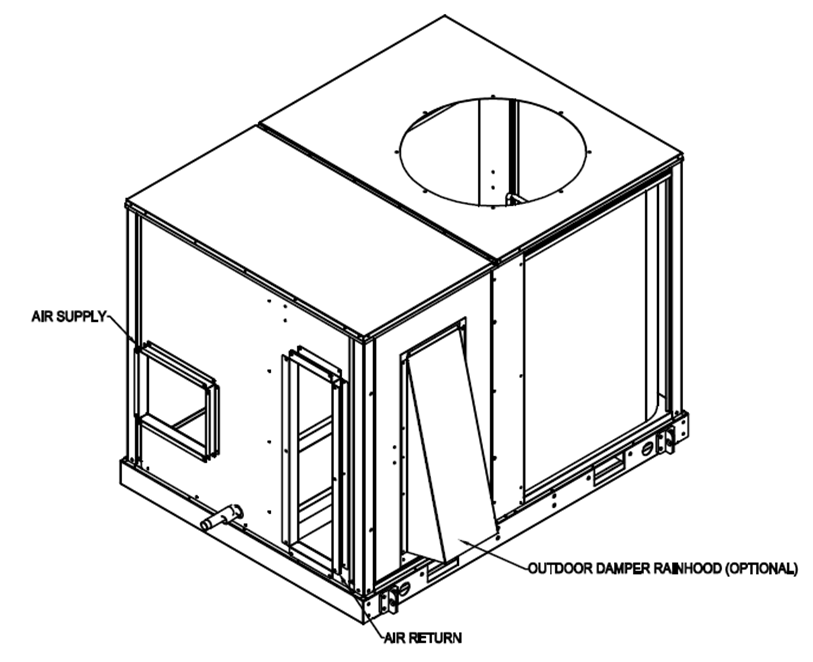

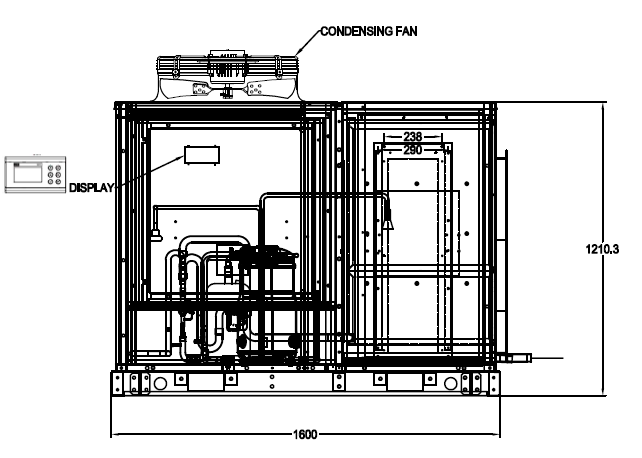

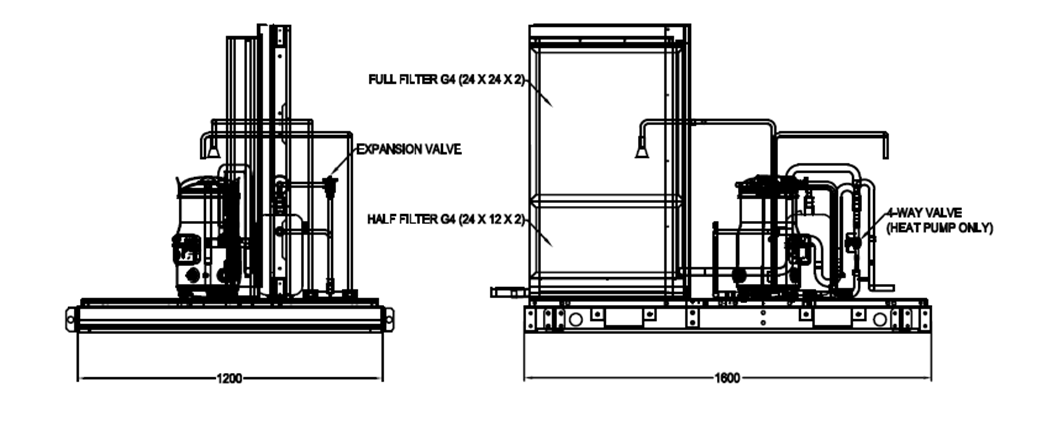

The supplied drawings show representative rooftop package-unit arrangements, including overall dimensions, air-supply and return openings, optional outdoor-air damper rainhood, condenser fan, electrical access, supply-fan access, compressor, evaporator and condenser coils, filters, drain pan and drain connection. Use the model-specific approved drawing before planning access, ductwork, lifting or replacement work.
Drawing caution: The illustrations are general references and cover more than one cabinet size. Do not use a drawing from another capacity as the final dimensional authority.
Internal service and spare-parts reference. Confirm model, full serial number and current stock/supersession status before ordering. Data prepared from the 2023-2026 master list.
