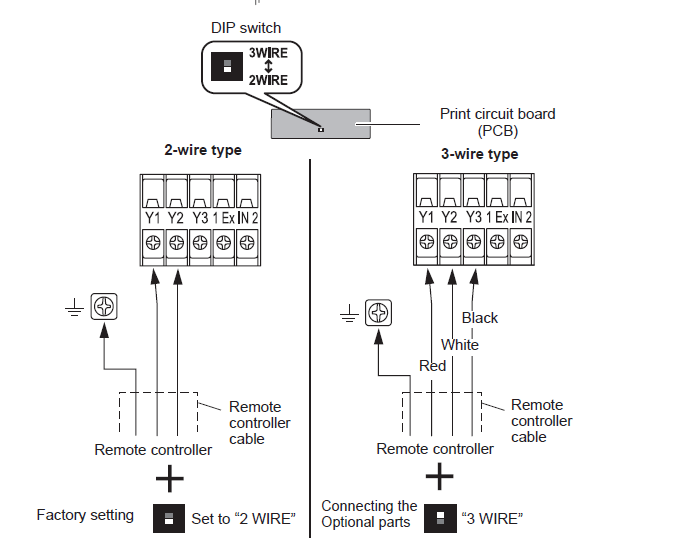

Our Installation instructions advise the switch needs to be made for 2 wire or 3 wire controllers as below

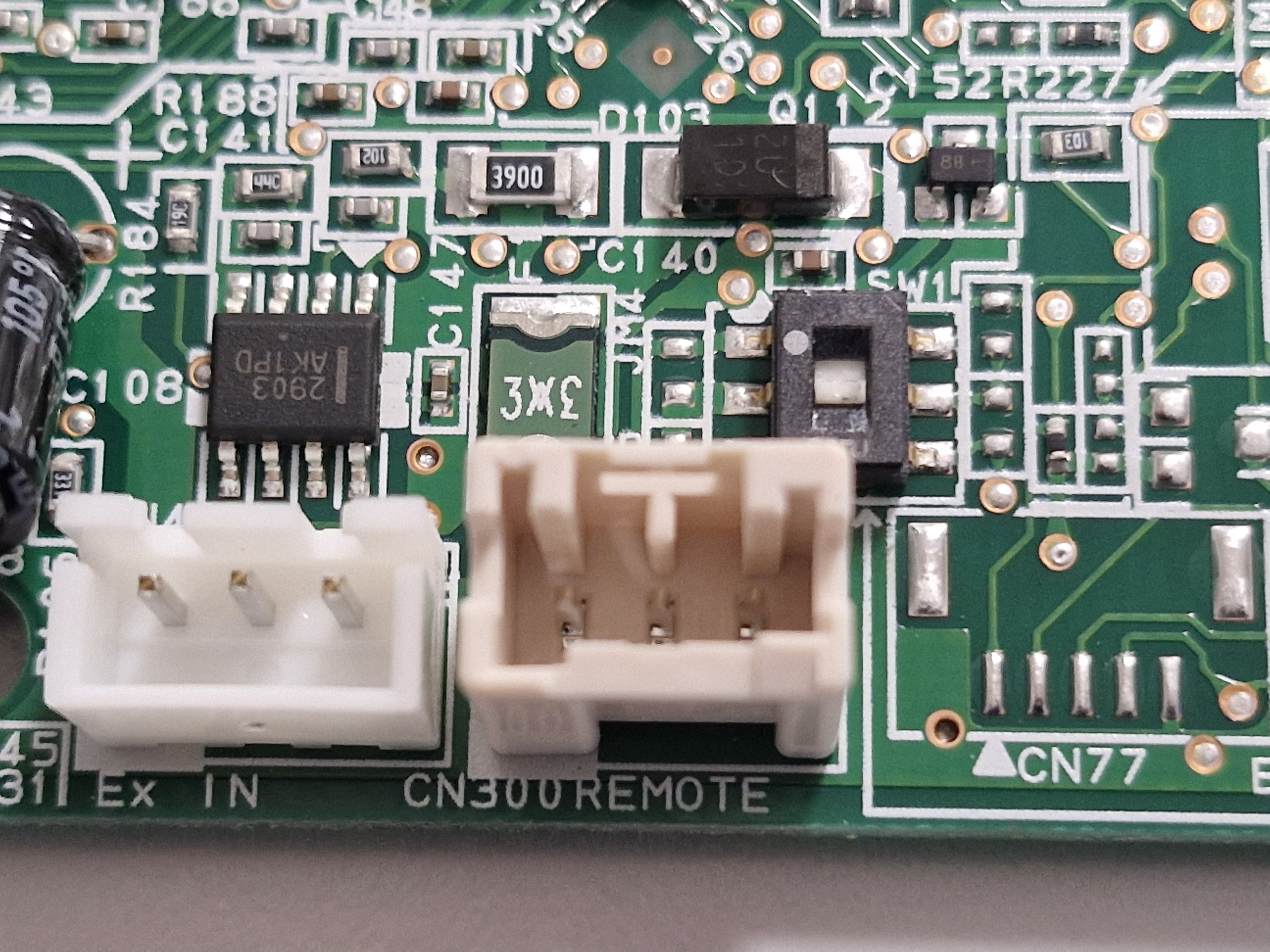

The actual location on the control pcb can be seen here close to where the remote control plug is on the pcb
ARTH Range location of 2-3 wire dipswitch Print
