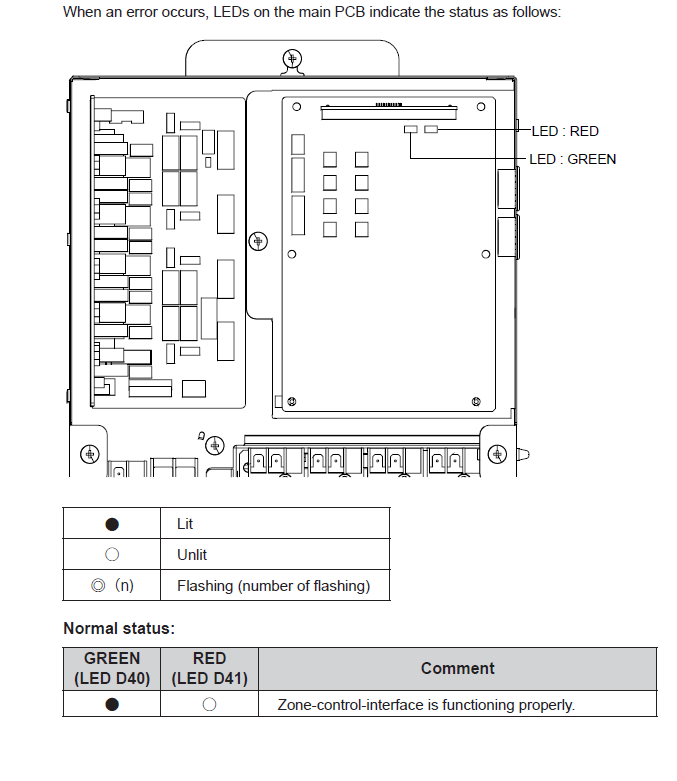

The error codes will be displayed in the zone control box via 2 LED's
This unit has nmore options than the original 3 wire zone boxes

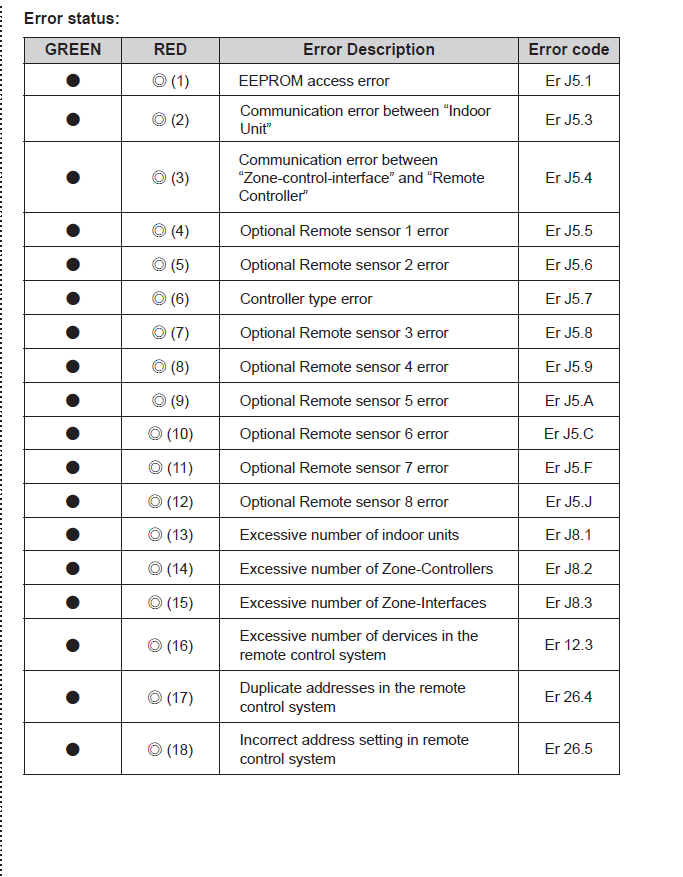

2 wire Zone control error codes UTY-CDPXZC/D Print
Modified on: Tue, 14 Oct, 2025 at 7:45 AM
