VRF Outdoor Unit DIP Switch Factory Settings
This article provides a quick reference to the factory DIP switch settings used on selected AIRSTAGE VRF outdoor units.
Important: These are factory-reference settings only. Before changing any DIP switch, confirm the exact outdoor unit model and follow the applicable installation or service manual. Isolate power before changing physical switch settings unless the applicable manual specifically states otherwise.
How to Read the Charts
| Series | Selection Convention |
|---|---|
| V-II | Black is Selection |
| VR-II | White is Selection |
| V-III | Black is Selection |
| VR-IV | White is Selection |
| J-IIIL - Three Phase | Black is Selection |
| J-III - Single Phase | Black is Selection |
| J-III - Three Phase | Black is Selection |
| J-IVL | White is Selection |

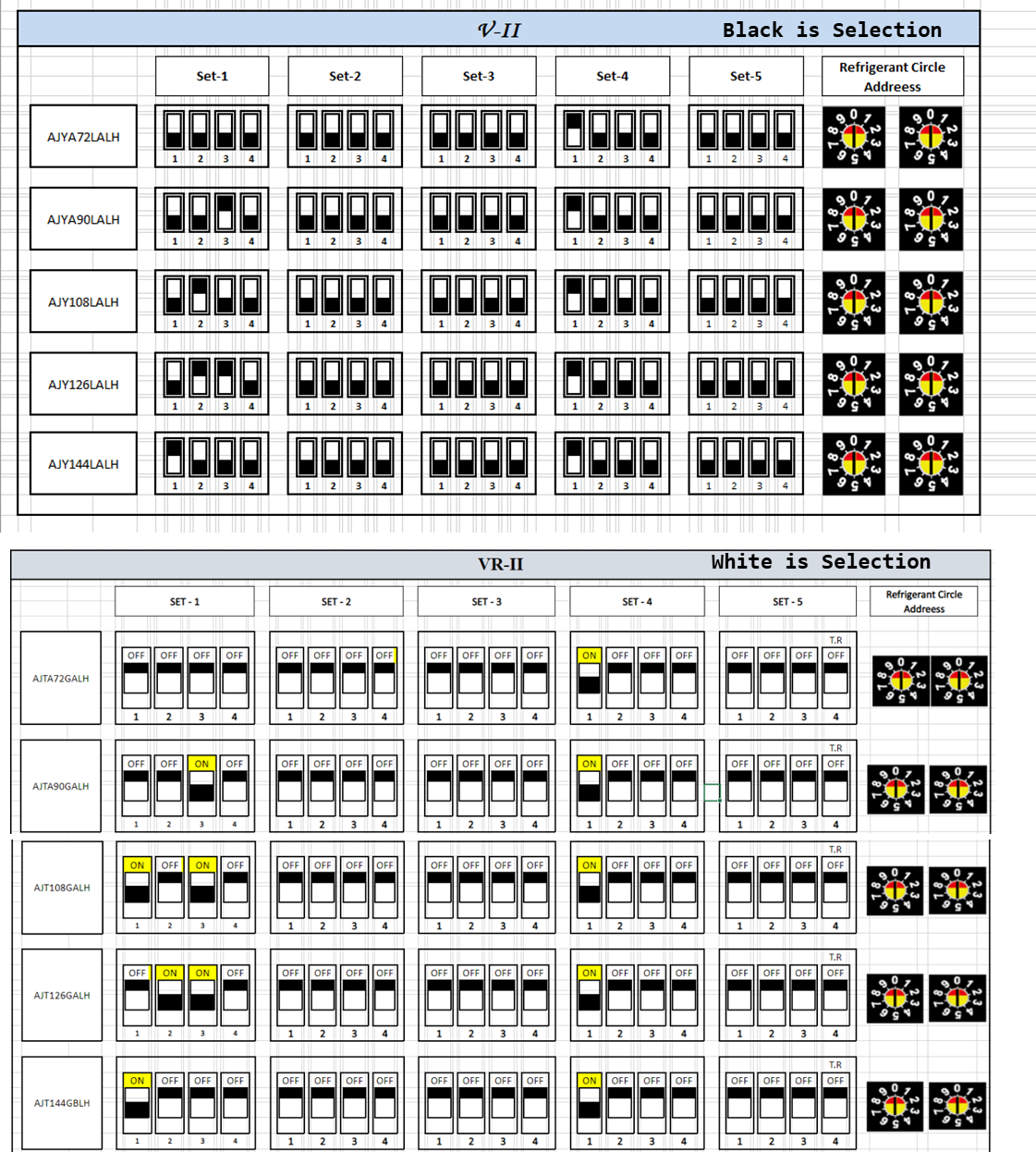

V-II and VR-II
V-II models shown:
- AJYA72LALH
- AJYA90LALH
- AJY108LALH
- AJY126LALH
- AJY144LALH
VR-II models shown:
- AJTA72GALH
- AJTA90GALH
- AJT108GALH
- AJT126GALH
- AJT144GBLH
Reference chart: Insert the supplied V-II / VR-II factory DIP switch chart here after uploading the image to Freshdesk.

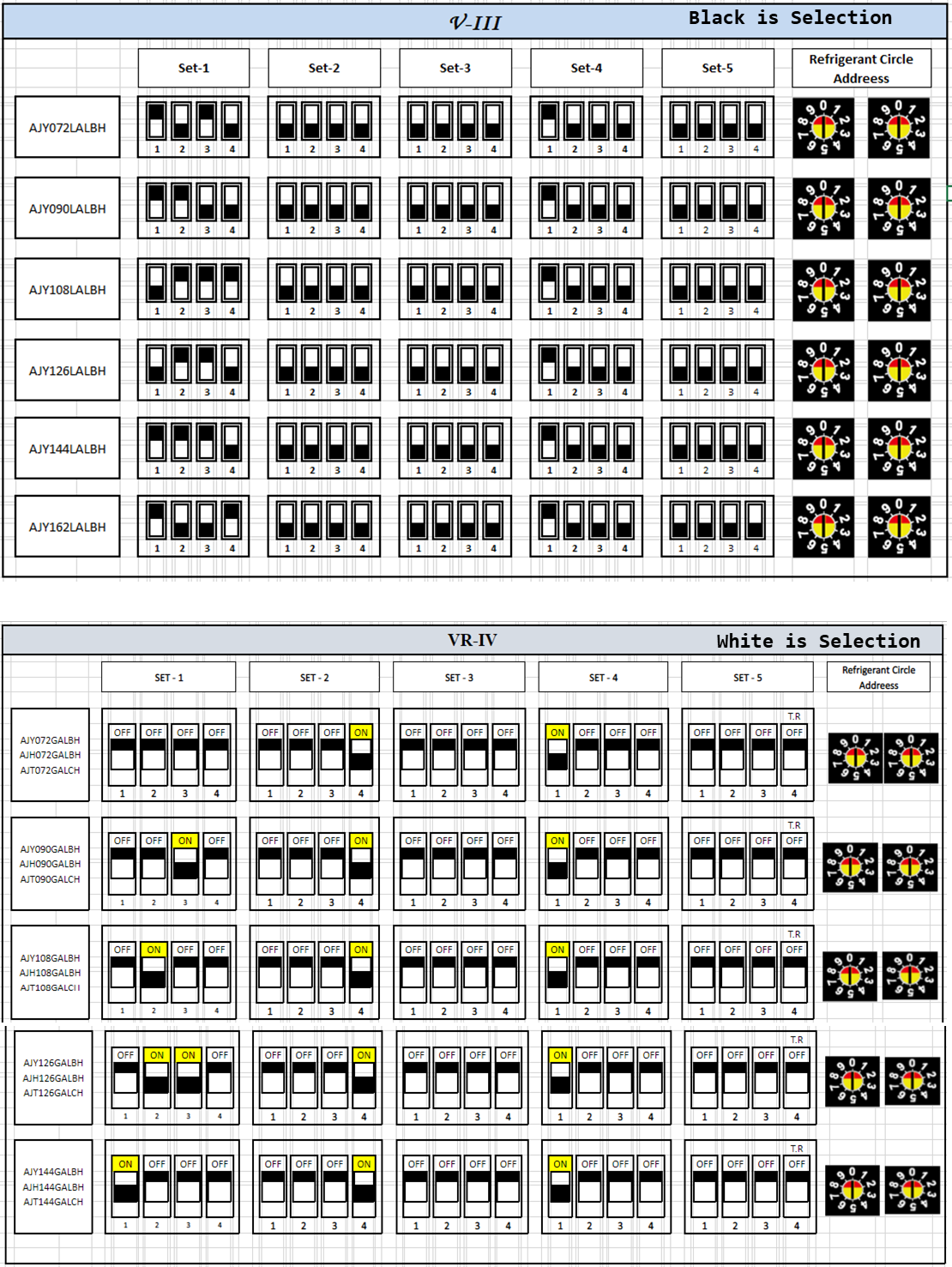

V-III and VR-IV
V-III models shown:
- AJY072LALBH
- AJY090LALBH
- AJY108LALBH
- AJY126LALBH
- AJY144LALBH
- AJY162LALBH
VR-IV model groups shown:
- AJY072GALBH / AJH072GALBH / AJT072GALCH
- AJY090GALBH / AJH090GALBH / AJT090GALCH
- AJY108GALBH / AJH108GALBH / AJT108GALCH
- AJY126GALBH / AJH126GALBH / AJT126GALCH
- AJY144GALBH / AJH144GALBH / AJT144GALCH
Reference chart: Insert the supplied V-III / VR-IV factory DIP switch chart here after uploading the image to Freshdesk.

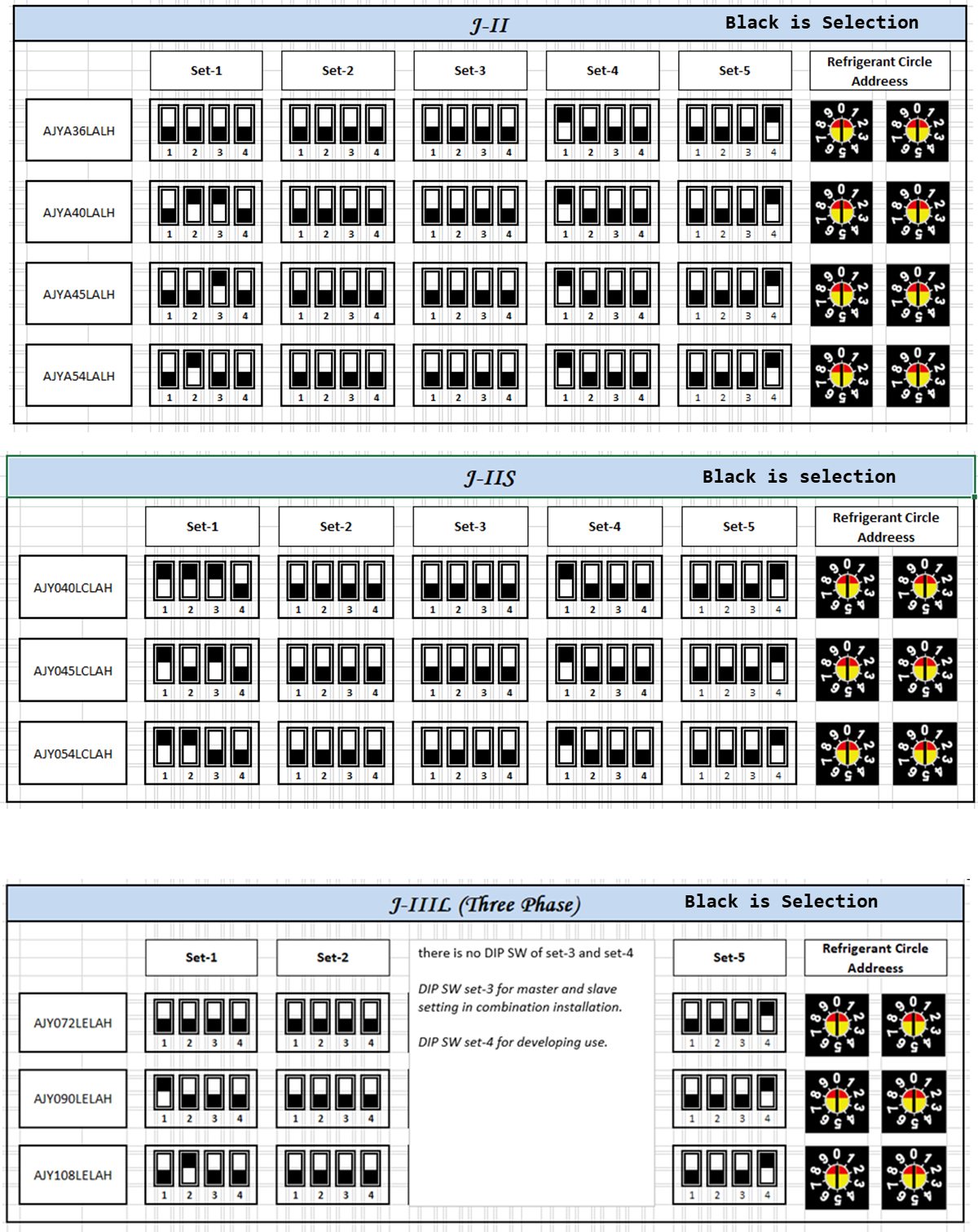

J-IIIL - Three Phase
- AJY072LELAH
- AJY090LELAH
- AJY108LELAH
J-IIIL note: The reference chart states there is no normal model-selection DIP switch setting for Set-3 and Set-4. Set-3 is used for master/slave setting in combination installation, while Set-4 is identified as being for developing use.
Reference chart: Insert the supplied J-IIIL / J-III Single Phase factory DIP switch chart here after uploading the image to Freshdesk.

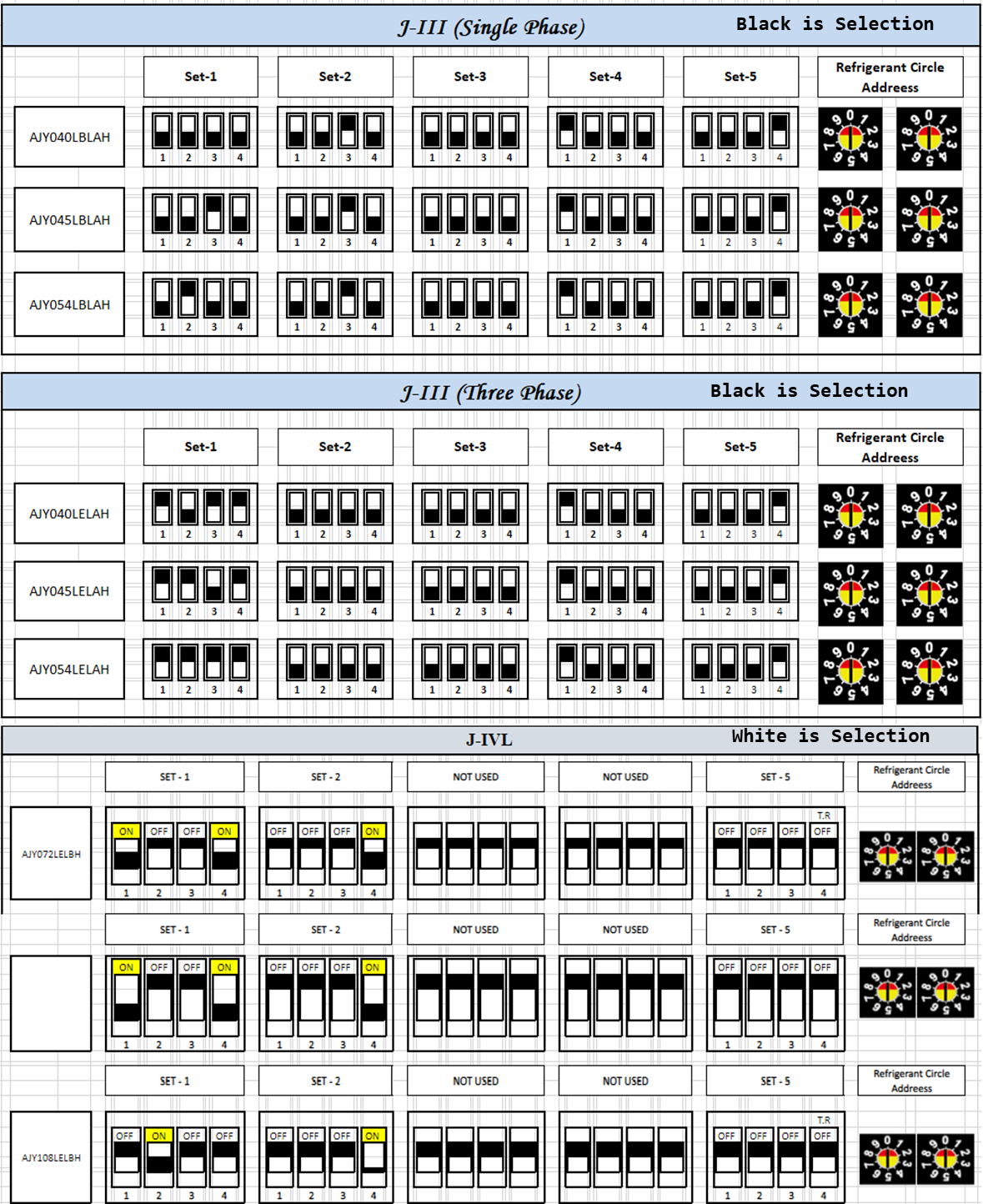

J-III - Single Phase
- AJY040LBLAH
- AJY045LBLAH
- AJY054LBLAH
J-III - Three Phase
- AJY040LELAH
- AJY045LELAH
- AJY054LELAH
J-IVL
The supplied J-IVL chart includes the following model sizes:
- AJY072LELBH
- AJY090LELBH
- AJY108LELBH
J-IVL note: Set-3 and Set-4 are marked NOT USED on the reference chart.
Reference chart: Insert the supplied J-III Three Phase / J-IVL factory DIP switch chart here after uploading the image to Freshdesk.
Refrigerant Circuit Address
The charts also show the factory position of the two rotary switches used for the Refrigerant Circuit Address. These rotary switches are separate from DIP Set-1 to Set-5 and must be set according to the required refrigerant-system address during installation and commissioning.
Before Changing DIP Switches
- Confirm the full outdoor unit model number.
- Identify the correct VRF generation and chart.
- Confirm whether the chart uses black or white as the selected switch position.
- Record the existing DIP and rotary-switch positions before making changes.
- Confirm whether any switch set is reserved for master/slave, commissioning or development functions.
- After adjustment, complete the applicable addressing / commissioning procedure from the service or installation manual.
