Attached is the:


  • Bill of materials
  • Minimum order quantites
  • Models and serials onsite
  • Product drawings




Project Nameunit modalserial number
NEW SYDNEY FISH MARKETCTA 82 (AHU-MZ-01)CTA230700041
NEW SYDNEY FISH MARKETCTA 52 (AHU-MZ-02)CTA230700042
NEW SYDNEY FISH MARKETCTA 105 (AHU-MZ-03)CTA230700043
NEW SYDNEY FISH MARKETCTA 128 (AHU-MR-06)CTA230700044
NEW SYDNEY FISH MARKETCTA 82 (AHU-MZ-06)CTA230700045
NEW SYDNEY FISH MARKETCTA 117 (AHU-LG-06)CTA230700039
NEW SYDNEY FISH MARKETCTA 67 (AHU-LG-10)CTA230700040
NEW SYDNEY FISH MARKETCTA 144 (AHU-MR-01)CTA230700046
NEW SYDNEY FISH MARKETCTA 82 (AHU-MR-02)CTA230700047
NEW SYDNEY FISH MARKETCTA 82 (AHU-MR-03)CTA230700048
NEW SYDNEY FISH MARKETCTA 82 (AHU-MR-04)CTA230700049
NEW SYDNEY FISH MARKETCTA 67 (AHU-MR-05)CTA230700050
NEW SYDNEY FISH MARKETCTA 325 (AHU-LG-04)CTA230700051
NEW SYDNEY FISH MARKETCTA 245 (AHU-LG-05)CTA230700052
NEW SYDNEY FISH MARKETCTA 445 (AHU-LG-08)CTA230700053
NEW SYDNEY FISH MARKETCTA 296 (AHU-LG-11)CTA230700054


Minimum quantities ordered







MINs
AHU part numberDescriptionQTYAU
A3100179EC FAN, EBM, K3G310PH22
A5200354ASSY, COIL, LEFT ,COIL4W10
A5200358ASSY, COIL, LEFT ,COIL4W10
A5200362ASSY, COIL, LEFT ,COIL4W10
A5200366ASSY, COIL, LEFT ,COIL4W10
A5200370ASSY, COIL, LEFT ,COIL4W10
A5200374ASSY, COIL, LEFT ,COIL4W10
A5200378ASSY, COIL, LEFT ,COIL4W,10
A5200382ASSY, COIL, LEFT ,COIL4W,10
A5200386ASSY, COIL, RIGHT ,COIL4W10
A5200390ASSY, COIL, RIGHT ,COIL4W10
A5200394ASSY, COIL, RIGHT 10
A5200398ASSY, COIL, LEFT 10
A5200402ASSY, COIL, LEFT 10
A5200406ASSY, COIL, RIGHT ,COIL4W10
A5200410ASSY, COIL, RIGHT ,COIL4W10
A5200414ASSY, COIL, RIGHT ,COIL4W10
A5200418ASSY, COIL, RIGHT ,COIL4W10
A5200422ASSY, COIL, LEFT ,COIL4W10
A5200426ASSY, COIL, LEFT ,COIL4W10
A5200430ASSY, COIL, LEFT ,COIL4W,10
A5200434ASSY, COIL, LEFT ,COIL4W10
A5200438ASSY, COIL, RIGHT ,COIL4W10
A5200442ASSY, COIL, RIGHT ,COIL4W10
A5200446ASSY, COIL, LEFT 10
A5200450ASSY, COIL, RIGHT 10
A5200454ASSY, COIL, RIGHT 10
A5200458ASSY, COIL, LEFT ,COIL4W20
A5200462ASSY, COIL, LEFT ,COIL4W20
A5200466ASSY, COIL, LEFT ,COIL4W10
A5200470ASSY, COIL, LEFT ,COIL4W10
A5200490ASSY, COIL, RIGHT ,COIL4W10
A5200493ASSY, COIL, RIGHT ,COIL4W10
A3100201EC FAN, EBM, K3G500PB12
A3100202EC FAN, EBM, K3G400AQ32
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)42

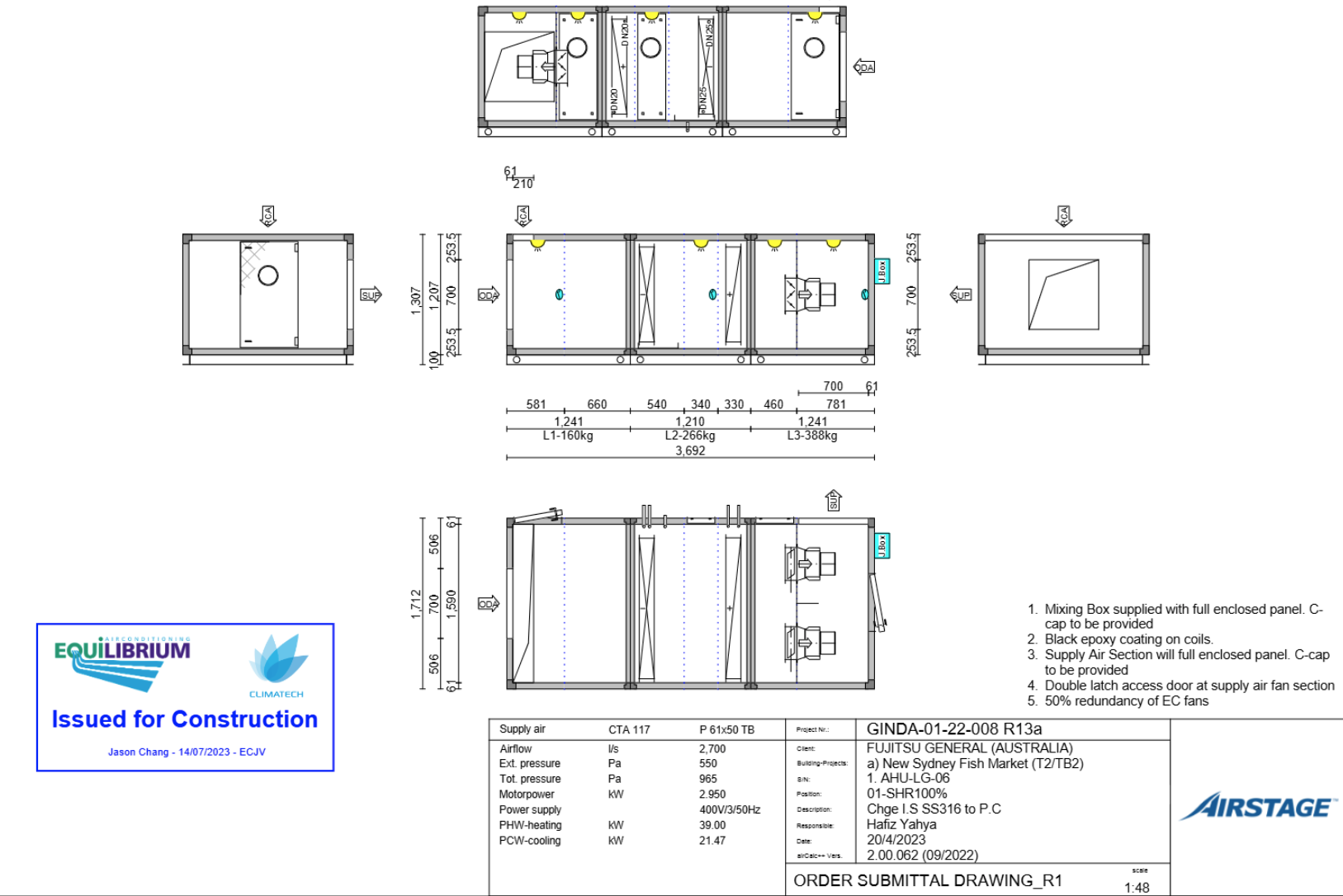

Part numbers CTA117




1. AHU-LG-06
Part NumberDescriptionQty/unit









A5200354ASSY, COIL, LEFT ,COIL4W1
A5200358ASSY, COIL, LEFT ,COIL4W1












A3100179EC FAN, EBM, K3G310PH2









A1200147ALUM, DAMPER, (NON RETURN) 0420H X 0350W2
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA67




2. AHU-LG-10
Part NumberDescriptionQty/unit









A5200362ASSY, COIL, LEFT ,COIL4W1
A5200366ASSY, COIL, LEFT ,COIL4W1












A3100179EC FAN, EBM, K3G310PH2









A1200147ALUM, DAMPER, (NON RETURN) 0420H X 0350W2
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA82



3. AHU-MZ-01
Part NumberDescriptionQty/unit









A5200370ASSY, COIL, LEFT ,COIL4W1
A5200374ASSY, COIL, LEFT ,COIL4W1












A3100179EC FAN, EBM, K3G310PH2









A1200147ALUM, DAMPER, (NON RETURN) 0420H X 0350W2
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA52


4. AHU-MZ-02
Part NumberDescriptionQty/unit









A5200378ASSY, COIL, LEFT ,COIL4W,1
A5200382ASSY, COIL, LEFT ,COIL4W,1












A3100179EC FAN, EBM, K3G310PH1









A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA105



5. AHU-MZ-03
Part NumberDescriptionQty/unit









A5200386ASSY, COIL, RIGHT ,COIL4W1
A5200390ASSY, COIL, RIGHT ,COIL4W1












A3100201EC FAN, EBM, K3G500PB1









A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA128



6. AHU-MR-06 (EX-PROOF MOTOR)
Part NumberDescriptionQty/unit









A5200394ASSY, COIL, RIGHT 1















A3100202EC FAN, EBM, K3G400AQ3









A1200147ALUM, DAMPER, (NON RETURN) 0420H X 0350W3
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)2


Part numbers CTA82



7. AHU-MZ-06
Part NumberDescriptionQty/unit









A5200398ASSY, COIL, LEFT 1
A5200402ASSY, COIL, LEFT 1












A3100201EC FAN, EBM, K3G500PB1









A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4

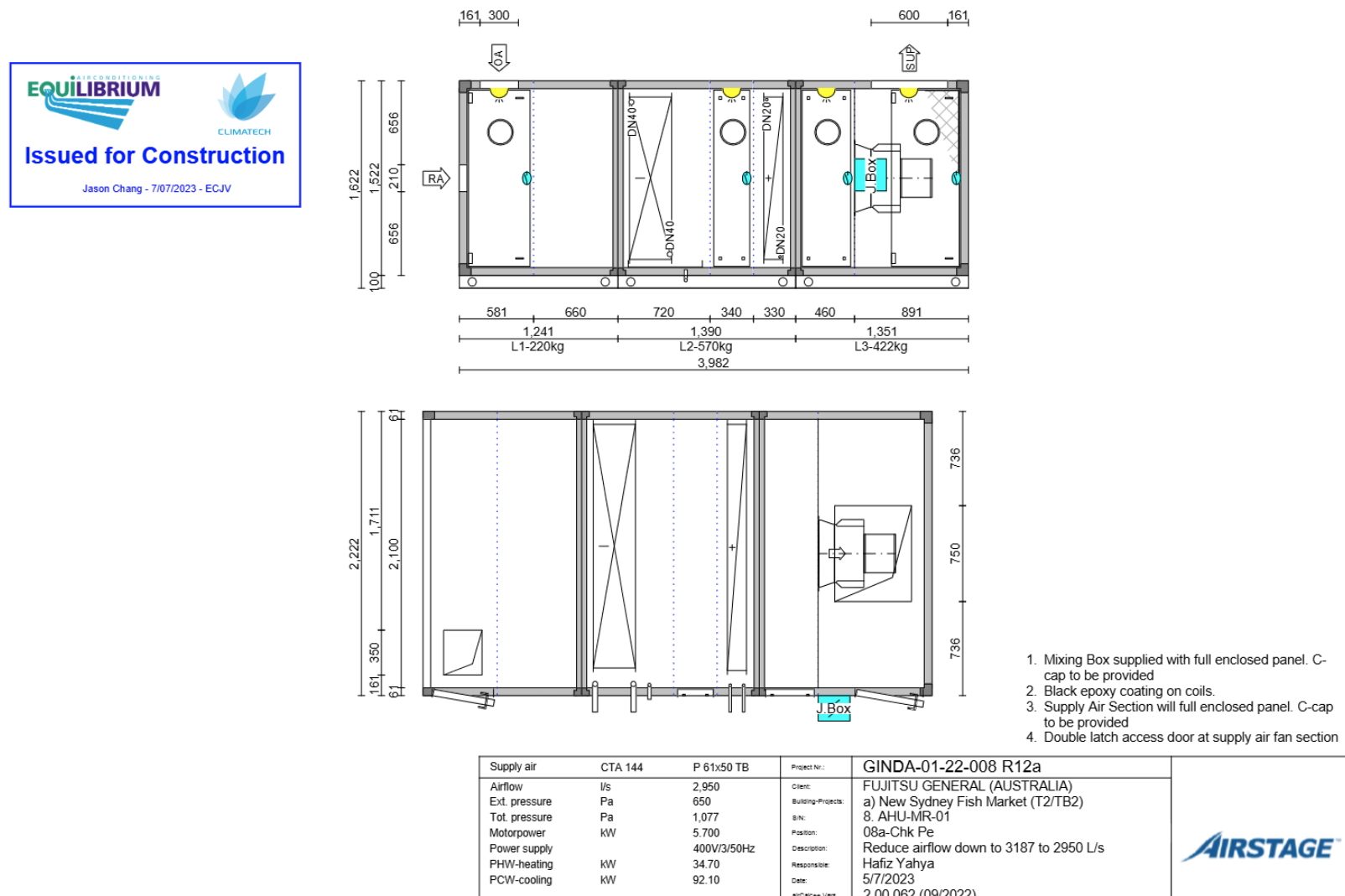

Part numbers CTA144



8. AHU-MR-01
Part NumberDescriptionQty/unit









A5200406ASSY, COIL, RIGHT ,COIL4W1
A5200410ASSY, COIL, RIGHT ,COIL4W1












A3100201EC FAN, EBM, K3G500PB1









A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA82



9. AHU-MR-02
Part NumberDescriptionQty/unit









A5200414ASSY, COIL, RIGHT ,COIL4W1
A5200418ASSY, COIL, RIGHT ,COIL4W1












A3100201EC FAN, EBM, K3G5001









A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)3

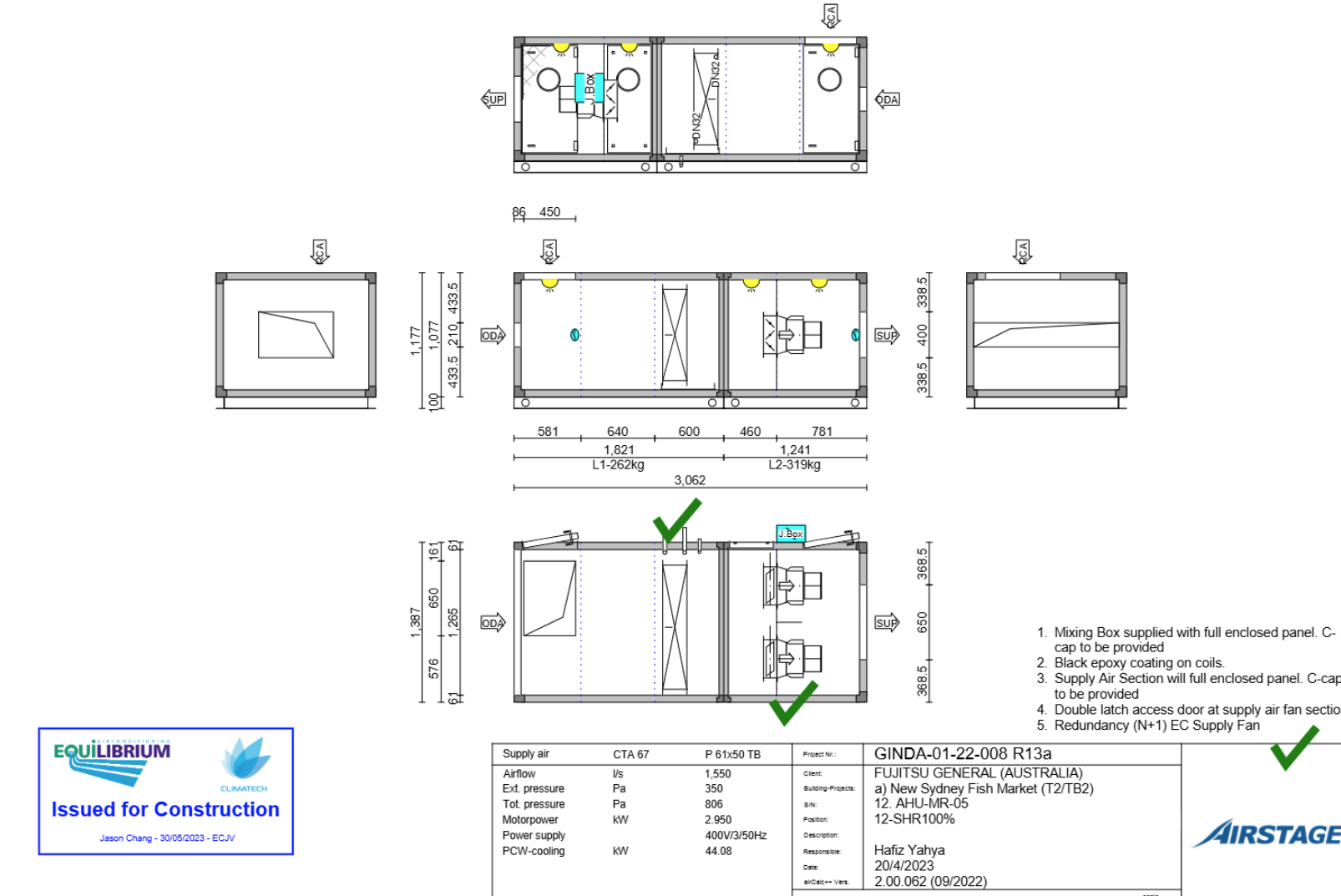

Part numbers CTA67



12- AHU-MR-05
Part NumberDescriptionQty/unit









A5200446ASSY, COIL, LEFT 1








1






A3100179EC FAN, EBM, K3G310PH2









A1200147ALUM, DAMPER, (NON RETURN) 0420H X 0350W2
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)3

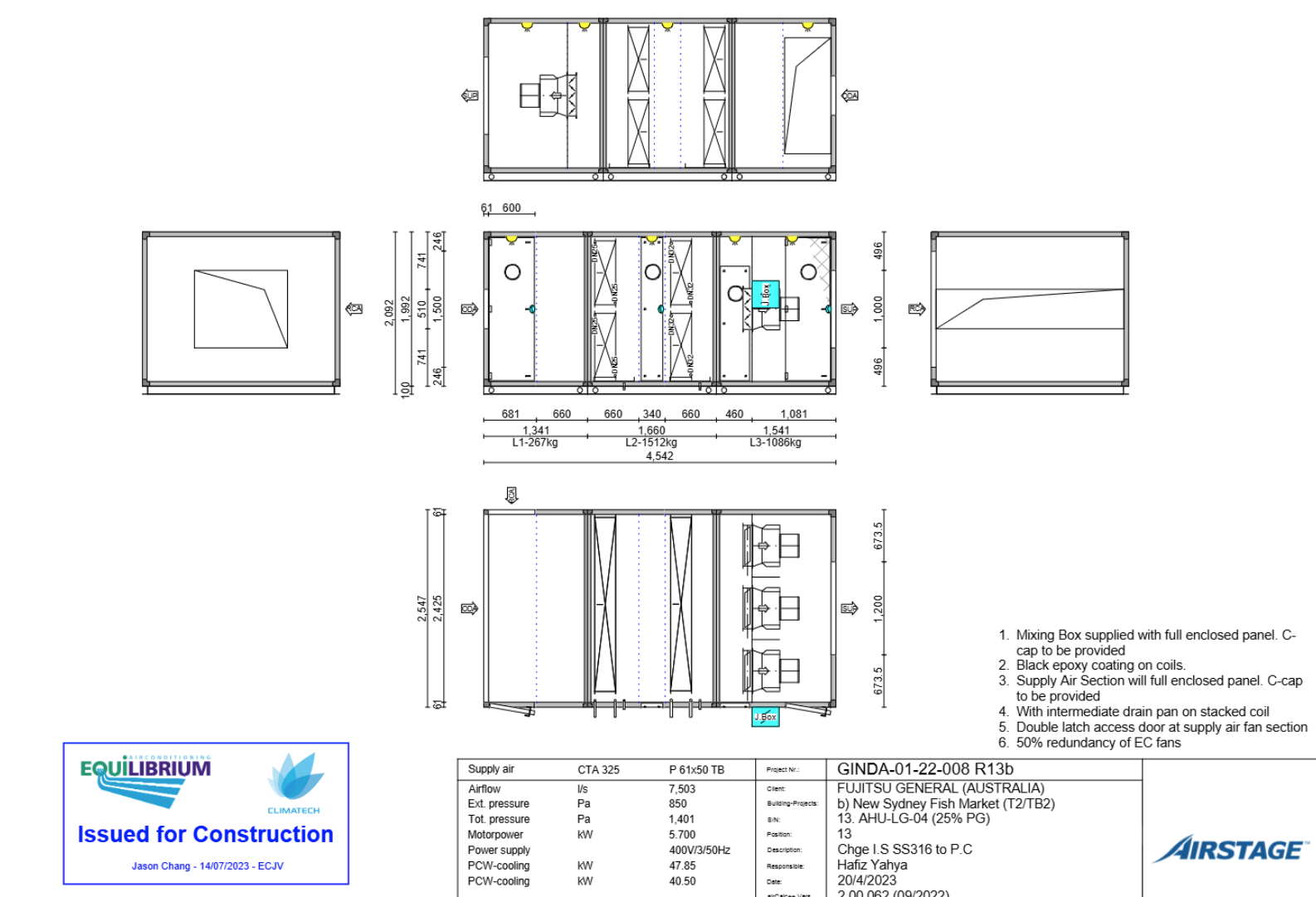

Part numbers CTA325



13- AHU-LG-04
Part NumberDescriptionQty/unit









A5200450ASSY, COIL, RIGHT 1
A5200454ASSY, COIL, RIGHT 1












A3100201EC FAN, EBM, K3G500PB3









A1200148ALUM, DAMPER, (NON RETURN) 0500H X 0550W3
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4

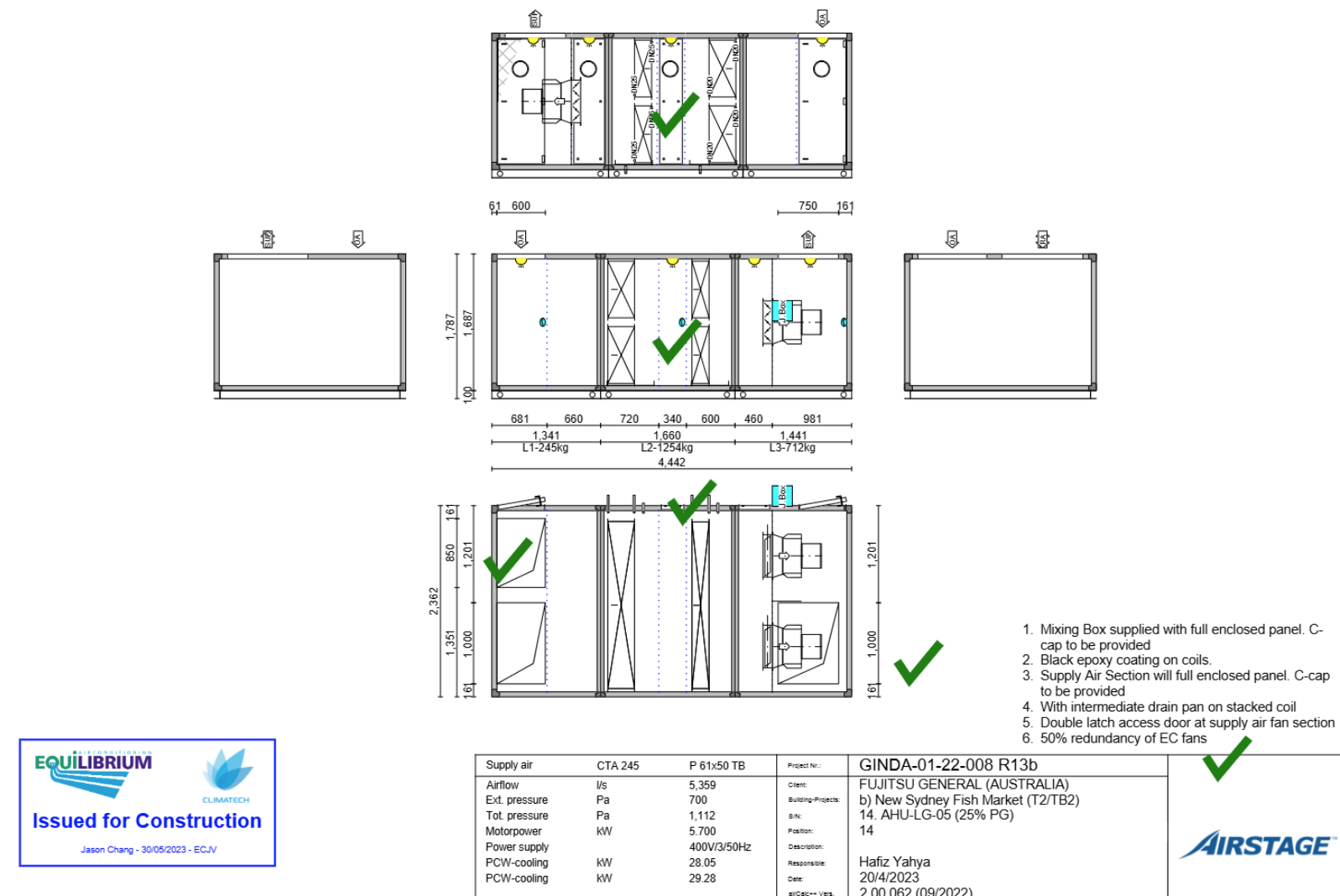

Part numbers CTA245



14- AHU-LG-05
Part NumberDescriptionQty/unit









A5200458ASSY, COIL, LEFT ,COIL4W2
A5200462ASSY, COIL, LEFT ,COIL4W2












A3100201EC FAN, EBM, K3G500PB2









A1200148ALUM, DAMPER, (NON RETURN) 0500H X 0550W2
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4


Part numbers CTA445



15- AHU-LG-08
Part NumberDescriptionQty/unit









A5200466ASSY, COIL, LEFT ,COIL4W1
A5200470ASSY, COIL, LEFT ,COIL4W1












A3100201EC FAN, EBM, K3G500PB3









A1200148ALUM, DAMPER, (NON RETURN) 0500H X 0550W3
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4

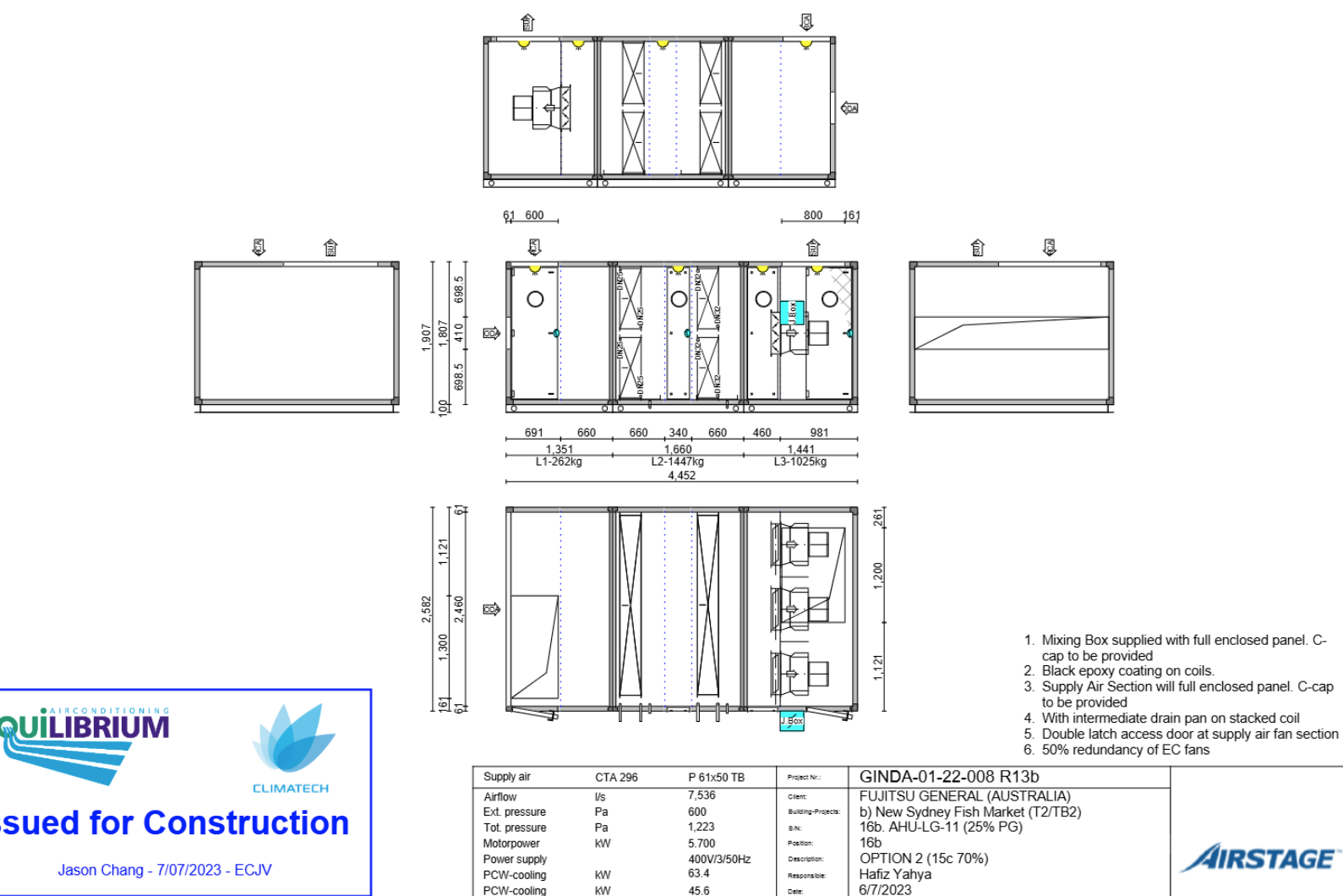

Part numbers CTA296



16- AHU-LG-11
Part NumberDescriptionQty/unit









A5200490ASSY, COIL, RIGHT ,COIL4W1
A5200493ASSY, COIL, RIGHT ,COIL4W1












A3100201EC FAN, EBM, K3G500PB3






A1200148ALUM, DAMPER, (NON RETURN) 0500H X 0550W3
A1300034POLYCARBONATE DOUBLE PORTHOLE (OBP60.00)4

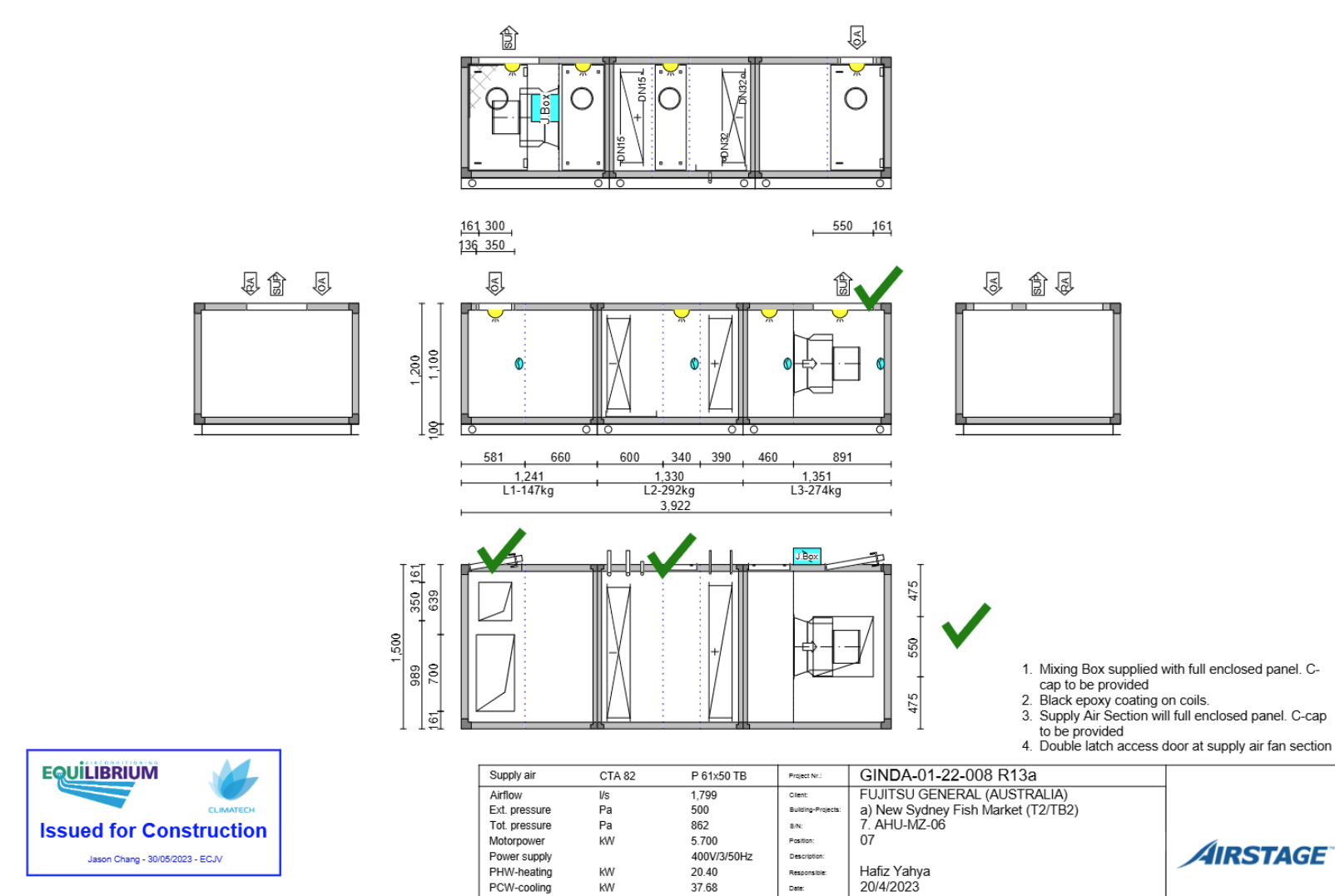

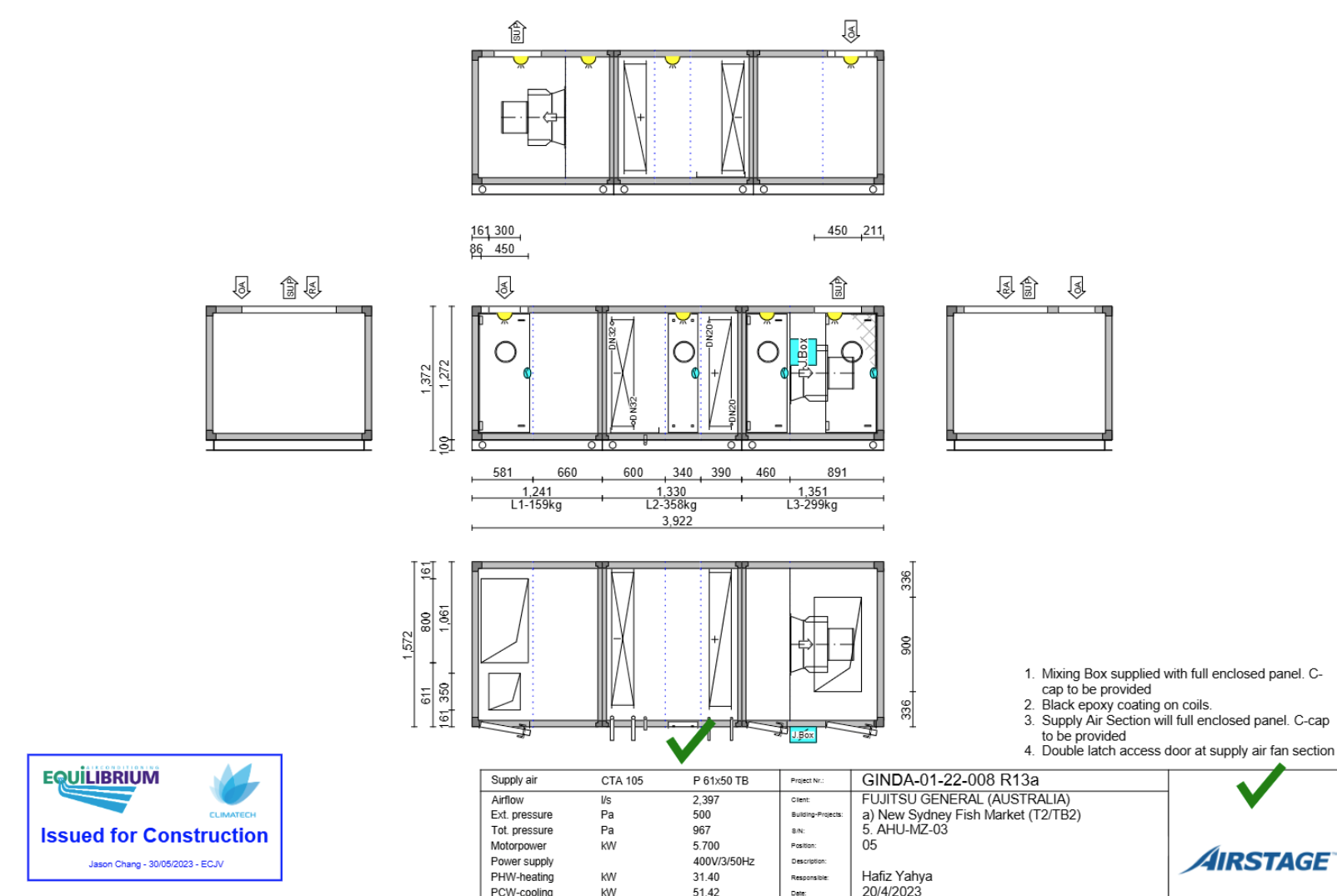

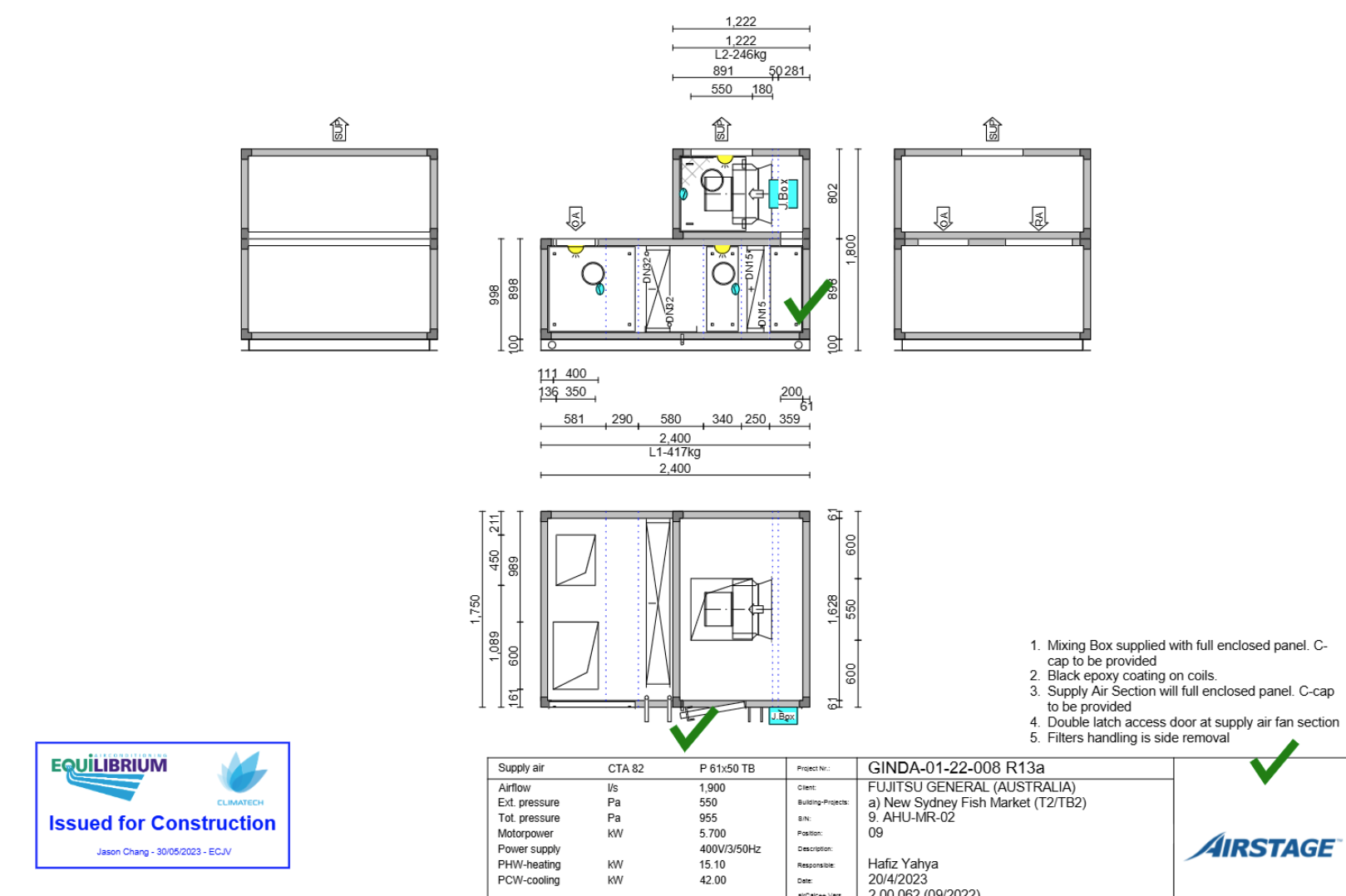

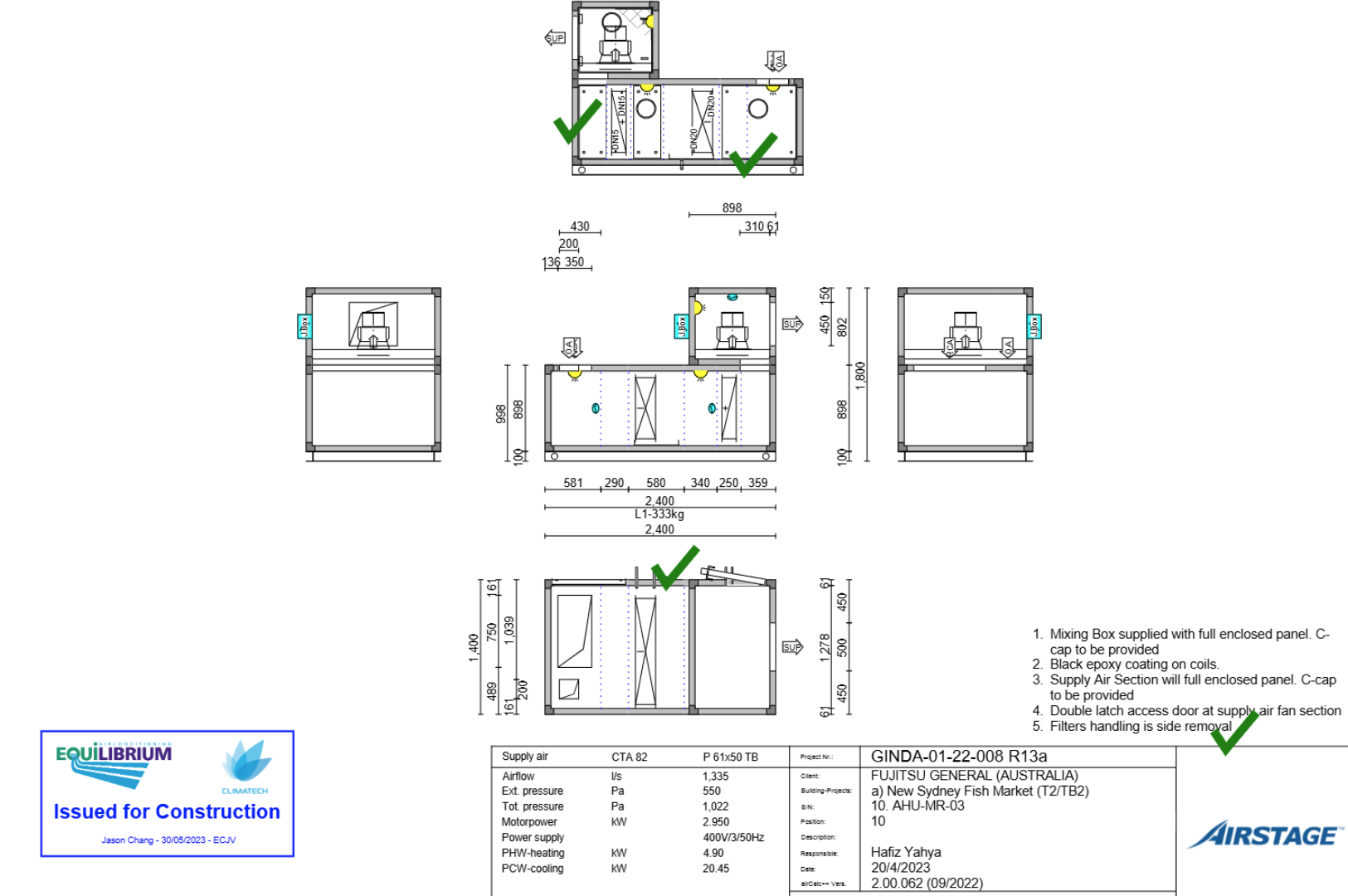

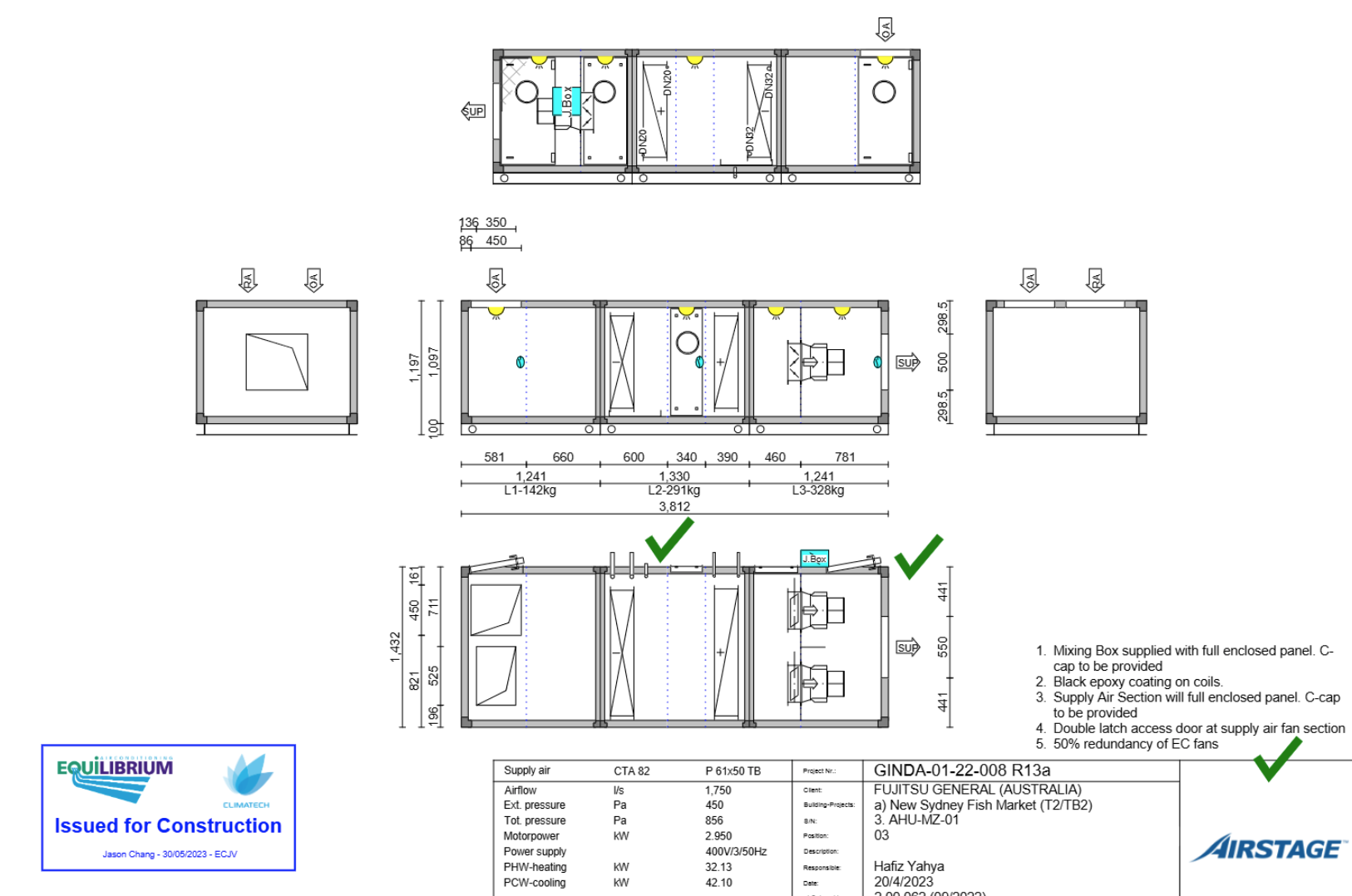

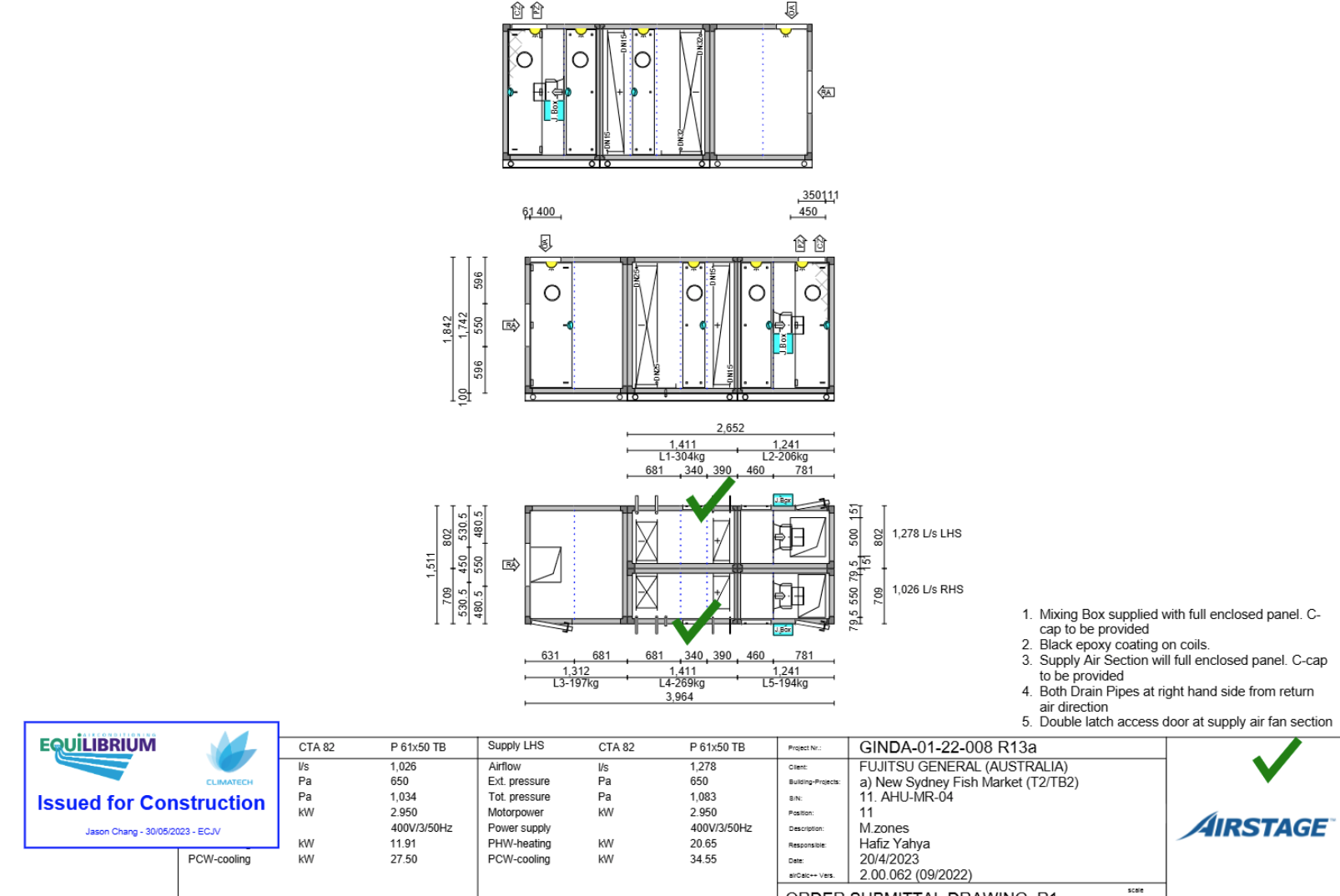

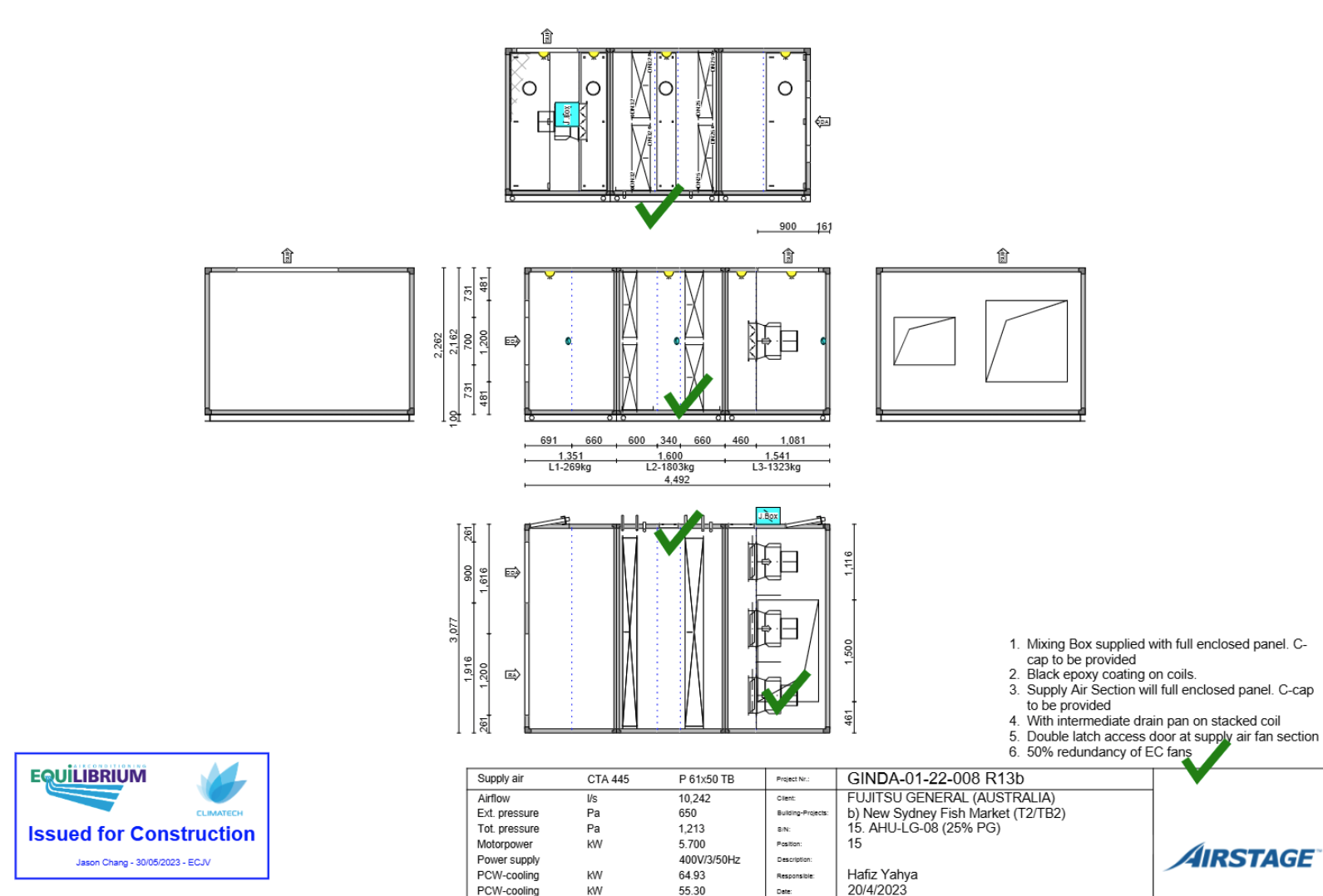

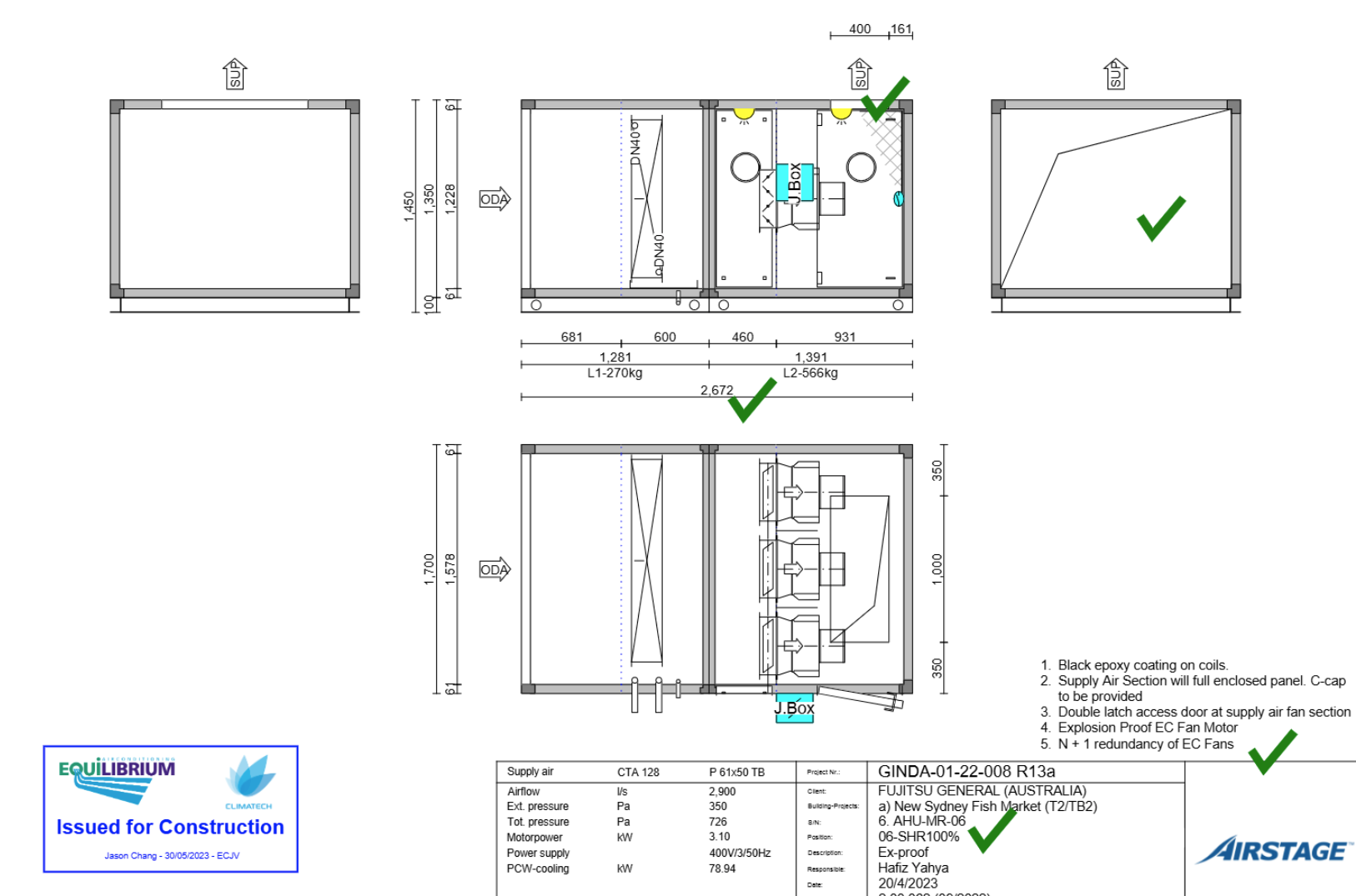

Unit drawings
