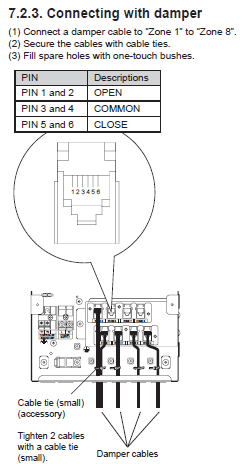

The UTY-CDRXZC has a different wiring confirguration for the 24v zone motors compared to the UTy-ANY. The following is how the CDRXZC is wired
On the other hand, the UTY-ANY zone motors are wired like this
You can use the same zone motor on both controllers however you will need to rewire the RJ12 connector to suit the appropriate wiring diagram.
