Description: Ensures the proper conversion of AC to DC power.
Solution:
Disconnect control harnesses.

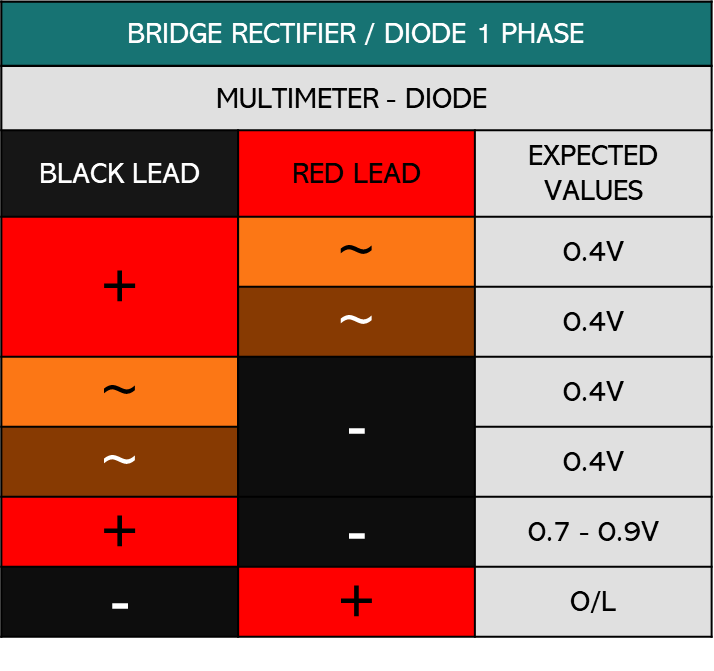

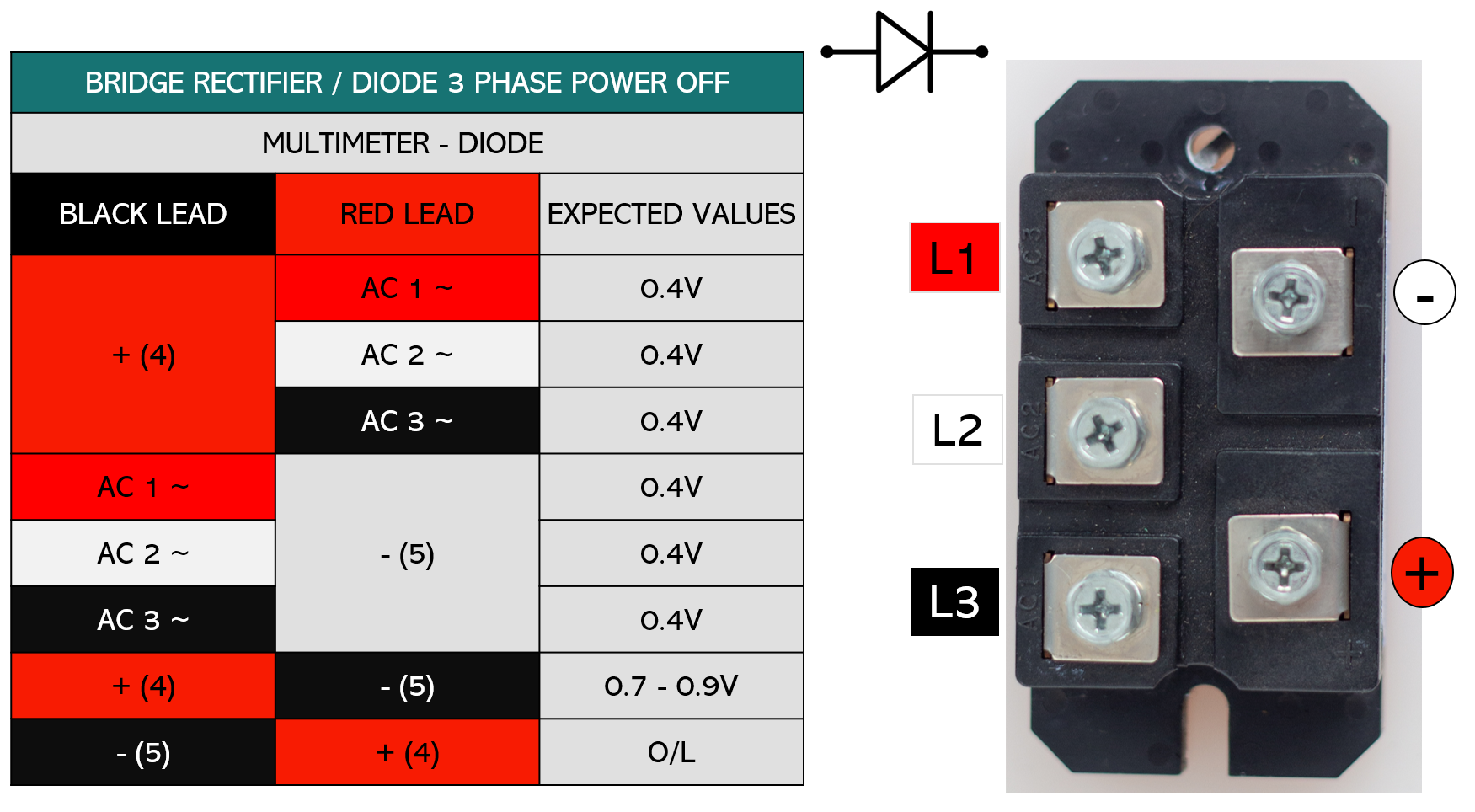

Test using a diode tester with power off.
Diode Bridge Testing Print
