Description: Testing IPM for proper operation.
Solution:

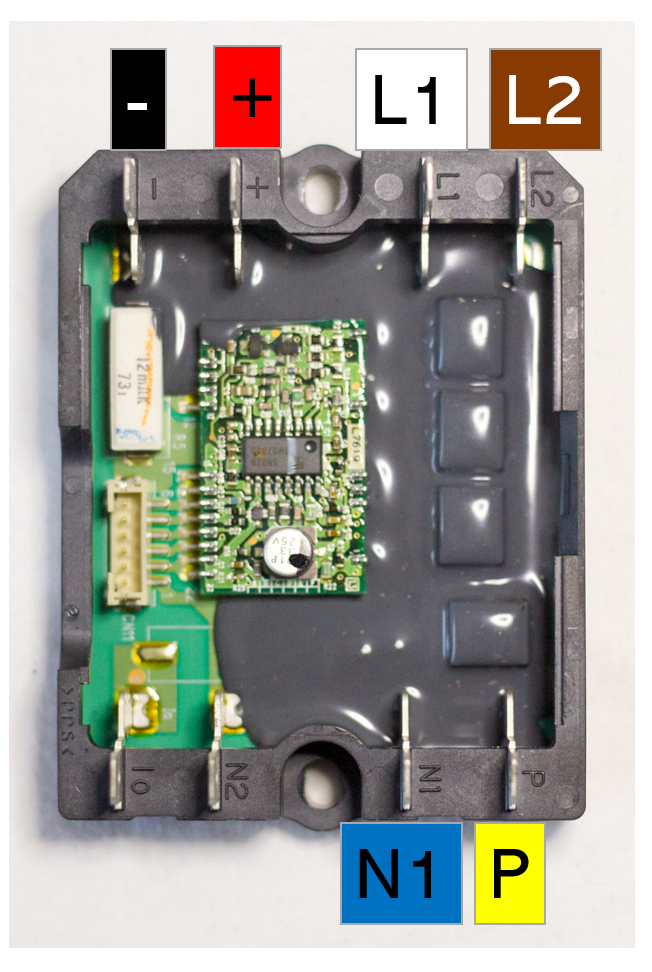

Test ACTPM with power off.
Measured in resistance k ohm.
ACTPM short will trip power supply circuit.
Disconnect all contro harnesses during power off tests.

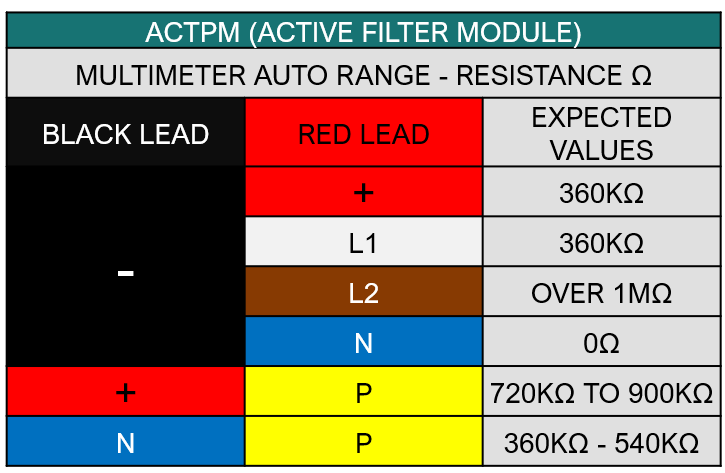

ACTPM Testing Print
