General Assist Technical Reference
AOTA72LALT and AOTA90LALT Outdoor Functions
Monitoring, function settings, service functions and error-history access
For qualified technicians working on General AIRSTAGE AOTA72LALT and AOTA90LALT outdoor units
The outdoor control PCB includes an onboard diagnostic and configuration interface. Technicians can use the MODE / EXIT, SELECT and ENTER buttons with the 7-segment display to monitor operating data, adjust selected functions and review stored errors without connecting a separate service tool.
Electrical safety: The outdoor unit must remain energised for many monitoring and setting procedures. Access is restricted to suitably qualified personnel using appropriate electrical safety controls and personal protective equipment.

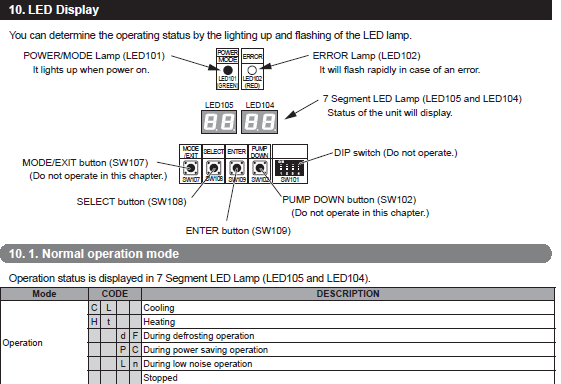

1. Control interface layout
| Component | Label | Function |
|---|---|---|
| POWER / MODE LED | LED101 (green) | Illuminates when the outdoor control PCB is powered. |
| ERROR LED | LED102 (red) | Flashes rapidly when an active system fault is present. |
| 7-segment display | LED104 / LED105 | Displays operating states, function modes, item numbers, values and error information. |
| MODE / EXIT | SW107 | Changes the displayed mode and exits the current selection. |
| SELECT | SW108 | Scrolls through mode, item and value selections. |
| ENTER | SW109 | Confirms a selection and stores an adjusted value. |
| PUMP DOWN / DIP switches | SW102 / DIP | Not used for normal function-menu navigation. |
2. Normal operation indications
| Display | Operating state | Description |
|---|---|---|
| CL | Cooling | The system is operating in cooling mode. |
| Ht | Heating | The system is operating in heating mode. |
| dF | Defrost | An outdoor heat-exchanger defrost cycle is active. |
| PC | Power saving | Reduced-capacity operation is active. |
| Ln | Low noise | Outdoor low-noise operation is active. |
| - | Stopped | The unit is idle or switched off. |

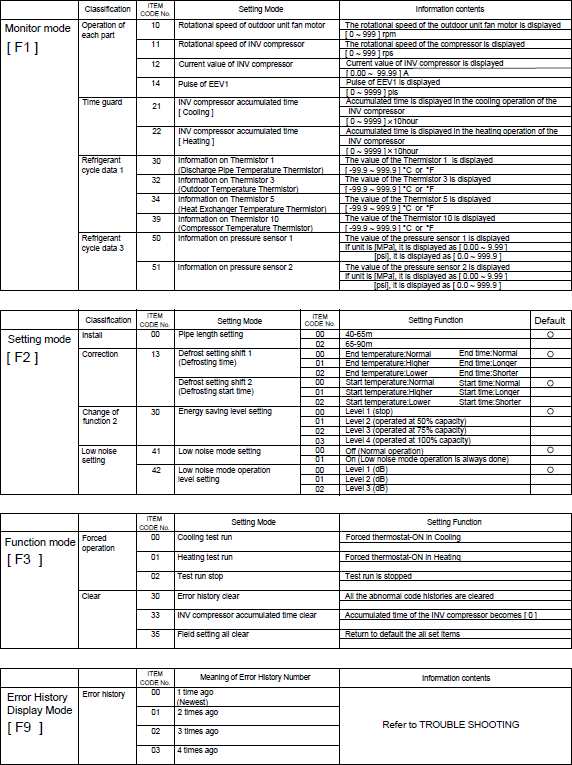

3. Function modes overview
| Classification | Mode | Items | Purpose |
|---|---|---|---|
| Monitor mode | F1 | 10-51 | View operating information such as compressor speed, fan speed, pressure data, thermistor values and electronic expansion valve position. |
| Setting mode | F2 | 00-42 | Adjust selected installation, correction and operating parameters. |
| Function mode | F3 | Service items | Run test operations and perform selected service or reset functions. |
| Error history | F9 | 00-04 | Review the most recent stored system fault events. |
Basic navigation: Press MODE / EXIT until the required mode appears, press ENTER, use SELECT to choose the item number, and press ENTER again to view or confirm the value. Use MODE / EXIT to return to the previous level or normal display.
4. Key settings in F2 mode
| Setting | Item | Options | Default |
|---|---|---|---|
| Pipe length setting | 00 | 00 = 40-65 m 01 = 65-90 m | 00 |
| Defrost shift 1 | 13 | 00 = Normal 01 = Hotter defrost-end temperature 02 = Cooler defrost-end temperature | 00 |
| Defrost shift 2 | 20 | 00 = Normal start 01 = Longer start interval 02 = Shorter start interval | 00 |
| Energy-saving mode | 30 | 00 = Off 01 = 75% capacity 02 = 50% capacity | 00 |
| Low-noise mode | 41 | 00 = Normal 01 = Level 1 02 = Level 2 | 00 |
| Low-noise operation level | 42 | 00 = Off 01 = 3 dB reduction 02 = 6 dB reduction 03 = 9 dB reduction | 00 |
Performance impact: Energy-saving and low-noise settings can reduce available cooling or heating capacity. Confirm the site requirement before changing these settings and document the final values on the commissioning or service record.
5. Service functions in F3 mode
| Item | Function | Description |
|---|---|---|
| 00 | Cooling test run | Starts forced cooling operation for commissioning or diagnosis. |
| 01 | Heating test run | Starts forced heating operation for commissioning or diagnosis. |
| 02 | Stop test run | Stops forced test operation. |
| 30 | Error-history clear | Clears the stored outdoor-unit fault history. |
| 33 | Compressor run-time clear | Resets accumulated inverter-compressor operating time. |
| 50 | Field-setting reset | Returns field-adjustable values to their factory defaults. |
Do not clear diagnostic information prematurely. Record the active error, stored error history and relevant monitor values before clearing data. Reset functions do not repair the underlying fault.
6. Error history in F9 mode
| Item | Display position | Meaning |
|---|---|---|
| 00 | Latest error | Most recently stored fault event. |
| 01 | One error ago | Fault recorded immediately before the latest event. |
| 02 | Two errors ago | Second previous stored fault. |
| 03 | Three errors ago | Third previous stored fault. |
| 04 | Four errors ago | Fourth previous stored fault. |
7. Recommended field procedure
| 1 | Record the normal display and active error. Note the operating state before entering a function menu. |
| 2 | Review F9 error history. Record all stored errors before clearing any data. |
| 3 | Use F1 monitor data. Compare relevant temperatures, pressures, compressor speed and fan operation with the service manual. |
| 4 | Adjust only confirmed F2 settings. Record the original value and the revised value. |
| 5 | Verify operation. Exit to the normal display and confirm the unit operates without recurring errors. |
Service record: Document the model, serial number, original settings, modified values, stored error history and final operating condition. This information supports future diagnosis and prevents unintended configuration changes.
General Assist
For further technical assistance, contact General Assist and provide the outdoor model, serial number, displayed error code, stored error history and any function settings that have been changed.
For further technical assistance, contact General Assist and provide the outdoor model, serial number, displayed error code, stored error history and any function settings that have been changed.
