DC Brushless Fan Motor Explanation
Operation, wiring identification and diode-test reference
For DC brushless fan motors used across applicable indoor, outdoor, standard and VRF products
A DC brushless fan motor contains an internal inverter/control PCB. The motor operates from a high-voltage DC supply and a separate low-voltage control supply, while feedback signals allow the controller PCB to monitor fan speed.
Electrical safety: The fan motor circuit can contain approximately 330-380 V DC. Do not disconnect the fan motor plug while power is applied. Isolate power and follow the applicable service procedure before testing or disconnecting the motor.

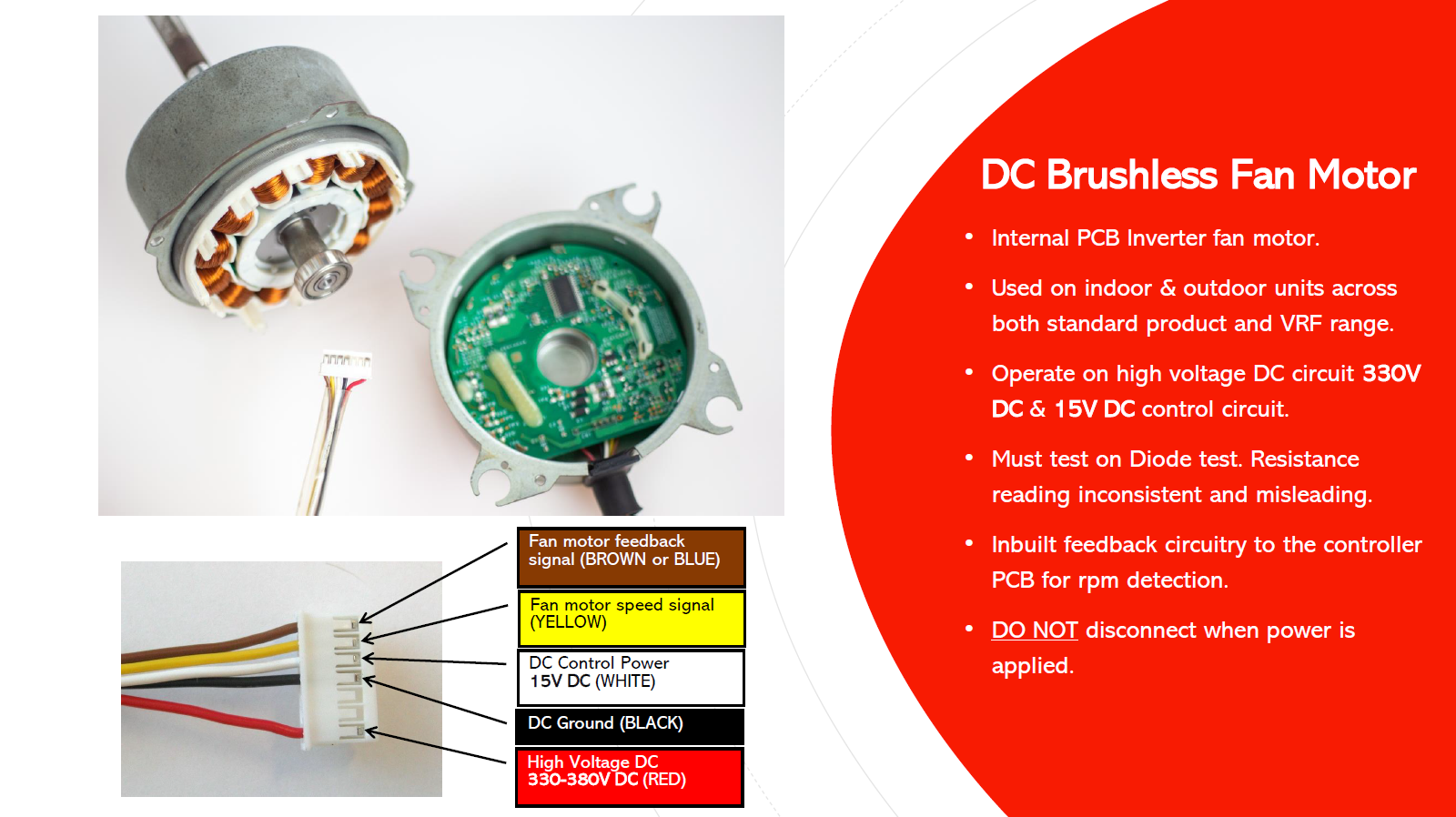

1. How the DC brushless fan motor works
- The motor incorporates an internal PCB/inverter.
- It is used on applicable indoor and outdoor units, including standard product and VRF ranges.
- The motor operates from a 330-380 V DC high-voltage circuit together with a 15 V DC control circuit.
- An inbuilt feedback circuit sends fan-speed information to the controller PCB for RPM detection.
- Resistance readings can be inconsistent or misleading because of the motor's internal electronics; the supplied reference procedure uses a multimeter diode test.
- A partially or fully seized motor shaft should also be checked mechanically.
2. Fan motor wiring identification
| Wire colour | Function |
|---|---|
| Brown or Blue | Fan motor feedback signal |
| Yellow | Fan motor speed signal |
| White | 15 V DC control power |
| Black | DC ground |
| Red | High-voltage DC: 330-380 V DC |
Important: Wire colours and connector layouts can vary between models. Always confirm the applicable wiring diagram or service manual for the unit being serviced.

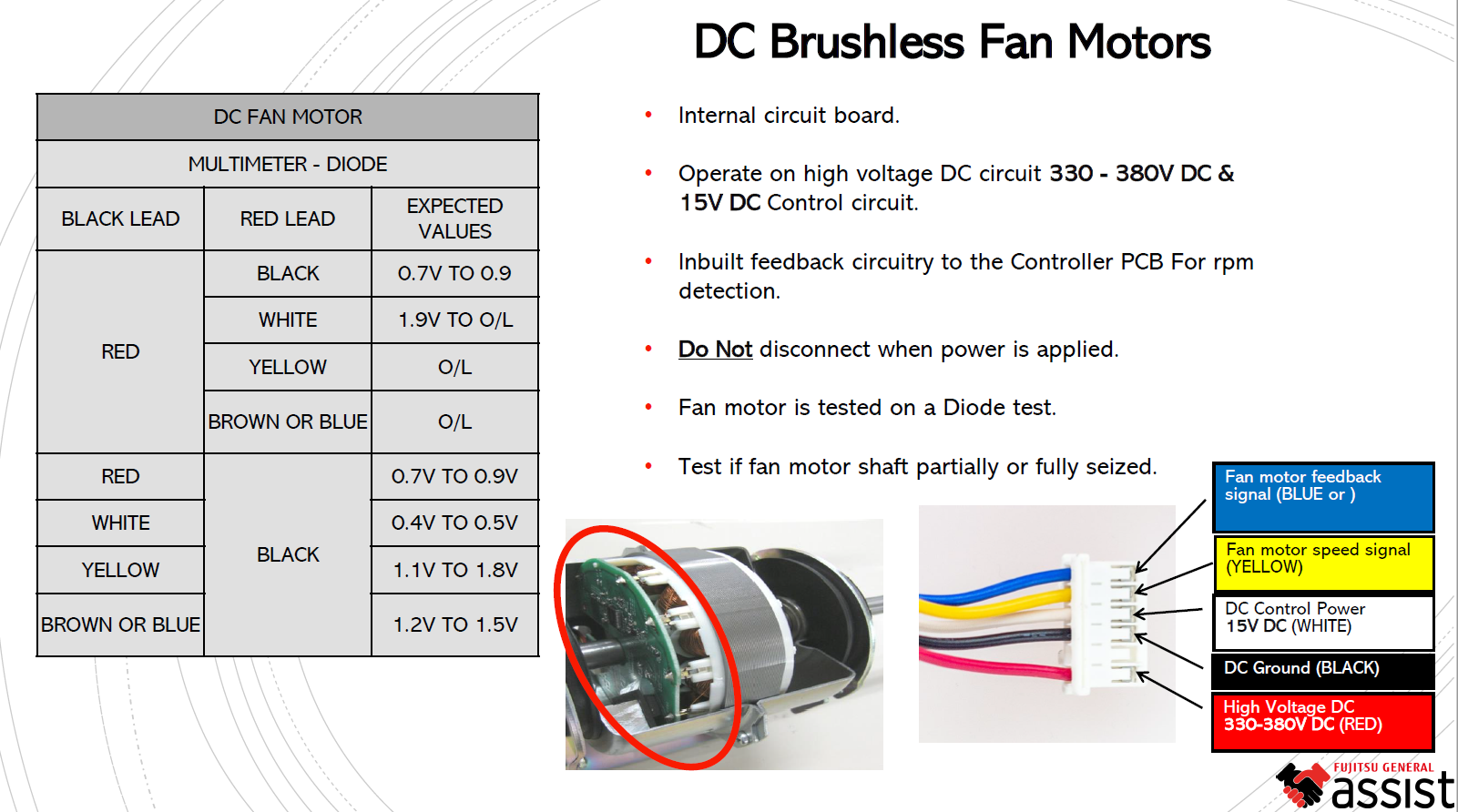

3. Diode-test reference
With the unit isolated and the fan motor disconnected in accordance with the applicable service procedure, set the multimeter to diode test. The training reference provides the following expected readings.
| Black meter lead | Red meter lead | Expected value |
|---|---|---|
| Red | Black | 0.7 V to 0.9 V |
| White | 1.9 V to O/L | |
| Yellow | O/L | |
| Brown or Blue | O/L | |
| Red | Black | 0.7 V to 0.9 V |
| White | 0.4 V to 0.5 V | |
| Yellow | 1.1 V to 1.8 V | |
| Brown or Blue | 1.2 V to 1.5 V |
O/L indicates an open-line / over-range result on the diode-test function. Compare readings against the applicable model's service documentation where available.
4. Service checks
- Check the shaft: Confirm the fan motor shaft is not partially or fully seized.
- Confirm supply and control wiring: Identify the high-voltage DC, ground, 15 V control, speed and feedback conductors using the unit wiring diagram.
- Do not live-disconnect: Never unplug the fan motor while power is applied.
- Use diode mode for static testing: Compare readings with the table above and the specific service manual.
- Check feedback: Where a motor runs but a fan-speed fault remains, consider the fan motor feedback circuit and wiring back to the controller PCB.
Key point: A DC brushless fan motor is not simply a conventional winding-only motor. Its internal electronics mean normal resistance testing may not provide a reliable diagnosis; use the specified diode-test method and model-specific service information.
