Outdoor Filter PCB Check

Filter PCB function, voltage checks and component inspection
Technical reference for checking the outdoor unit Filter PCB
The outdoor Filter PCB provides electrical filtering and protection functions and also distributes AC power to downstream circuits. When diagnosing the board, check the incoming supply, outgoing AC supplies, fuses and visible protective components.

1. Filter PCB Function

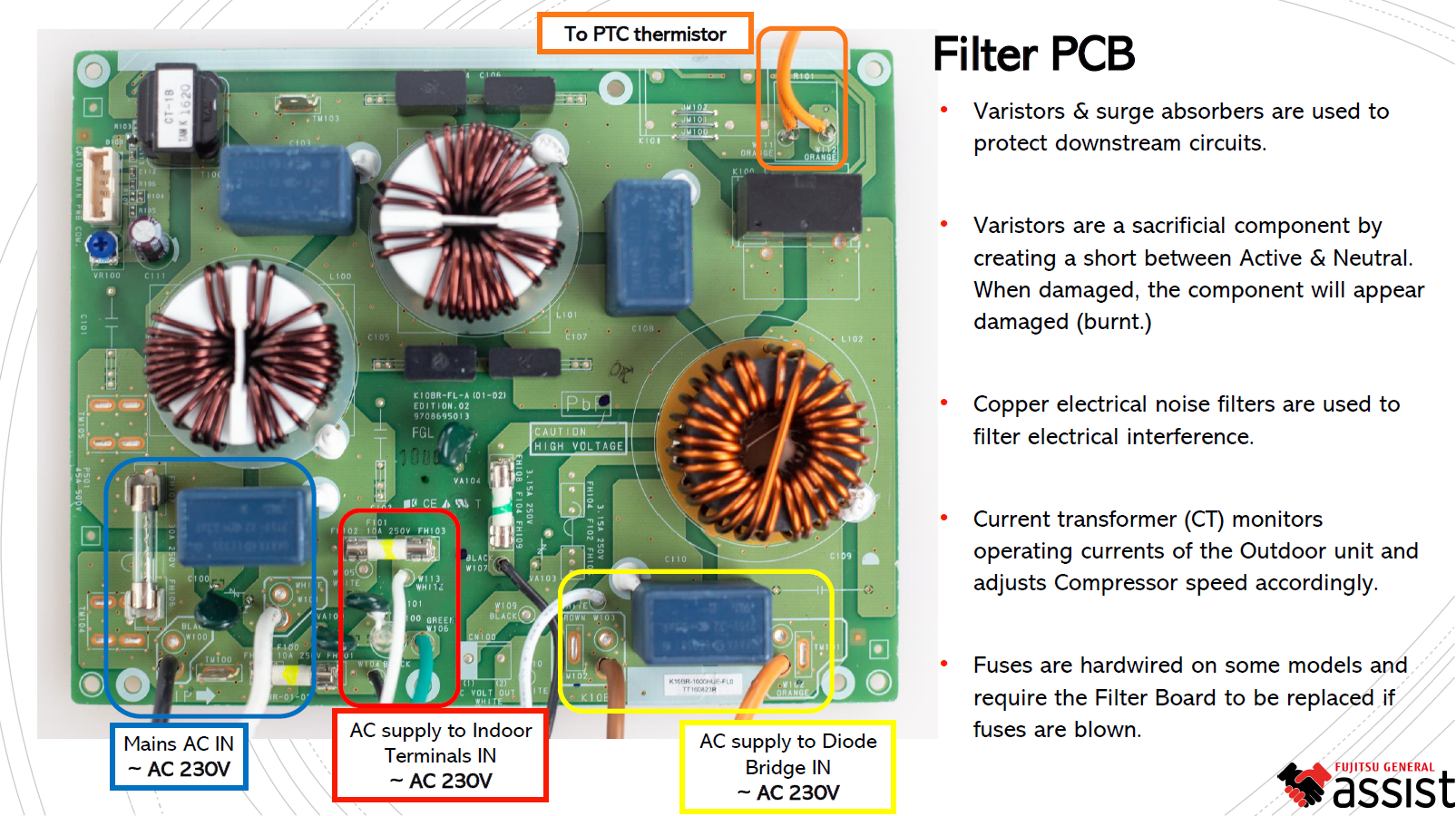

The Filter PCB contains a number of protective and filtering components used by the outdoor unit.

Component / FunctionPurpose
Varistors / Surge AbsorbersProtect downstream circuits from electrical surges.
Copper Electrical Noise FiltersReduce and filter electrical interference.
Current Transformer (CT)Monitors outdoor unit operating current so compressor speed can be adjusted accordingly.
FusesProvide circuit protection. On some models the fuses are hardwired to the PCB.
PTC Thermistor ConnectionConnection from the Filter PCB to the PTC thermistor circuit.

Varistor inspection

Varistors are sacrificial protective components. When subjected to a damaging surge they can create a short between Active and Neutral. A failed varistor will commonly show visible signs of damage or burning.

2. Voltage Checks

The reference identifies three key AC voltage checks on the Filter PCB.

Check PointExpected VoltagePurpose
Mains AC IN~ AC 230 VConfirms mains supply is reaching the Filter PCB.
AC Supply to Indoor Terminals IN~ AC 230 VConfirms the Filter PCB is supplying AC power towards the indoor terminal circuit.
AC Supply to Diode Bridge IN~ AC 230 VConfirms AC power is leaving the Filter PCB and reaching the diode bridge input.
Key diagnostic principle: If approximately 230 VAC is present at Mains AC IN but is missing at one of the Filter PCB outputs, investigate the Filter PCB, its fuse protection and associated connections.

3. Component Checks

Fuses

Inspect and electrically test the Filter PCB fuses.

Important: On some outdoor unit models the fuses are hardwired to the Filter PCB. If a hardwired fuse is open, the complete Filter PCB may require replacement.

Varistors

  • Inspect for burning, cracking, discolouration or other visible damage.
  • Damage can indicate that the varistor has operated in response to an electrical surge.
  • A failed varistor may create a short between Active and Neutral.

Noise Filter Coils

The large copper-wound components on the Filter PCB are electrical noise filters used to reduce electrical interference.

Inspect these components and their soldered connections for obvious physical or heat damage.

Current Transformer

The Current Transformer (CT) monitors the operating current of the outdoor unit. This information is used by the control system when adjusting compressor speed.

PTC Thermistor Connection

Check the connection from the Filter PCB to the PTC thermistor and confirm the connector and wiring are secure and undamaged.

4. Diagnostic Sequence

1Confirm approximately 230 VAC is present at the Mains AC IN connection.
2Inspect the Filter PCB for obvious signs of burning, damaged varistors, damaged components or heat-affected connections.
3Check the Filter PCB fuses for continuity.
4Confirm approximately 230 VAC at the AC supply to Indoor Terminals IN.
5Confirm approximately 230 VAC at the AC supply to Diode Bridge IN.
6Inspect the PTC thermistor connection, Current Transformer and associated wiring.

5. Quick Reference

ItemCheck
Mains AC INApproximately 230 VAC
Indoor Terminal SupplyApproximately 230 VAC
Diode Bridge InputApproximately 230 VAC
VaristorsCheck for visible damage or burning
FusesCheck continuity
CTCheck wiring and connection
PTC ThermistorCheck connector and wiring
Electrical safety: These checks involve live mains voltage. Testing should only be carried out by appropriately qualified personnel using suitable test equipment and safe electrical work practices.
