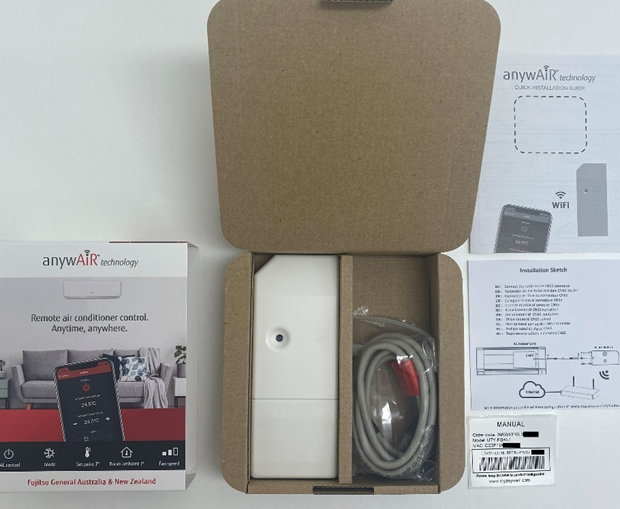

UTY-FGAN1 Contents
- Installation Sketch (1)
- UTY-FGAN1 device (HxWxD) (mm) 127 x 50 x 17 (1)
- Quick installation guide (1)
- Connecting Cable Wire harness 1500mm (1)
- Sticker containing unique item information (1)
Items Required for Installation of UTY-FGAN1
- UTY-FGAN1
- Compatible indoor unit.
- WPS enabled, 2.4Ghz Router.
- Installation guide
- Tools to remove indoor unit cover.
1. Attach sticker to the Quick installation guide & file safely.

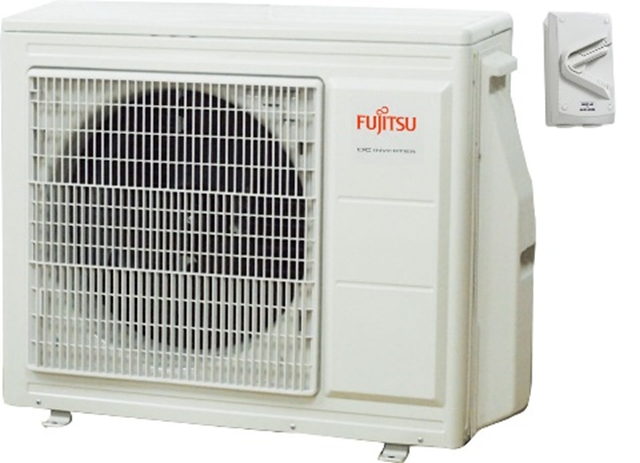

2. Isolate power to the Air Conditioner.

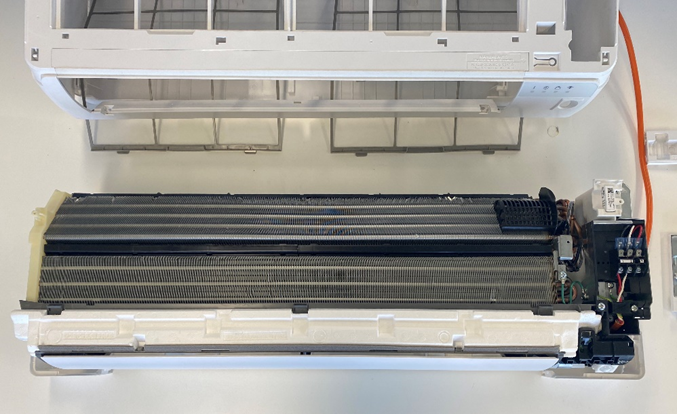

3. Remove the main cover from the indoor unit.

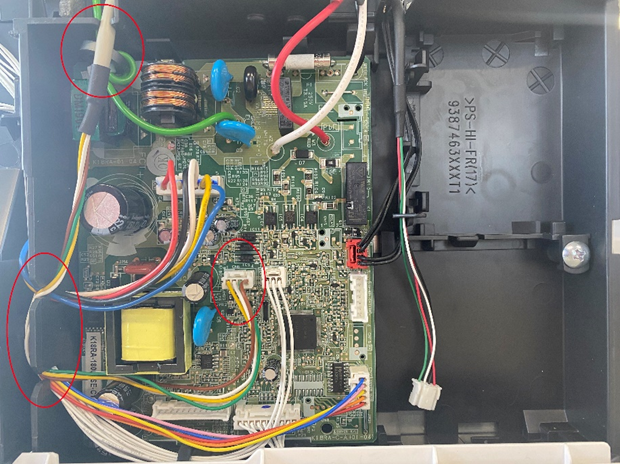

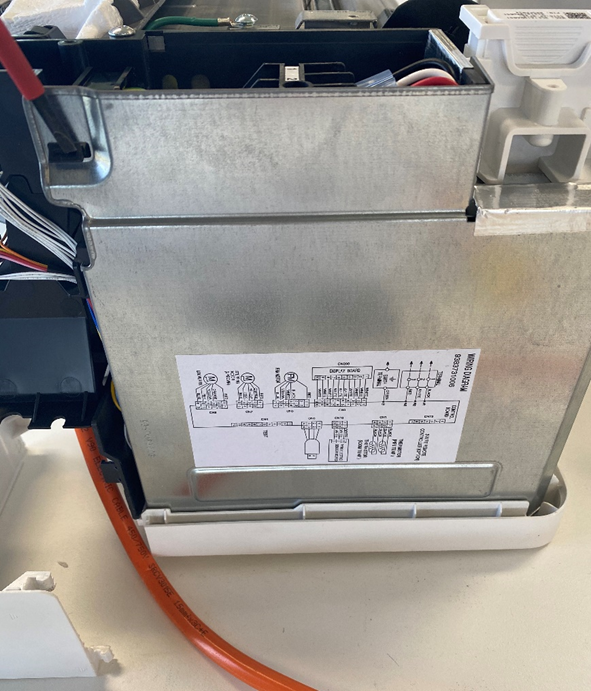

4. Remove the electrical cover to access the circuit board.

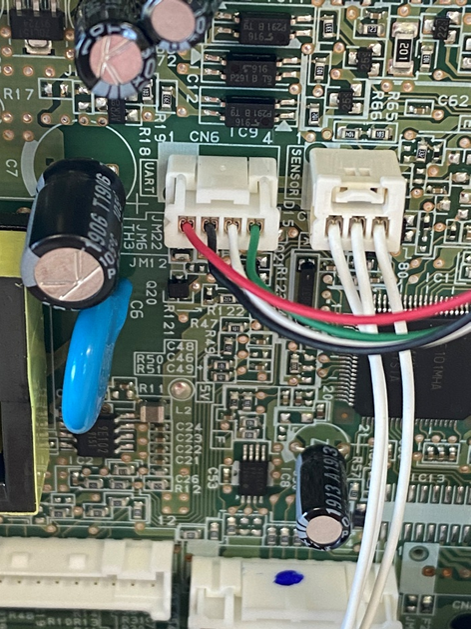

5. Locate CN6 & unplug the existing cable.
6. Connect the supplied wire harness & route cable to suitable location.

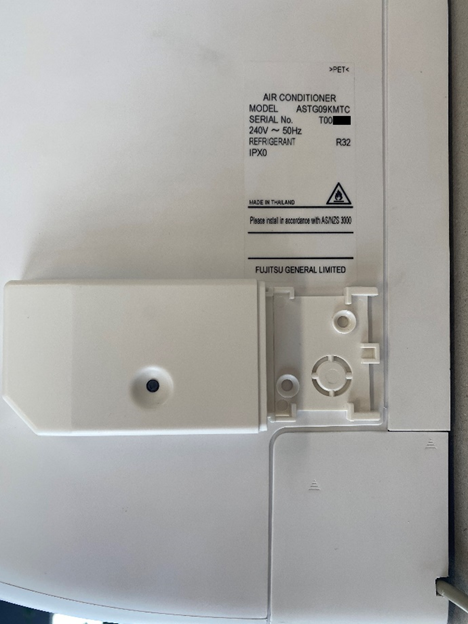

7. Reassemble covers to indoor unit & fix the Wi-Fi device to the indoor unit.
8. Attach supplied barcode sticker to the indoor unit.
