AnywAiR - Kit Contents (UTY-ANY1)
Components supplied with the anywAiR ducted controller kit
The following items are supplied in the box with the UTY-ANY1 anywAiR ducted controller. Use this article as a quick reference when checking kit contents before installation.
Kit contents
| Item | Size / Length / Quantity |
|---|---|
| anywAiR controller | 190 mm x 115 mm x 40 mm (including mount) |
| Control Box and RF Antenna | 40 mm x 140 mm x 280 mm RF antenna height: 16 cm |
| Link Cable - Control Box to indoor unit | 2.1 m |
| Power Supply Unit cable to indoor unit | 1.0 m |
| IEC lead for PSU | 2.0 m |
| Power Over Ethernet cable | 12.0 m |
| Remote Temperature Sensors | 2 supplied |
| Tablet Mounting Bracket | 1 supplied |

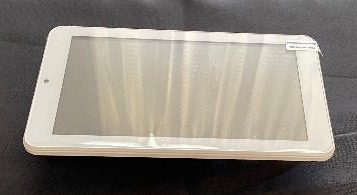

anywAiR controller
Dimensions: 190 mm x 115 mm x 40 mm, including the mounting arrangement.

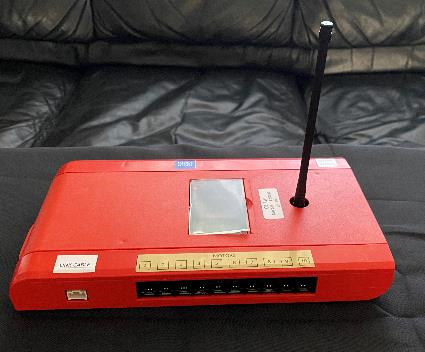

Control Box and RF Antenna
Control box dimensions: 40 mm x 140 mm x 280 mm.
RF antenna height: 16 cm.

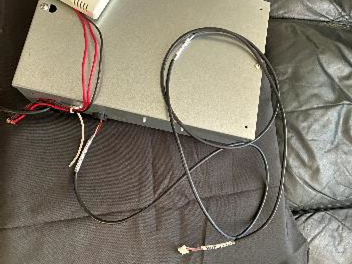

Connection cables and power supply leads
- Link Cable - Control Box to indoor unit: 2.1 m
- Power Supply Unit to indoor unit: 1.0 m
- IEC lead for PSU: 2.0 m

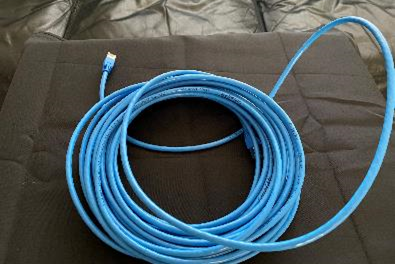

- Power Over Ethernet cable: 12.0 m

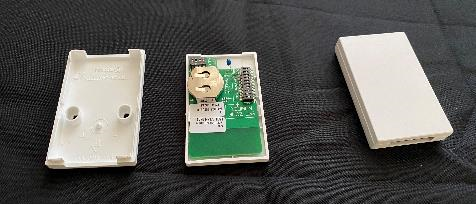

Remote Temperature Sensors
The kit includes 2 remote temperature sensors.

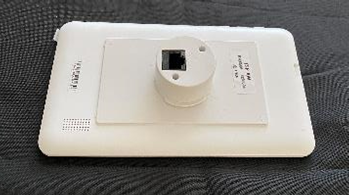

Tablet Mounting Bracket
A tablet mounting bracket is supplied with the UTY-ANY1 kit.
Quick check: Before installation, confirm the controller, control box with RF antenna, link cable, PSU leads, 12 m Power Over Ethernet cable, two remote temperature sensors and tablet mounting bracket are present.
