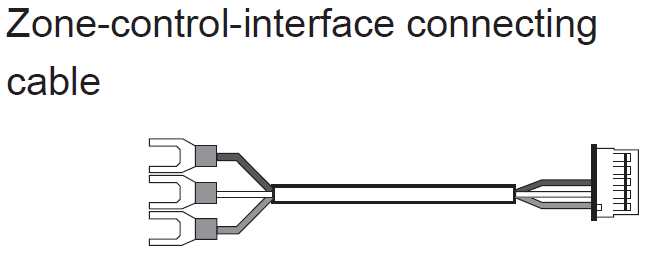

In some cases, the factory supplied wire harness is of incorrect polarity.
Connection to CN6 on the Zone module.
As per below;

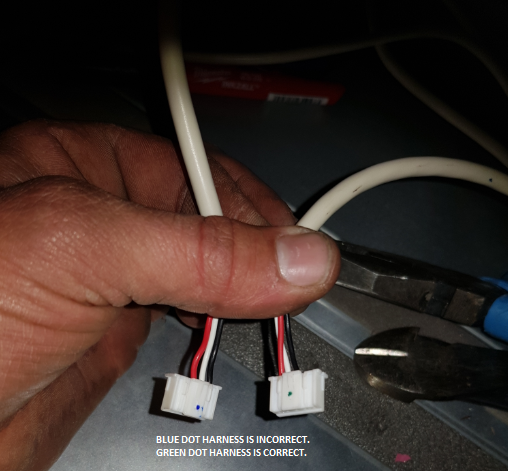

The Blue dot harness (Left) is incorrect.
The Green dot harness (right) is correct.
The correct combination is;
Pin 1 = Red
Pin 2 = White
Pin 3 = Black
Pin 4 = NA
Pin 5 = NA
