General Air Conditioning | Wi-Fi Setup Guide
myanywAiR® Automatic and Manual Wireless Configuration
LED sequence, WPS setup, manual setup and troubleshooting guidance
Overview: During setup of the myanywAiR® Wi-Fi device, the LED indicator provides real-time feedback on the connection process. A successful setup normally progresses through a defined sequence before the LED turns off.
1. Successful Connection Sequence
Successful outcome: The setup is complete when the LED finishes the sequence below and then turns off.
| LED display | Status | Meaning |
|---|---|---|
| Green — steady | Not configured | The device is powered but has not yet been connected to a Wi-Fi network. |
| Green — blinking | Checking | The device is checking its configuration parameters. |
| Yellow — blinking | Configuring | The device is downloading setup data and applying the configuration. |
| Red — blinking | Connecting | The device is connecting to the wireless access point and cloud server. |
| Off | Connected | The Wi-Fi configuration has completed successfully and the device is operating normally. |
Timing: Allow up to 2 minutes for each configuration stage. Do not reset or remove power while the LED is actively progressing through the setup sequence.
2. Automatic Wireless Configuration — WPS
- Confirm the router supports WPS and that the 2.4 GHz Wi-Fi network is enabled.
- Place the router and Wi-Fi adaptor within reliable signal range.
- Start WPS setup on the myanywAiR® device. The LED should blink blue.
- Press the WPS button on the router within 2 minutes.
- Wait for the adaptor to complete the remaining LED sequence.
- Confirm the LED turns off and verify the device is shown as online in the myanywAiR App.
WPS failure: A blinking magenta LED indicates the WPS attempt was unsuccessful. Repeat the procedure or use manual configuration.
3. Manual Wireless Configuration
- Download and open the official myanywAiR App.
- Confirm the mobile device has Wi-Fi, Bluetooth and Location Services enabled where required by the app.
- Connect the mobile device to the customer’s 2.4 GHz home Wi-Fi network.
- Select Add Device or the applicable setup option in the app.
- Enter the Wi-Fi network name and password exactly as configured on the router. Passwords are case-sensitive.
- Follow the app prompts and monitor the adaptor LED through the setup sequence.
- When the LED turns off, confirm the unit appears online and complete an ON/OFF and temperature-change test.
Important: The adaptor supports 2.4 GHz Wi-Fi. A 5 GHz-only network will not complete setup.

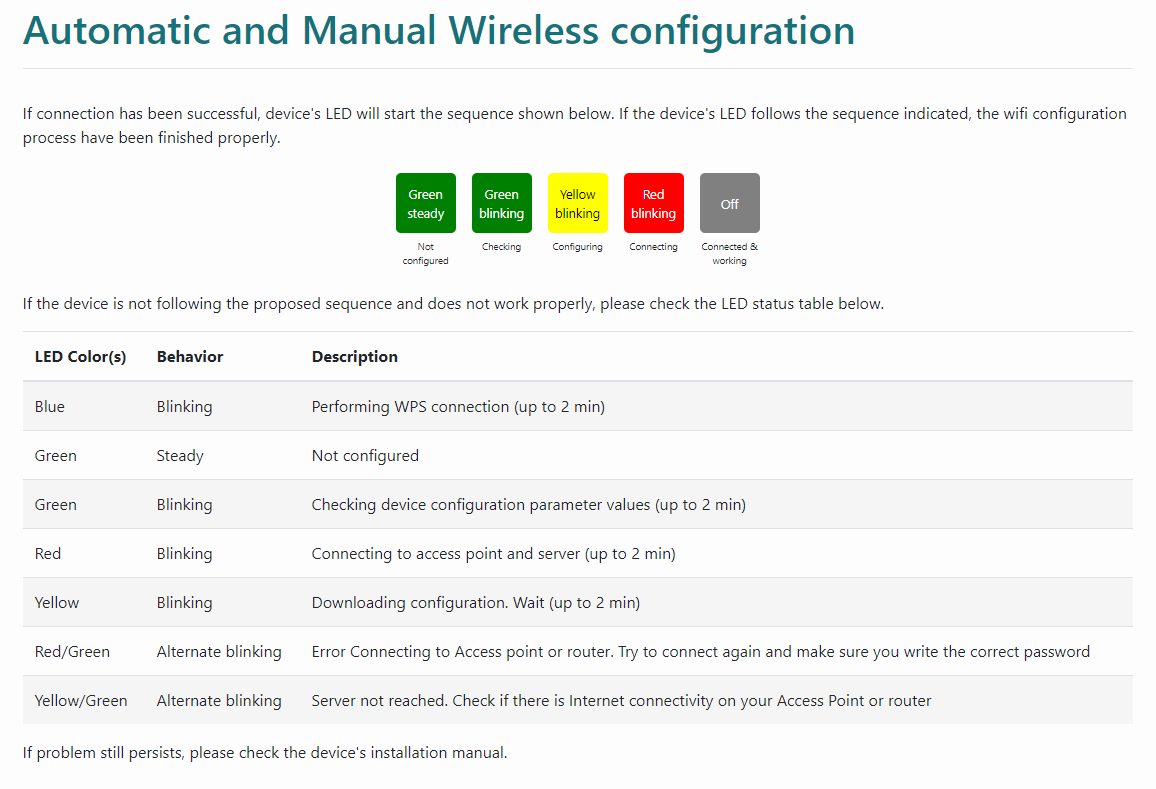

4. LED Status Reference
| LED colour(s) | Behaviour | Description / action |
|---|---|---|
| Blue | Blinking | Performing WPS connection. Allow up to 2 minutes. |
| Green | Steady | Powered and ready for configuration. |
| Green | Blinking | Checking configuration parameters. |
| Red | Blinking | Connecting to the Wi-Fi access point and server. |
| Yellow | Blinking | Downloading or applying configuration. Wait up to 2 minutes. |
| Red / Green | Alternate blinking | Unable to connect to the access point or router. Verify SSID and password. |
| Yellow / Green | Alternate blinking | The server cannot be reached. Confirm the router has active internet access. |
5. Troubleshooting
| Symptom | Likely cause | Corrective action |
|---|---|---|
| Red / Green alternating | Incorrect Wi-Fi name or password | Re-enter the credentials exactly. Confirm uppercase, lowercase and special characters. |
| Yellow / Green alternating | No internet access or server unavailable | Test the router’s internet connection and restart the modem/router if required. |
| Blue blinking for more than 2 minutes | WPS pairing not completed | Restart WPS on both devices or use manual configuration. |
| No LED | No power or setup already completed | Confirm power supply and check whether the device is already online in the app. |
| Setup repeatedly fails | Weak signal, incompatible network or retained configuration | Move closer to the router, confirm 2.4 GHz operation, power-cycle the adaptor and repeat setup. |
Recommended reset and retry sequence
- Confirm the router is operating and 2.4 GHz Wi-Fi is enabled.
- Power-cycle the Wi-Fi adaptor for 10 seconds.
- Reset the adaptor in accordance with the applicable installation guide.
- Delete any incomplete device entry from the app.
- Repeat WPS or manual setup.
- Verify ON/OFF, mode and temperature control before leaving site.
Escalation information: Before contacting Assist, record the indoor unit model, Wi-Fi adaptor model, LED pattern, router make/model, network type, and the exact stage where configuration fails.
6. Support
For configuration assistance or persistent LED errors, contact Assist Technical Support:
Australia: 1300 364 484
New Zealand: +64 4 568 8761
