VRF Transmission Cable Resistance Check

Use this check to assess the resistance of the VRF transmission cable. The measured resistance should correspond with the approximate cable distance from the termination resistor.

Key point:  As transmission cable length increases, the expected resistance also increases. Use the measured resistance together with the approximate distance to the termination resistor to assess the network.

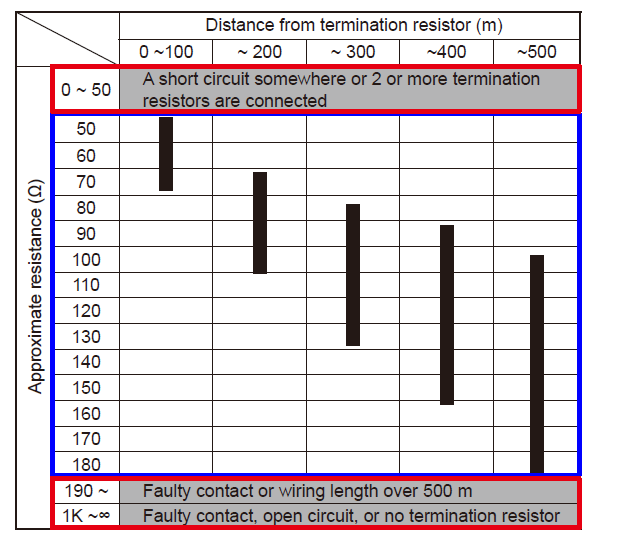

Approximate resistance by cable distance

Distance from termination resistorApproximate resistance rangeAssessment
0–100 mApprox. 50–75 ΩNormal range shown by the reference chart
~200 mApprox. 65–105 ΩNormal range shown by the reference chart
~300 mApprox. 80–135 ΩNormal range shown by the reference chart
~400 mApprox. 85–155 ΩNormal range shown by the reference chart
~500 mApprox. 95–180 ΩNormal range shown by the reference chart

Fault indication

0–50 Ω
A short circuit may be present, or two or more termination resistors may be connected.
190 Ω or higher
Indicates a faulty contact or transmission wiring length over 500 m.
1 kΩ to ∞
Indicates a faulty contact, an open circuit, or no termination resistor.

How to interpret the reading

1Measure the transmission cable resistance using the applicable service procedure.
2Estimate the distance from the test point to the termination resistor.
3Compare the measured resistance with the corresponding range above.
4If the reading is in one of the fault ranges, investigate the transmission wiring, connections and termination resistor arrangement.
Note: The resistance values shown are approximate and are intended to be interpreted against the transmission cable length. Always refer to the applicable VRF service documentation for the specific system being tested.
