VRF Oil Recovery, Preheat & Defrost Control

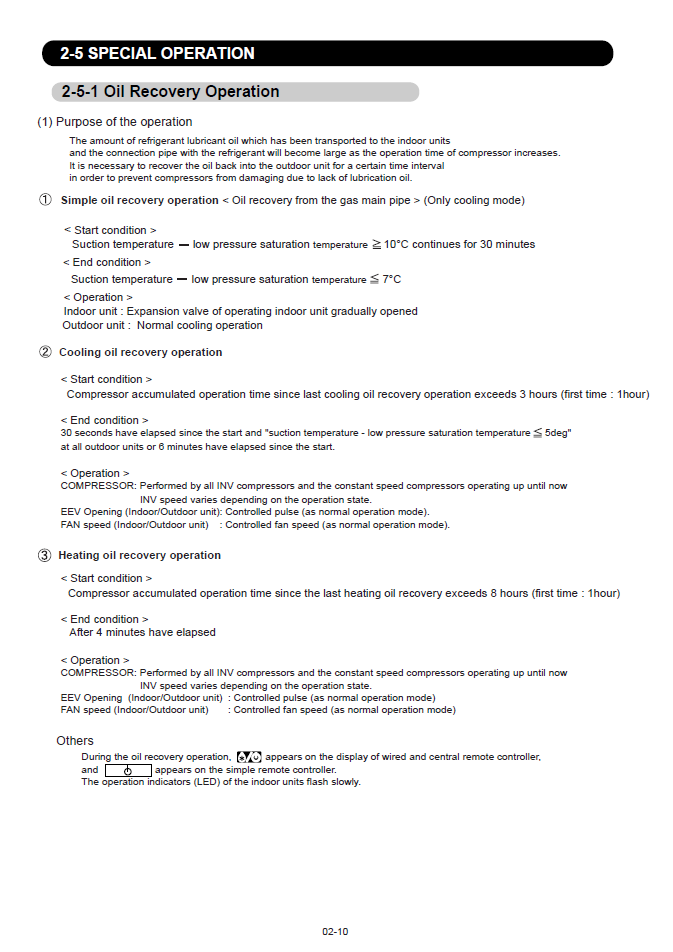

1. Oil Recovery Operation
Purpose
Refrigerant lubricant can accumulate in indoor units and connecting pipework. As the amount increases, compressor operating time can increase and the compressor may be damaged due to insufficient lubrication. Oil recovery returns oil to the outdoor unit at defined intervals.
1.1 Simple oil recovery — cooling only
| Start condition | Suction temperature − low-pressure saturation temperature ≥ 10°C continuously for 30 minutes. |
| End condition | Suction temperature − low-pressure saturation temperature ≤ 7°C. |
| Indoor unit operation | Expansion valve of the operating indoor unit is gradually opened. |
| Outdoor unit operation | Normal cooling operation. |
1.2 Cooling oil recovery
| Start condition | Compressor accumulated operating time since the last cooling oil recovery exceeds 3 hours. First oil recovery: 1 hour. |
| End condition | 30 seconds have elapsed since start and suction temperature − low-pressure saturation temperature ≤ 5°C at all outdoor units, or 6 minutes have elapsed since start. |
| Compressor | All inverter compressors operate together with any constant-speed compressors that were operating before oil recovery. Inverter speed varies with operating state. |
| EEV opening | Indoor/outdoor unit EEVs are controlled by pulse as in normal operation. |
| Fan speed | Indoor/outdoor fan speed is controlled as in normal operation. |
1.3 Heating oil recovery
| Start condition | Compressor accumulated operating time since the last heating oil recovery exceeds 8 hours. First oil recovery: 1 hour. |
| End condition | After 4 minutes have elapsed. |
| Compressor | All inverter compressors operate together with any constant-speed compressors that were operating before oil recovery. Inverter speed varies with operating state. |
| EEV opening | Indoor/outdoor unit EEVs are controlled by pulse as in normal operation. |
| Fan speed | Indoor/outdoor fan speed is controlled as in normal operation. |

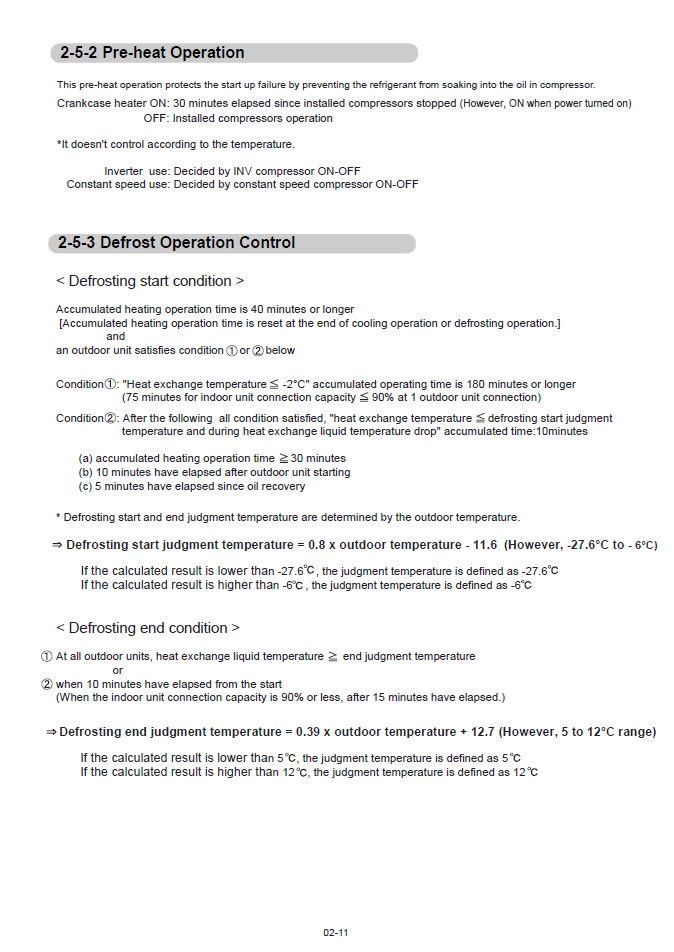

2. Preheat Operation
Preheat operation is intended to protect against start-up failure by preventing refrigerant from soaking into the compressor oil.
| Crankcase heater ON | 30 minutes after the installed compressors have stopped. The heater is also ON when power is first turned on. |
| Crankcase heater OFF | Installed compressors operating. |
| Temperature control | The source states that preheat operation does not control according to temperature. |
| Inverter compressor | Determined by inverter-compressor ON/OFF state. |
| Constant-speed compressor | Determined by constant-speed compressor ON/OFF state. |
3. Defrost Operation Control
3.1 Defrost start conditions
Defrost can start when accumulated heating operation time is 40 minutes or longer. Accumulated heating operation time is reset at the end of cooling operation or defrost operation.
Condition 1
Heat-exchanger temperature ≤ -2°C for an accumulated operating time of 180 minutes or longer. Where indoor-unit connection capacity is ≤ 90% at a 1-outdoor-unit connection, the source specifies 75 minutes.
Condition 2
After all of the following have been satisfied, the condition based on heat-exchanger temperature being below the defrost-start judgement temperature and heat-exchanger liquid-temperature drop must accumulate for 10 minutes:
- Accumulated heating operation time ≥ 30 minutes.
- 10 minutes have elapsed since the outdoor unit started.
- 5 minutes have elapsed since oil recovery.
3.2 Defrost start judgement temperature
- The judgement temperature is limited to the range -27.6°C to -6°C.
- If the calculated result is below -27.6°C, use -27.6°C.
- If the calculated result is above -6°C, use -6°C.
3.3 Defrost end conditions
Defrost ends when either of the following conditions is met:
- At all outdoor units, heat-exchanger liquid temperature ≥ the defrost end judgement temperature; or
- 10 minutes have elapsed from the start of defrost. Where indoor-unit connection capacity is 90% or less, the source specifies 15 minutes.
- The judgement temperature is limited to the range 5°C to 12°C.
- If the calculated result is below 5°C, use 5°C.
- If the calculated result is above 12°C, use 12°C.
4. Operating State During Defrost
| Component | State during defrost |
|---|---|
| Indoor unit EEV | Open |
| Indoor unit fan | Stop |
| Outdoor unit fan | Stop |
| Compressor | In operation |

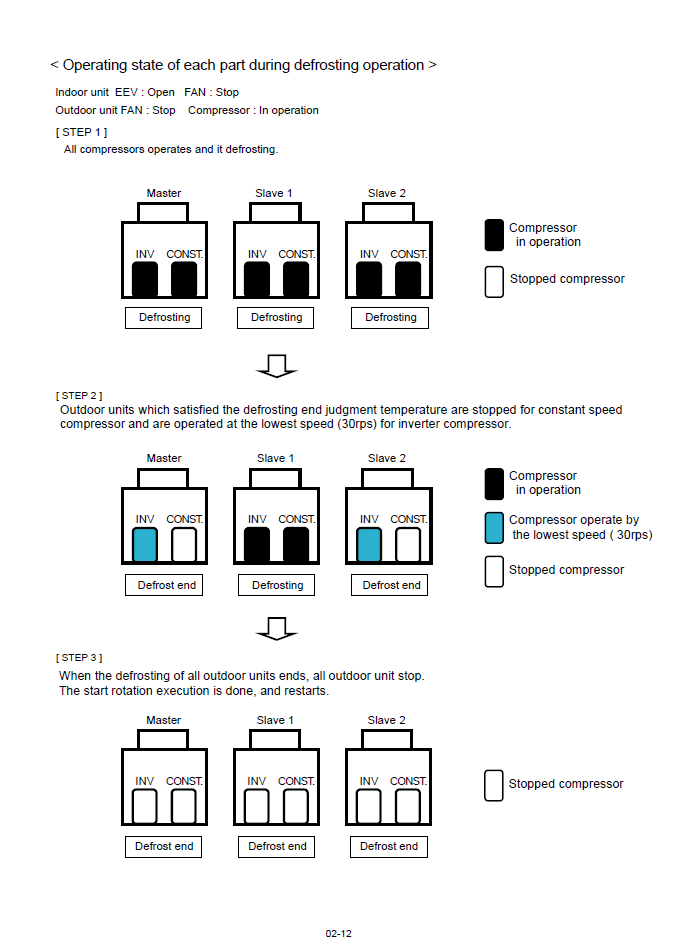

Step 1 — Defrosting
All compressors operate and all outdoor units are defrosting.
| Outdoor unit | Inverter compressor | Constant-speed compressor | Status |
|---|---|---|---|
| Master | Operating | Operating | Defrosting |
| Slave 1 | Operating | Operating | Defrosting |
| Slave 2 | Operating | Operating | Defrosting |
Step 2 — Individual outdoor units complete defrost
An outdoor unit that satisfies the defrost-end judgement temperature stops its constant-speed compressor and operates its inverter compressor at the lowest speed (30 rps) while other outdoor units continue defrosting.
| Example unit | Inverter compressor | Constant-speed compressor | Status |
|---|---|---|---|
| Master | 30 rps | Stopped | Defrost end |
| Slave 1 | Operating | Operating | Defrosting |
| Slave 2 | 30 rps | Stopped | Defrost end |
Step 3 — Defrost complete
When defrosting has ended on all outdoor units, all outdoor units stop. Start-rotation execution is then performed and the system restarts.
