Simplified VRF Explanation

What VRF is, how it works, and why it is used
VRF stands for Variable Refrigerant Flow. It is a building air-conditioning system that uses refrigerant piping to connect one or more outdoor units to multiple indoor units, allowing many zones to be conditioned from a common system.

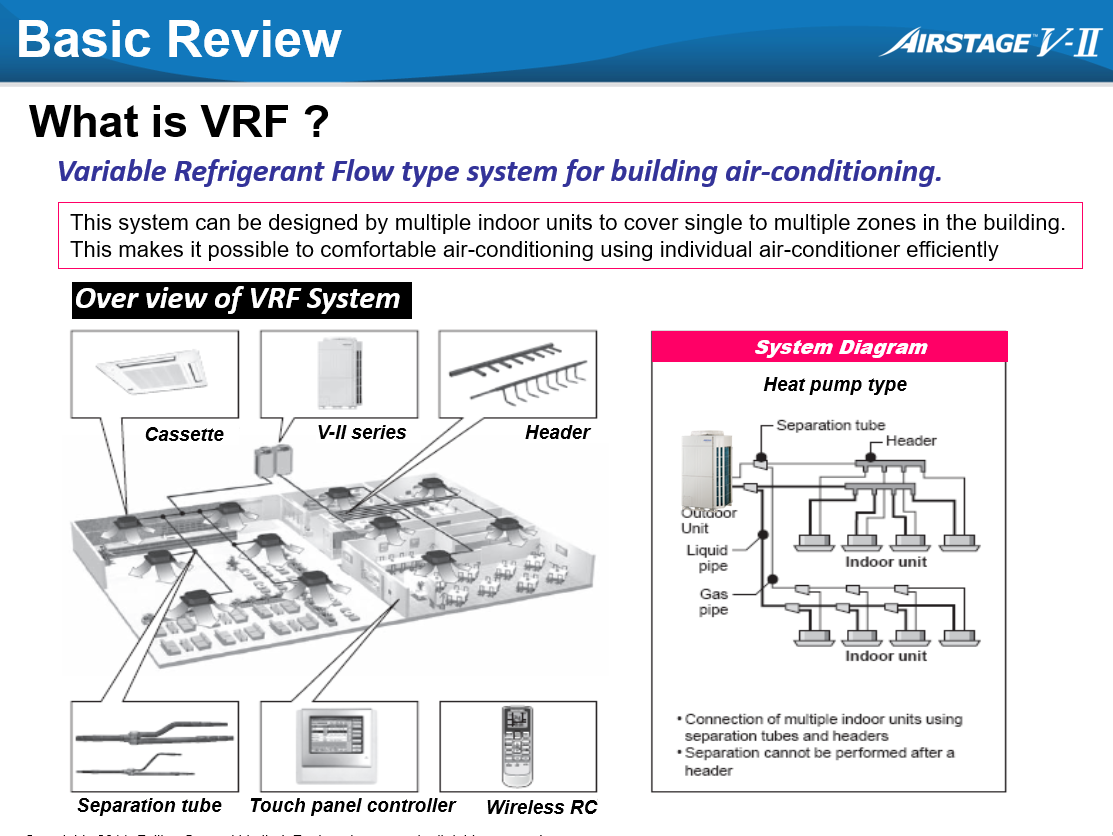

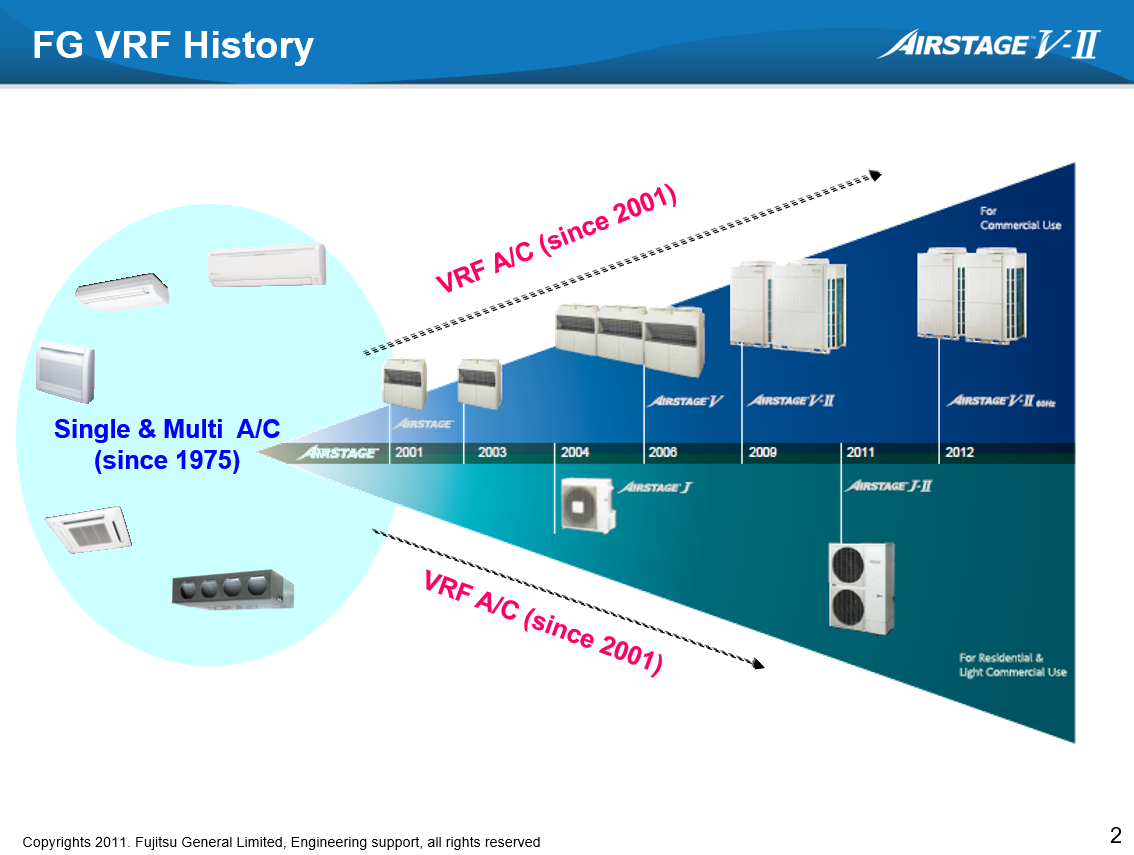

What is VRF?

VRF is a Variable Refrigerant Flow type system for building air-conditioning.

A VRF system can be designed with multiple indoor units to serve single or multiple zones throughout a building. This allows individual air-conditioning of many spaces while using a shared refrigerant system.

Typical VRF ComponentPurpose
Outdoor unitProvides the refrigerant capacity for the connected indoor units.
Indoor unitsCondition individual rooms or zones. Different indoor unit styles can be used.
Separation tubes / headersDistribute refrigerant to multiple indoor units.
ControllersProvide individual or centralised control of the system.

Simplified System Layout

In a typical heat pump VRF system:

  • The outdoor unit supplies refrigerant through liquid and gas piping.
  • Separation tubes and headers divide the refrigerant circuit to multiple indoor units.
  • Each indoor unit provides air-conditioning to its own room or zone.
  • Individual controllers or central controllers can be used depending on the project design.
Design note: The original training material notes that multiple indoor units can be connected using separation tubes and headers, and that further separation cannot be performed after a header.

Why Use a VRF System?

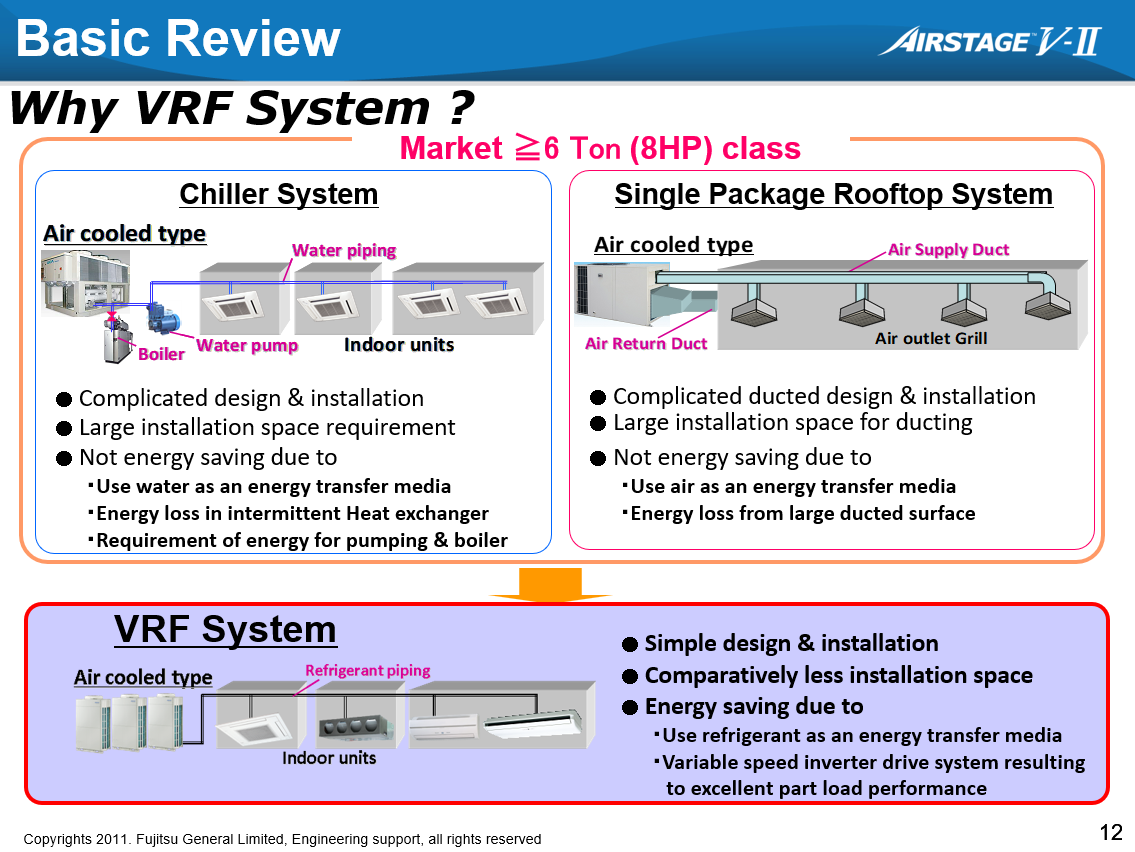

The training material compares VRF with air-cooled chillers and single-package rooftop systems.

System TypeEnergy Transfer MediumTraining Material Summary
Air-Cooled ChillerWaterMore complex installation, larger installation space, pumping energy required and heat-exchanger losses.
Single Package RooftopAirRequires ducted distribution, larger duct installation space and can have energy loss through large duct surfaces.
VRFRefrigerantSimpler installation, comparatively less installation space and strong part-load performance through variable-speed inverter control.

Main VRF Advantages

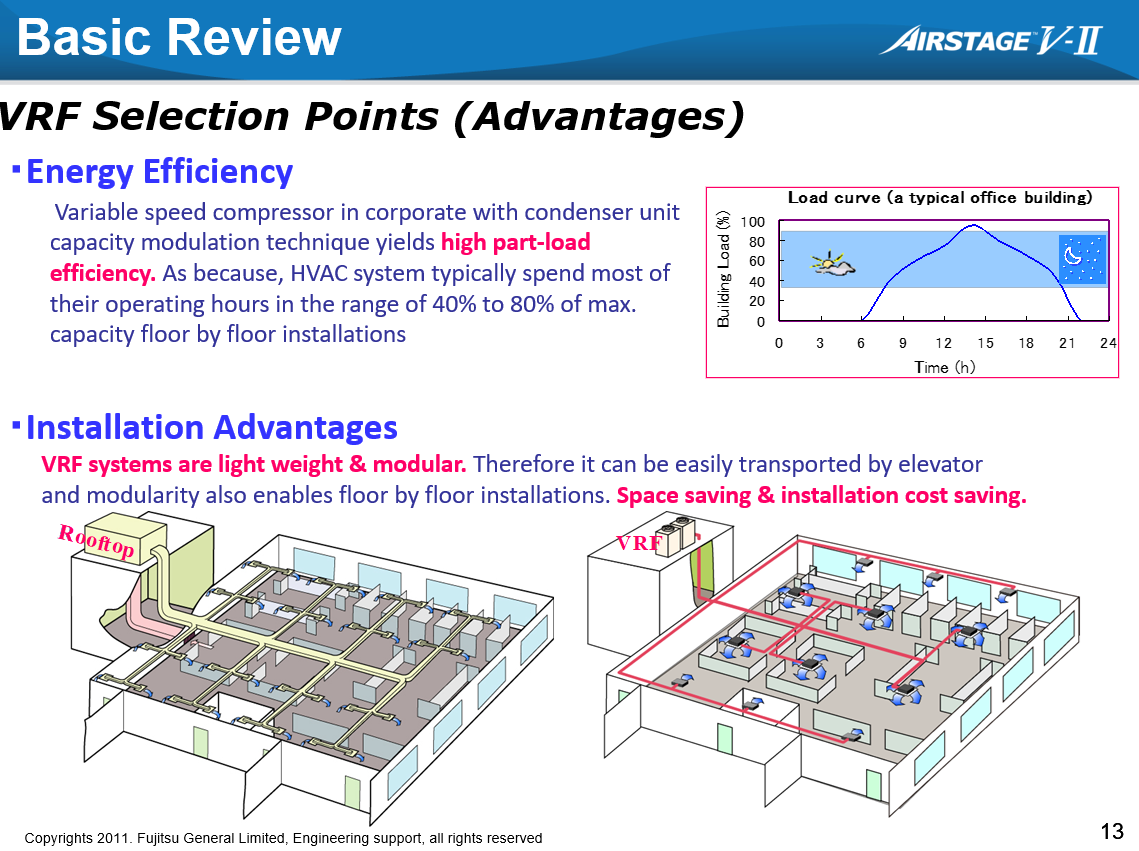

1. Energy Efficiency

Variable-speed compressor control allows system capacity to increase or decrease to suit the building load.

The training material highlights that HVAC systems often operate for long periods at approximately 40% to 80% of maximum capacity. VRF systems are designed to achieve high efficiency under these part-load conditions.

2. Installation Advantages

  • VRF systems are comparatively lightweight and modular.
  • Equipment can be easier to transport within a building.
  • Modular design can support floor-by-floor installation.
  • Refrigerant piping generally requires less space than large duct or water-pipe distribution systems.

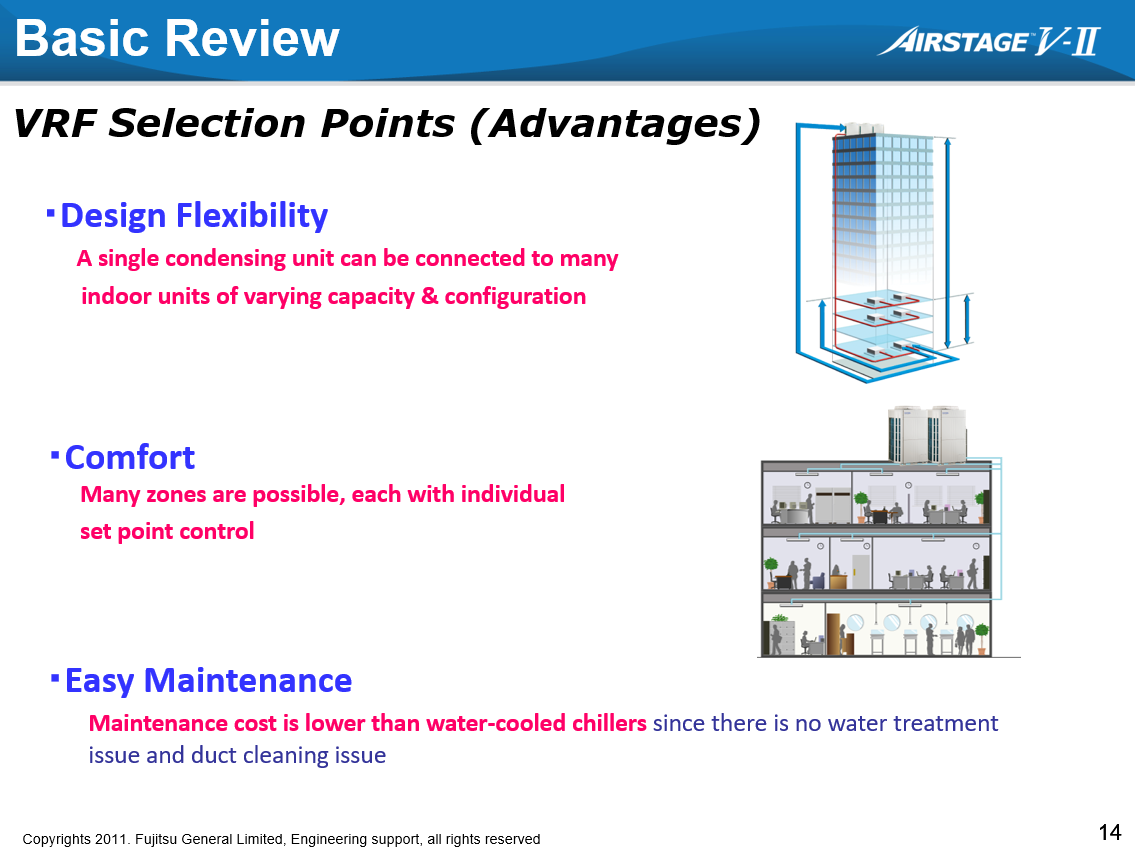

3. Design Flexibility

A single condensing system can be connected to many indoor units of different capacities and configurations.

4. Comfort

Multiple zones can be created, with each zone able to have its own individual set-point control.

5. Easier Maintenance

The training material notes that VRF can avoid some maintenance requirements associated with water-cooled systems, such as water treatment, and can reduce issues associated with large duct systems.

Key VRF Features

  • Broad product line-up
  • High-efficiency operating system
  • Installation flexibility
  • Improved comfort and convenience
  • Ease of installation and maintenance
  • User-friendly control systems

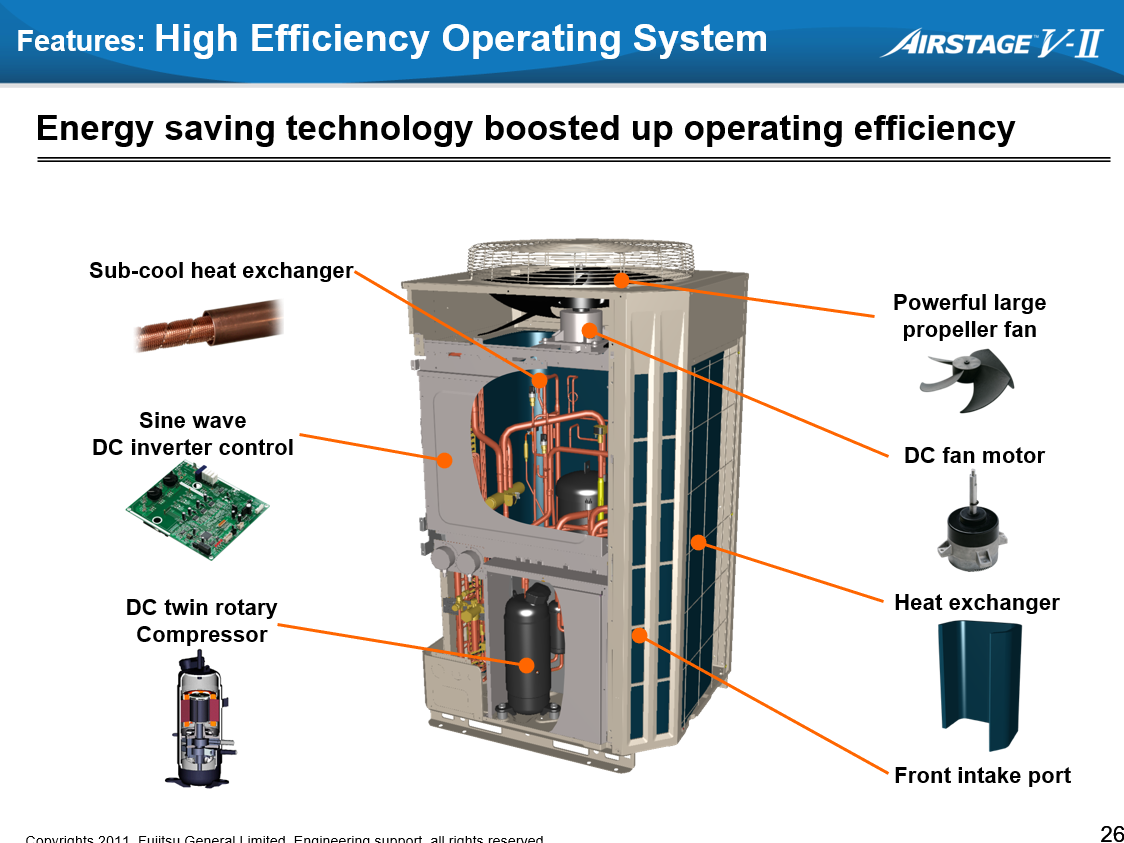

High-Efficiency Outdoor Unit Technology

The training material identifies a number of technologies used to improve operating efficiency:

TechnologyRole
Sub-cool heat exchangerSupports refrigerant-side efficiency.
Sine-wave DC inverter controlModulates compressor output to match system load.
DC twin rotary compressorVariable-speed compressor technology used for efficient capacity control.
Large propeller fanMoves outdoor air through the heat exchanger.
DC fan motorProvides efficient variable-speed fan operation.
Heat exchangerTransfers heat between the refrigerant and outdoor air.
Front intake portSupports airflow through the outdoor unit.

Simple Explanation for Customers

VRF is a large multi-split air-conditioning system. One or more outdoor units supply refrigerant to many indoor units throughout a building. Each indoor unit can serve a separate zone, while the inverter system adjusts its output to match how much heating or cooling the building actually needs.

Key Takeaways

  • VRF means Variable Refrigerant Flow.
  • It uses refrigerant as the energy-transfer medium.
  • One system can serve many indoor units and zones.
  • Inverter control allows capacity to vary with building demand.
  • VRF offers strong part-load efficiency and design flexibility.
  • It generally requires less distribution space than large duct or water-based systems.
Note: This is a simplified training explanation. Actual VRF design, piping, capacity selection, controls and installation requirements must be confirmed using the applicable design and technical documentation.
