General Assist Technical Reference
Wired Remote Controller Connecting Cable
VRF high wall indoor units
Cable selection for ASYA07–30GACH models
A dedicated connecting cable is required when installing a wired remote controller on applicable Fujitsu VRF high wall indoor units. The cable links the indoor unit printed circuit board (PCB) to the wired remote controller connection point.
1. Applicable models and part numbers
| Indoor Unit Model Range | Description | Part Number |
|---|---|---|
| ASYA18GACH to ASYA30GACH | Connecting cable for wired remote controller installation | 9708582016 |
| ASYA07GACH to ASYA14GACH | Connecting cable for wired remote controller installation | 9707476019 |
Important: Confirm the complete indoor unit model before ordering. The two cable assemblies are not interchangeable across the listed model ranges.
2. Installation notes
- Use the connecting cable between the indoor unit PCB and the wired remote controller connection terminals.
- One connecting cable is required for each indoor unit fitted with a wired remote controller.
- Do not substitute the specified cable with a generic plug or field-made harness.
- Incorrect wiring or an unsuitable cable may cause communication errors or controller malfunction.
- Isolate power to the indoor unit before connecting or disconnecting the cable.
- Refer to the applicable indoor unit and wired remote controller installation manuals for terminal location and controller setup.

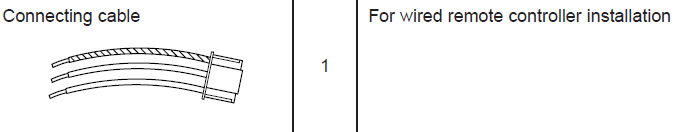

Connecting cable
For wired remote controller installation
3. Quick reference
| ASYA18–30GACH | Use connecting cable 9708582016 |
| ASYA07–14GACH | Use connecting cable 9707476019 |
Parts ordering: Provide the complete indoor unit model and the required cable part number when placing an order.
Technical information should be confirmed against the latest product documentation before installation or service work.
