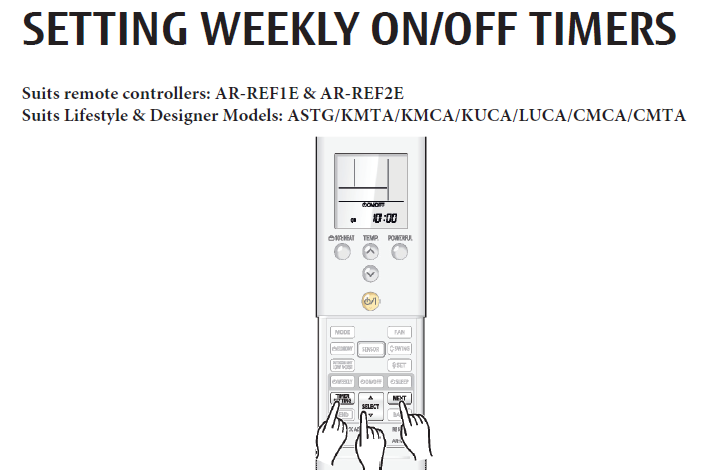

Fujitsu Air Conditioner Remote Control SETTING THE WEEKLY TIMER ON/OFF FOR EVERY DAY
1. Reset clock and date and make sure that you hear a beep from the unit to ensure that time has been set.
2. Press TIMER SETTING (weekly will flash on the screen).
3. Press NEXT (1 along with every day of the week will flash on the screen).
4. Press NEXT (send will flash by itself on the screen).
5. Press the UP arrow on the SELECT button (on will flash on the screen).
6. Press NEXT (on time will flash on the screen).
7. Press the UP arrow on the select button to set the time.
8. Press NEXT (temp will flash on the screen) use temp UP/DOWN button to set the temp.
9. Press NEXT and 1 with every day of the week will flash.
10. Press SELECT UP arrow until 2 along with every day of the week is flashing.
11. Press NEXT (send will flash by itself on the screen).
12. Press the UP arrow on the select button so off appears.
13. Press NEXT (off time will flash on the screen).
14. Press the UP arrow on the SELECT button to set the time.
15. If no other programs are required to be set press the SEND button and a beep from the unit will be heard to confirm the settings.
16. This will now turn the unit on and off every day of the week at the set times and weekly with a clock beside it will appear on the screen.
17. To set a second on and off time repeat the above steps using programs 3 & 4 instead of 1 & 2 and on completion press the SEND button. To deactivate and reactivate the timer press the WEEKLY button.
