General Assist Technical Reference
IPM Change
Replacement IPM part numbers by outdoor unit model
Use this reference when identifying the superseded and replacement IPM assembly for the models listed below.
Purpose: The following table lists the old IPM part number, replacement IPM part number, applicable serial number information and production date information shown in the source reference.
Important: Confirm the complete outdoor unit model and serial number before ordering parts. Where the source shows a dash or does not provide a value, no additional applicability information has been added to this article.

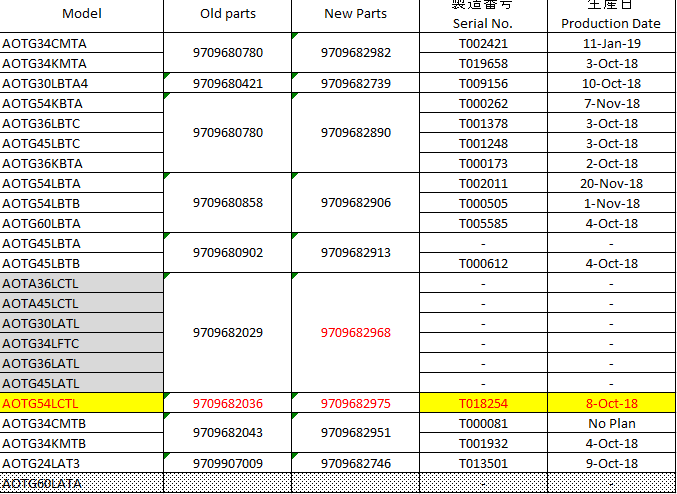

IPM replacement part number reference
| Model | Old Part No. | New Part No. | Serial No. | Production Date |
|---|---|---|---|---|
| AOTG34CMTA | 9709680780 | 9709682982 | T002421 | 11-Jan-19 |
| AOTG34KMTA | 9709680780 | 9709682982 | T019658 | 3-Oct-18 |
| AOTG30LBTA4 | 9709680421 | 9709682739 | T009156 | 10-Oct-18 |
| AOTG54KBTA | 9709680780 | 9709682890 | T000262 | 7-Nov-18 |
| AOTG36LBTC | 9709680780 | 9709682890 | T001378 | 3-Oct-18 |
| AOTG45LBTC | 9709680780 | 9709682890 | T001248 | 3-Oct-18 |
| AOTG36KBTA | 9709680780 | 9709682890 | T000173 | 2-Oct-18 |
| AOTG54LBTA | 9709680858 | 9709682906 | T002011 | 20-Nov-18 |
| AOTG54LBTB | 9709680858 | 9709682906 | T000505 | 1-Nov-18 |
| AOTG60LBTA | 9709680858 | 9709682906 | T005585 | 4-Oct-18 |
| AOTG45LBTA | 9709680902 | 9709682913 | - | - |
| AOTG45LBTB | 9709680902 | 9709682913 | T000612 | 4-Oct-18 |
| AOTA36LCTL | 9709682029 | 9709682968 | - | - |
| AOTA45LCTL | 9709682029 | 9709682968 | - | - |
| AOTG30LATL | 9709682029 | 9709682968 | - | - |
| AOTG34LFTC | 9709682029 | 9709682968 | - | - |
| AOTG36LATL | 9709682029 | 9709682968 | - | - |
| AOTG45LATL | 9709682029 | 9709682968 | - | - |
| AOTG54LCTL | 9709682036 | 9709682975 | T018254 | 8-Oct-18 |
| AOTG34CMTB | 9709682043 | 9709682951 | T000081 | No Plan |
| AOTG34KMTB | 9709682043 | 9709682951 | T001932 | 4-Oct-18 |
| AOTG24LAT3 | 9709907009 | 9709682746 | T013501 | 9-Oct-18 |
| AOTG60LATA | Not specified | Not specified | - | - |
Reference notes
- The source identifies these as new part numbers for replacement IPM assemblies.
- Part numbers shown in the New Part No. column supersede the corresponding old part number for the listed model.
- Serial number and production date information has been reproduced exactly as shown in the source.
- No Plan is retained exactly as stated in the source for AOTG34CMTB.
- For AOTG60LATA, the source does not show an old or replacement part number.
Parts ordering: Always verify the current parts system or latest service information before ordering, particularly where a model has a serial-number or production-date transition.
