Service Bulletin - MFE-22AVL / 22AVAL / 28TVL / 28TVAL Series Fan Motor
Improved fan motor for increased electrolytic corrosion resistance and reduction of abnormal fan motor noise
Source: Service Bulletin RAC-0086 | Issued 22 November 2018
Fujitsu General introduced revised MFE-series fan motors to improve resistance to electrolytic corrosion. The modification was intended to reduce occurrences of abnormal noise generated by the fan motor.
Important: Orders placed for the superseded service parts are automatically changed to the applicable revised service part.
1. Fan motor part number supersession
| Current fan motor | Current part no. | Supersedes to | New fan motor | New part no. |
|---|---|---|---|---|
| MFE-22AVAL | 9603074012 | → | MFE-22AVAL(D) | 9603074043 |
| MFE-22AVL | 9603074005 | → | MFE-22AVL(D) | 9603074036 |
| MFE-28TVL | 9602664009 | → | MFE-22AVL(D) | 9603074036 |
| MFE-28TVAL | 9602664016 | → | MFE-22AVL(D) | 9603074036 |
Parts ordering: A purchase order raised against an old service part number is automatically changed to the corresponding revised service part.
2. What changed?

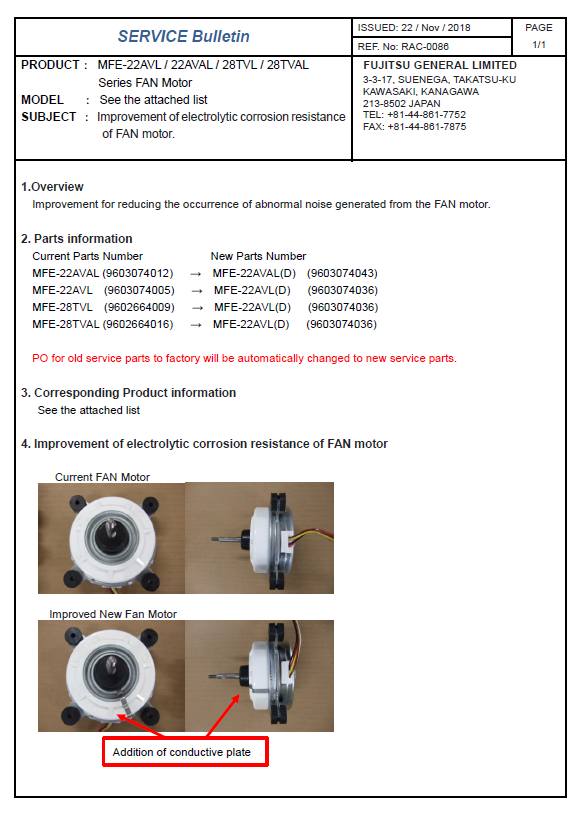

The revised fan motor incorporates an additional conductive plate. This modification improves the motor's resistance to electrolytic corrosion.
| Item | Details |
|---|---|
| Original motor | Earlier MFE-series fan motor design. |
| Revised motor | Updated motor identified by the revised part number and the addition of a conductive plate. |
| Reason for modification | Improved electrolytic corrosion resistance and reduced occurrence of abnormal fan motor noise. |

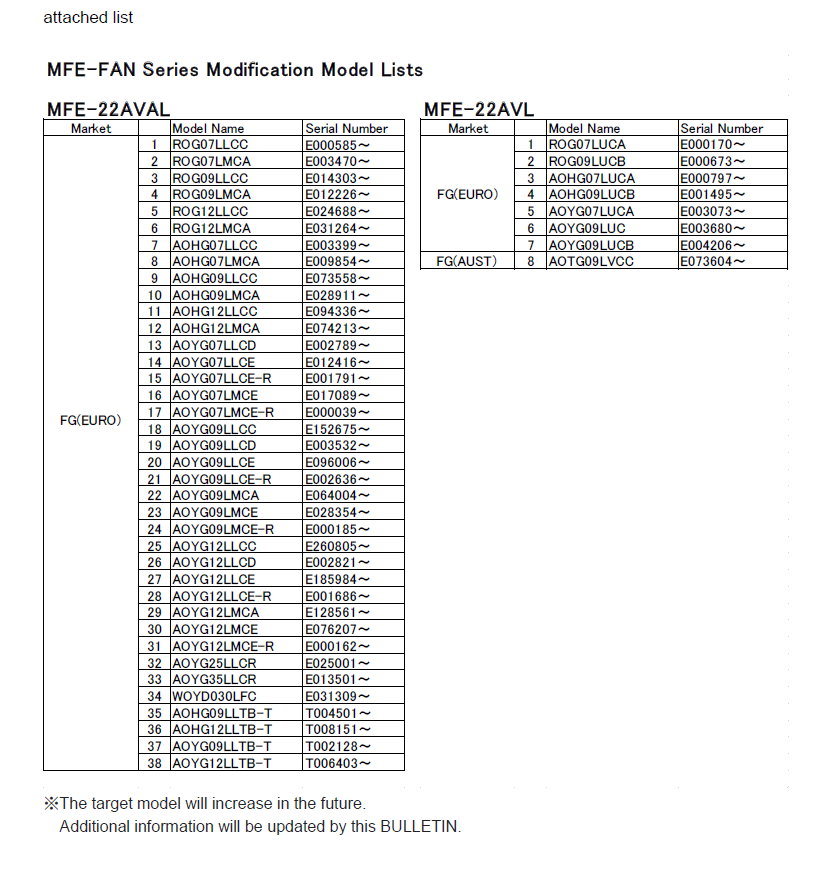

3. Australian model listed in the bulletin
FG (AUST)
AOTG09LVCC
Fan motor series: MFE-22AVL
Serial number: E073604~
The bulletin's attached modification list identifies AOTG09LVCC for the Australian market. The serial notation shown is E073604~.
Model list note: The source bulletin states that the target model list may increase in the future and that additional information may be issued by bulletin update.
4. Service guidance
| 1 | If investigating abnormal outdoor fan motor noise on an applicable model, identify the fitted fan motor and its service part number. |
| 2 | Where the original motor part number is fitted and replacement is required, use the applicable revised part shown in the supersession table above. |
| 3 | For Australian AOTG09LVCC units, confirm the unit serial number against the bulletin listing before applying this bulletin. |
| 4 | Do not treat this bulletin as confirmation that every fan noise complaint is caused by electrolytic corrosion. Complete normal fan motor, fan blade, mounting and electrical checks before replacing parts. |
Technician note: This bulletin documents a service-part improvement. It does not provide a standalone diagnostic test or state that all fan motor noise requires motor replacement.
Reference: Service Bulletin RAC-0086 - MFE-22AVL / 22AVAL / 28TVL / 28TVAL Series FAN Motor - issued 22 November 2018.
