J-III Series VRF System
System overview, outdoor-unit lineup and compatible indoor-unit families
Approximate Australian and New Zealand product era: late 2010s onward
The J-III Series is a compact Variable Refrigerant Flow system intended for light to mid-sized commercial applications, including retail, offices, hospitality, multi-unit residential and other multi-zone projects.
Model confirmation is essential: Always confirm the complete outdoor and indoor model numbers before selecting manuals, parts, controllers, capacity combinations or commissioning procedures. Similar model prefixes can belong to different generations.
1. Key technical highlights
| Feature | J-III Series reference |
|---|---|
| System type | Heat-pump VRF / multi-split system for multiple indoor units |
| Outdoor capacity range shown | 4 HP, 5 HP and 6 HP |
| Nominal cooling range shown | 12.1 kW to 15.5 kW |
| Nominal heating range shown | 13.6 kW to 18.0 kW |
| Maximum indoor units | 8 to 10, depending on outdoor model |
| Refrigerant | R410A for the referenced lineup |
| Typical applications | Retail, offices, restaurants, small commercial premises and multi-zone residential projects |
Release-era guidance: The J-III platform and its related J-III L development were introduced internationally from approximately 2017–2019. Australian and New Zealand availability may have varied by model and stock timing.
2. Outdoor-unit lineup

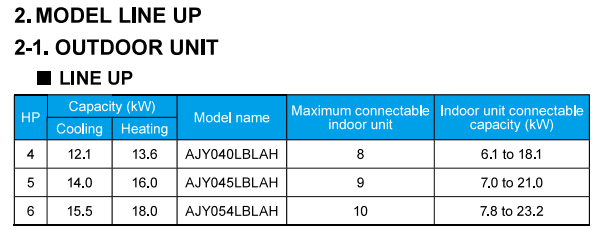

| HP | Cooling capacity | Heating capacity | Outdoor model | Maximum indoor units | Connectable indoor capacity |
|---|---|---|---|---|---|
| 4 | 12.1 kW | 13.6 kW | AJY040LBLAH | 8 | 6.1–18.1 kW |
| 5 | 14.0 kW | 16.0 kW | AJY045LBLAH | 9 | 7.0–21.0 kW |
| 6 | 15.5 kW | 18.0 kW | AJY054LBLAH | 10 | 7.8–23.2 kW |
The connectable indoor-unit capacity is a combination range, not the capacity of a single indoor unit. Confirm diversity limits and combination rules in the applicable design and installation documentation.
3. Compatible indoor-unit families

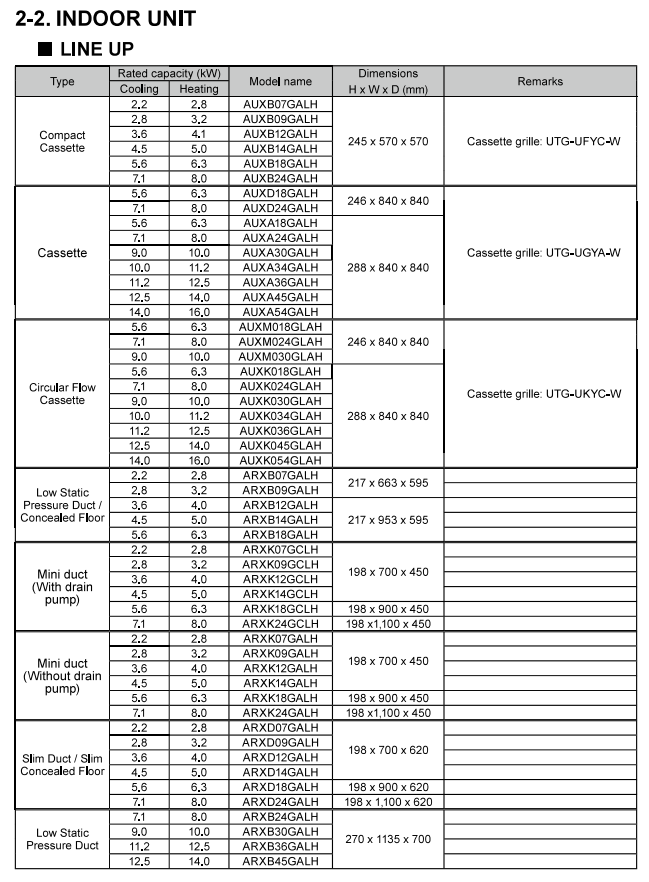

| Indoor type | Model families shown | Typical capacity range shown |
|---|---|---|
| Compact cassette | AUXB07–24GALH | 2.2–7.1 kW cooling |
| Cassette | AUXD18/24GALH, AUXA18–54GALH | 5.6–14.0 kW cooling |
| Circular-flow cassette | AUXM18–30GLAH, AUXK18–54GLAH | 5.6–14.0 kW cooling |
| Low-static concealed floor / duct | ARXB07–18GALH | 2.2–5.6 kW cooling |
| Mini duct with drain pump | ARXK07–24GCLH | 2.2–7.1 kW cooling |
| Mini duct without drain pump | ARXK07–24GALH | 2.2–7.1 kW cooling |
| Slim duct / slim concealed floor | ARXD07–24GALH | 2.2–7.1 kW cooling |
| Low-static pressure duct | ARXB24–45GALH | 7.1–12.5 kW cooling |
| Medium-static pressure duct | ARXA24–45GALH / GBLH | 7.1–12.5 kW cooling |
| High-static pressure duct | ARXC36–45GTH | 11.2–12.5 kW cooling |
| Floor / ceiling | ABYA12–24GATH | 3.6–7.1 kW cooling |
| Ceiling | ABYA30–54GATH | 9.0–14.0 kW cooling |
| Compact floor | AGYA07–14GCAH | 2.2–4.0 kW cooling |
| Compact floor with external EEV | AGYE07–14GCAH | 2.2–4.0 kW cooling |
| Wall mounted | ASYA07–34GACH / GCGH / GTAH and ASYB18–24GBCH | 2.2–10.0 kW cooling |
| Wall mounted with external EEV | ASYE07–14GCEH / GCAH and ASYE07–14GTEH / GCGH | 2.2–4.5 kW cooling |
Cassette grille references
| Indoor family | Grille reference |
|---|---|
| Compact cassette AUXB | UTG-UFYC-W |
| Cassette AUXD / AUXA | UTG-UGYA-W |
| Circular-flow cassette AUXM / AUXK | UTG-UKYC-W |
External EEV references
| Capacity class | External EEV kit |
|---|---|
| 07 / 09 class | UTR-EV09XB |
| 12 / 14 class | UTR-EV14XB |
4. Design and selection notes
| 1 | Confirm the exact outdoor model. The maximum indoor-unit count and connectable capacity range differ between AJY040LBLAH, AJY045LBLAH and AJY054LBLAH. |
| 2 | Check indoor-unit family and suffix. AUXA, AUXB, AUXD, AUXK, ARXA, ARXB, ARXC, ARXD, ARXK, AGYA, AGYE, ASYA and ASYE are different product families. |
| 3 | Apply combination rules. The total connected indoor capacity must remain within the approved range for the outdoor model. |
| 4 | Confirm controls and accessories. Cassette grilles, external EEV kits, remote controllers and communication accessories are model-specific. |
| 5 | Use the correct commissioning procedure. Addressing, refrigerant-system setup and capacity checks must be completed in accordance with the applicable J-III commissioning manual. |
Important correction: The 4–6 HP J-III outdoor models shown here support a maximum of 8, 9 or 10 indoor units. References to 40 indoor units relate to larger-capacity or different J-III L configurations and must not be applied to these models.
5. Quick model-identification guide
| Prefix | Typical product type |
|---|---|
| AJY | VRF outdoor unit |
| AUX | Cassette indoor unit |
| ARX | Ducted / concealed indoor unit |
| ABY | Floor / ceiling or ceiling indoor unit |
| AGY | Compact floor indoor unit |
| ASY | Wall-mounted indoor unit |
This article is a practical model-lineup reference based on the supplied J-III Series product tables. It does not replace the applicable design, installation, service or commissioning manuals. Product availability and compatible combinations may vary by market and release period.
