How to Obtain the SSID of a Wi-Fi Module
Three ways to identify the Wi-Fi adaptor network name
The SSID is the Wi-Fi network name broadcast by the Fujitsu General / AIRSTAGE Wi-Fi adaptor. It is normally shown in the format AC-UTY-XXXXXXXXXXXX and can be found using one of the three methods below.
Option 1 – Check the sticker on the indoor unit

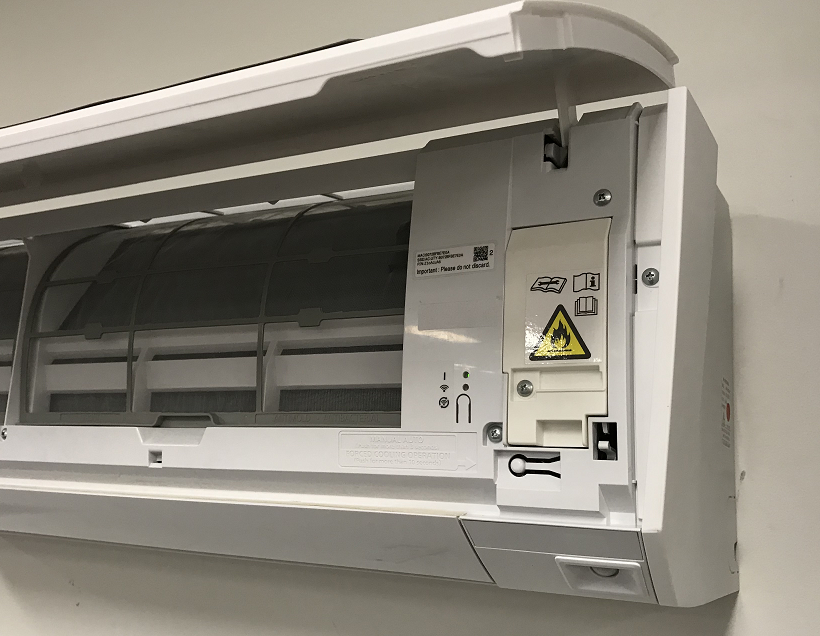

The installer should place the Wi-Fi identification sticker on the indoor unit during installation. On wall-mounted indoor units it is generally located under the front cover, near the Wi-Fi adaptor access area.
The label normally contains:
- MAC address
- SSID
- PIN
- A QR code

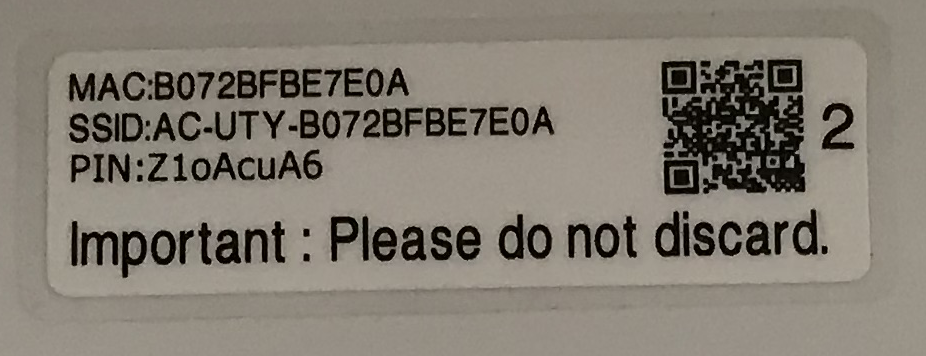

Example:
SSID: AC-UTY-B072BFBE7E0A
SSID: AC-UTY-B072BFBE7E0A
Important: The Wi-Fi identification sticker should be retained. It contains information that may be required for setup, reconnection or support.

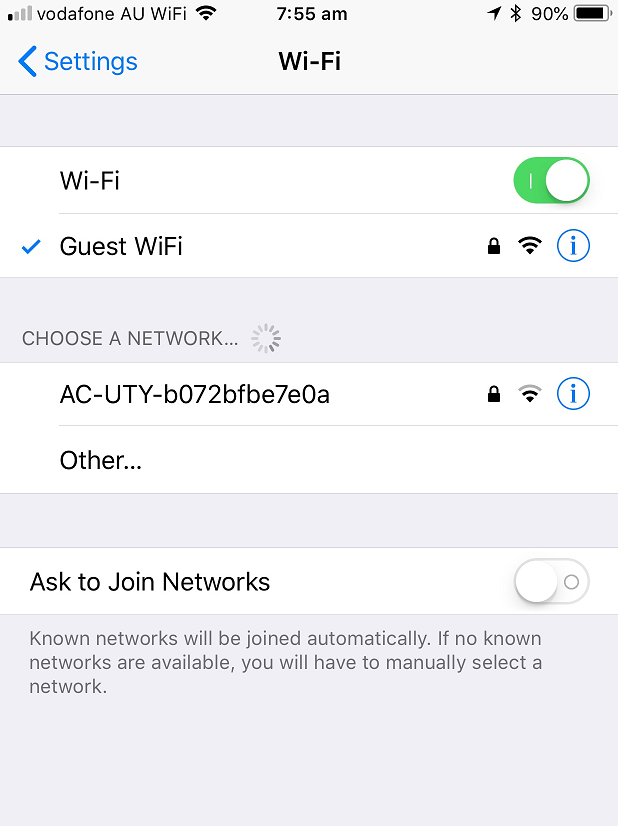

Option 2 – Find the SSID in the phone Wi-Fi settings
This is generally the easiest method when the Wi-Fi module is powered and broadcasting its setup network.
- Stand close to the indoor unit. For best results, remain within approximately 2 metres of the Wi-Fi module.

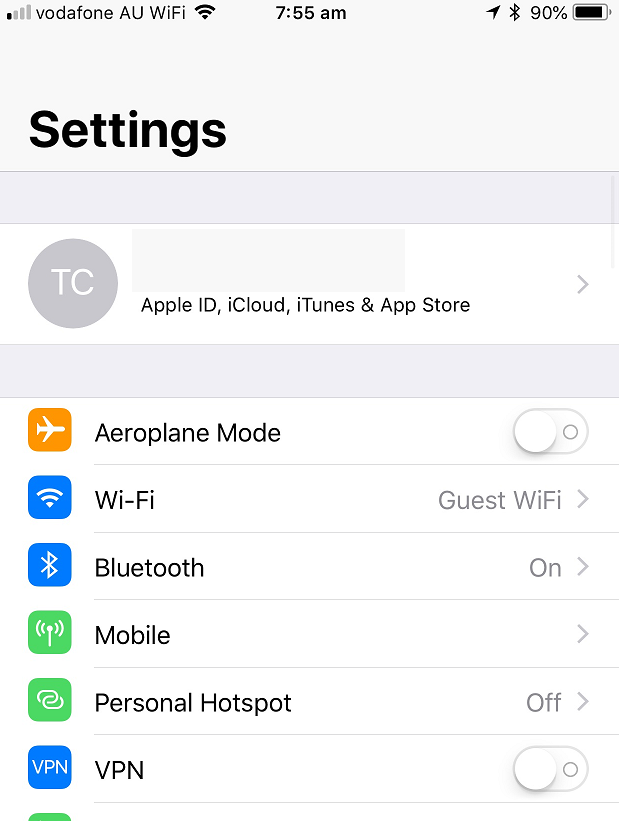

- Open Settings on the phone or tablet.
- Open Wi-Fi or Wireless Networks.
- Allow the available network list to refresh.
- Look for a network beginning with AC-UTY-.
- The complete network name shown is the Wi-Fi module's SSID.
| What you may see | Meaning |
|---|---|
| AC-UTY-B072BFBE7E0A | Example Wi-Fi module SSID |
| No AC-UTY network visible | Confirm the adaptor is powered and in the appropriate setup/broadcast mode, then refresh the Wi-Fi list. |

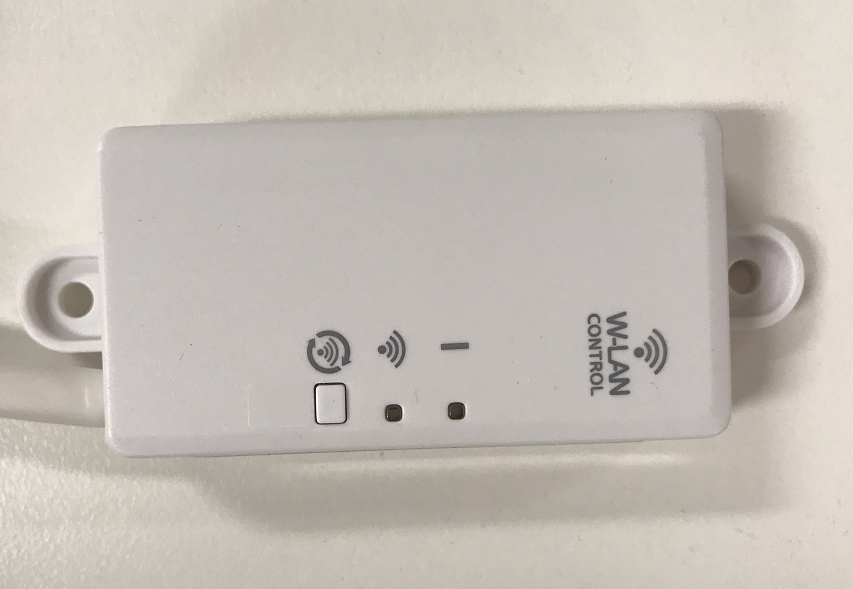

Option 3 – Read the label on the Wi-Fi adaptor

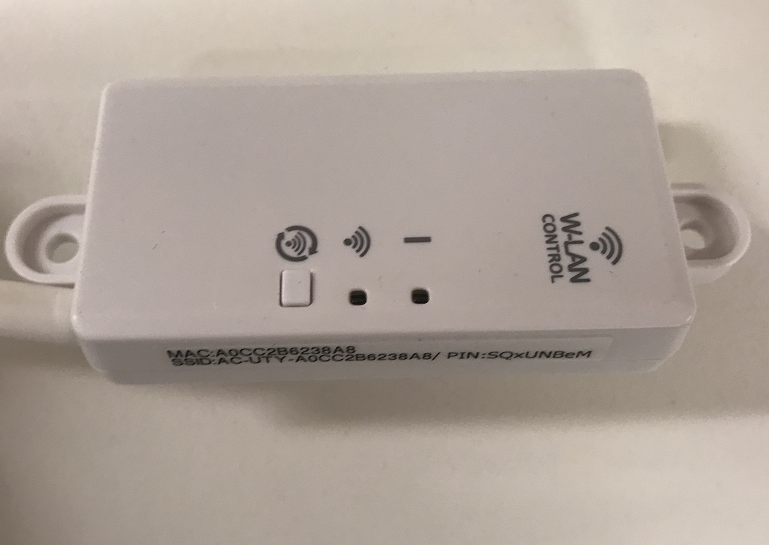

If the sticker is missing and the SSID cannot be identified from the phone's Wi-Fi list, the identification details are also printed on the side of the Wi-Fi adaptor itself.
Technician / installer action: Removal of the Wi-Fi adaptor from the indoor unit should only be performed by an appropriately qualified person. Isolate power before accessing or removing components where required by the product instructions.
- Have the installer or technician access the Wi-Fi adaptor.
- If necessary, remove the adaptor sufficiently to view the side identification label.
- Read the line beginning with SSID:.
- Record the complete SSID exactly as printed.

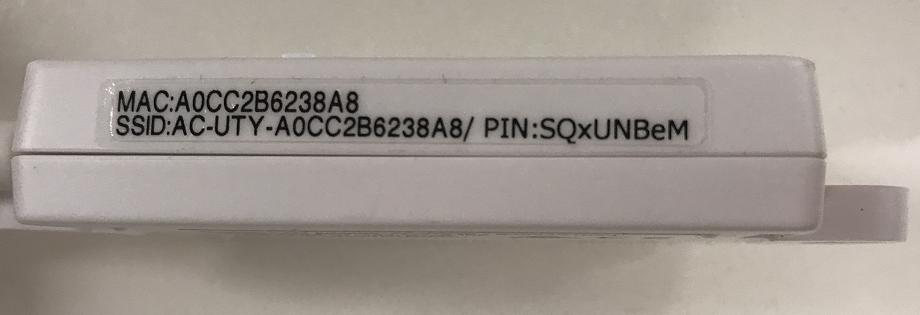

Typical label format:
MAC: A0CC2B6238A8
SSID: AC-UTY-A0CC2B6238A8
PIN: [printed on adaptor label]
MAC: A0CC2B6238A8
SSID: AC-UTY-A0CC2B6238A8
PIN: [printed on adaptor label]
Quick reference
| Method | Where to look | Recommended use |
|---|---|---|
| 1 | Identification sticker under the indoor unit front cover | Use when the installer sticker is present |
| 2 | Available Wi-Fi networks on a phone or tablet | Preferred / easiest method |
| 3 | Label printed on the side of the Wi-Fi adaptor | Use when the sticker is missing and the SSID is not visible on the mobile device |
Key point: If the Wi-Fi module is powered and broadcasting, checking the available Wi-Fi networks on a nearby mobile device is usually the quickest way to obtain the SSID.
3. Have the installer remove the WiFi adaptor from the indoor unit provided you are within range of the Wifi module (2m). The SSID is recorded on the side of the WiFi Adaptor
