Capacity Switches for G Model VRF Indoor Units
Indoor unit capacity DIP-switch reference
Use this reference to identify the factory capacity setting represented by SW1 (SET1) and SW2-1 on applicable G model VRF indoor units.
Important: The source specifically states “Never change at the site” and identifies indoor-unit capacity setting as setting forbidden. These values are for identification and verification only. Do not alter the factory capacity DIP-switch setting in the field.

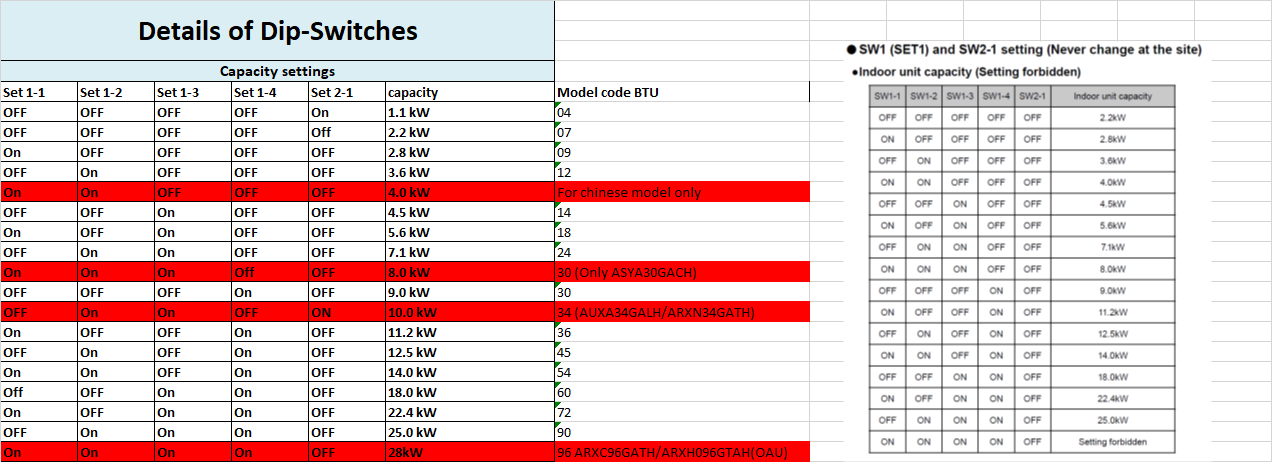

Capacity DIP-Switch Settings
| SW1-1 | SW1-2 | SW1-3 | SW1-4 | SW2-1 | Capacity | Model Code / Application |
|---|---|---|---|---|---|---|
| OFF | OFF | OFF | OFF | ON | 1.1 kW | 04 |
| OFF | OFF | OFF | OFF | OFF | 2.2 kW | 07 |
| ON | OFF | OFF | OFF | OFF | 2.8 kW | 09 |
| OFF | ON | OFF | OFF | OFF | 3.6 kW | 12 |
| ON | ON | OFF | OFF | OFF | 4.0 kW | For Chinese model only |
| OFF | OFF | ON | OFF | OFF | 4.5 kW | 14 |
| ON | OFF | ON | OFF | OFF | 5.6 kW | 18 |
| OFF | ON | ON | OFF | OFF | 7.1 kW | 24 |
| ON | ON | ON | OFF | OFF | 8.0 kW | 30 — Only ASYA30GACH |
| OFF | OFF | OFF | ON | OFF | 9.0 kW | 30 |
| OFF | ON | ON | OFF | ON | 10.0 kW | 34 — AUXA34GALH / ARXN34GATH |
| ON | OFF | OFF | ON | OFF | 11.2 kW | 36 |
| OFF | ON | OFF | ON | OFF | 12.5 kW | 45 |
| ON | ON | OFF | ON | OFF | 14.0 kW | 54 |
| OFF | OFF | ON | ON | OFF | 18.0 kW | 60 |
| ON | OFF | ON | ON | OFF | 22.4 kW | 72 |
| OFF | ON | ON | ON | OFF | 25.0 kW | 90 |
| ON | ON | ON | ON | OFF | 28.0 kW | 96 — ARXC96GATH / ARXH096GTAH (OAU) |
Standard Setting Range
The source includes a second factory reference table for SW1-1 to SW1-4 and SW2-1. In that table, the standard capacity combinations run from 2.2 kW through 25.0 kW. The combination SW1-1 ON / SW1-2 ON / SW1-3 ON / SW1-4 ON / SW2-1 OFF is identified as Setting forbidden.
Special factory settings shown in the source:
• 1.1 kW uses SW2-1 ON.
• 4.0 kW is marked for Chinese model only.
• 8.0 kW / model code 30 is marked “Only ASYA30GACH”.
• 10.0 kW / model code 34 is marked for AUXA34GALH / ARXN34GATH.
• 28.0 kW / model code 96 is marked for ARXC96GATH / ARXH096GTAH (OAU).
• 1.1 kW uses SW2-1 ON.
• 4.0 kW is marked for Chinese model only.
• 8.0 kW / model code 30 is marked “Only ASYA30GACH”.
• 10.0 kW / model code 34 is marked for AUXA34GALH / ARXN34GATH.
• 28.0 kW / model code 96 is marked for ARXC96GATH / ARXH096GTAH (OAU).
Technician Check
- Confirm the complete indoor-unit model number and rated capacity.
- Isolate power before inspecting the PCB or DIP switches.
- Record the existing SW1-1, SW1-2, SW1-3, SW1-4 and SW2-1 positions.
- Compare the existing factory setting with the applicable capacity row above.
- Do not change the capacity setting on site.
- Where the model is one of the special applications highlighted above, verify the model-specific note before drawing any conclusion from the switch pattern.
