General Assist Technical Reference
J Series Outdoor DIP Switch Settings
Outdoor unit PCB switch reference, test functions, capacity settings and external I/O
Use this reference when checking or configuring the outdoor unit DIP switches on applicable J Series VRF systems.
Important: Several DIP switches are marked Forbidden or Never change at the site. Do not alter these switches unless specifically instructed by approved technical documentation.

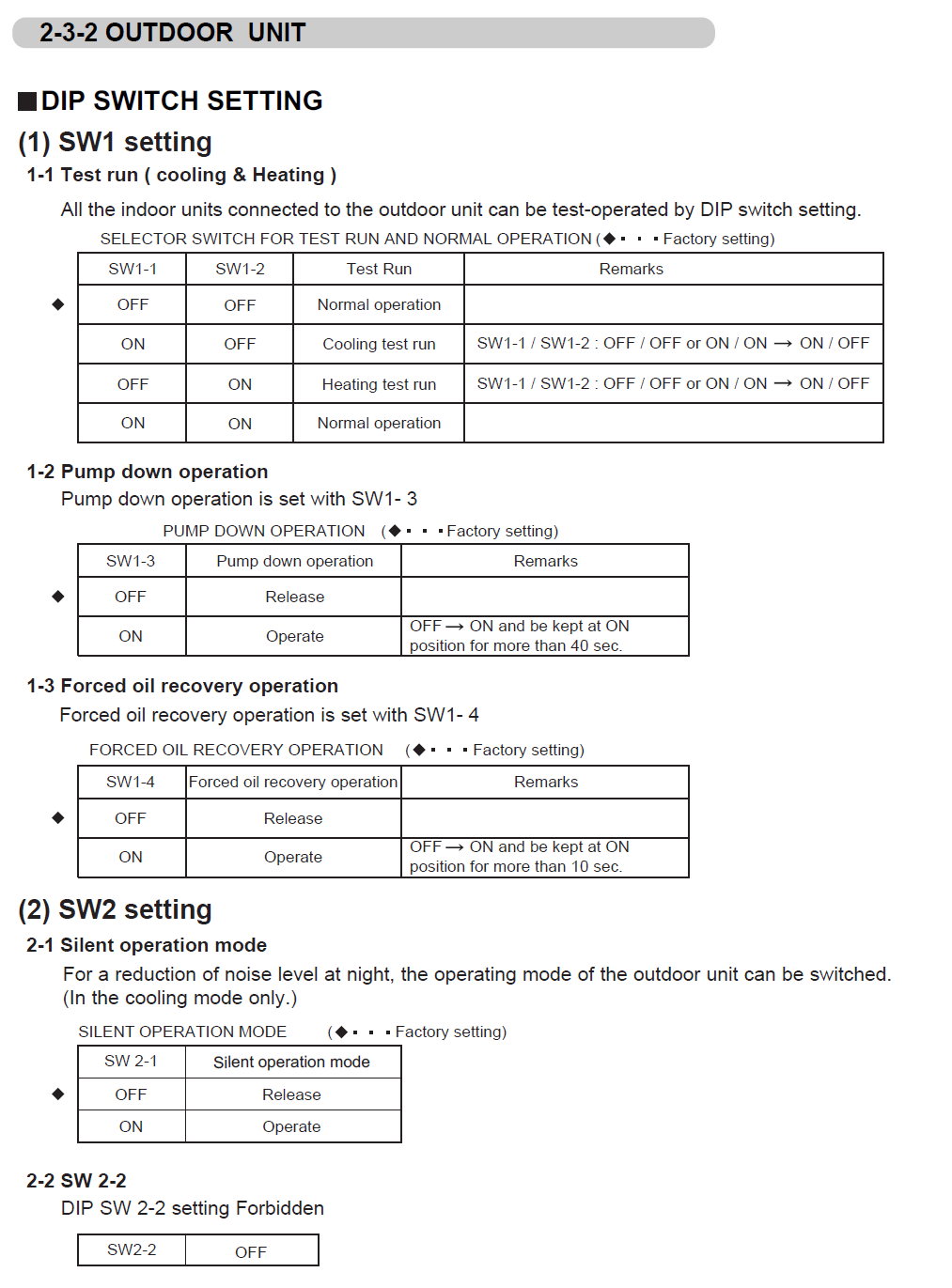

1. SW1 Setting
SW1-1 and SW1-2 – Test run
All indoor units connected to the outdoor unit can be test-operated using the DIP switch settings below.
| SW1-1 | SW1-2 | Operation | Remarks |
|---|---|---|---|
| OFF | OFF | Normal operation | Factory setting |
| ON | OFF | Cooling test run | SW1-1 / SW1-2: OFF / OFF or ON / ON → ON / OFF |
| OFF | ON | Heating test run | SW1-1 / SW1-2: OFF / OFF or ON / ON → ON / OFF |
| ON | ON | Normal operation |
SW1-3 – Pump down operation
| SW1-3 | Pump down operation | Remarks |
|---|---|---|
| OFF | Release | Factory setting |
| ON | Operate | Change OFF → ON and keep ON for more than 40 seconds. |
SW1-4 – Forced oil recovery operation
| SW1-4 | Forced oil recovery | Remarks |
|---|---|---|
| OFF | Release | Factory setting |
| ON | Operate | Change OFF → ON and keep ON for more than 10 seconds. |
2. SW2 Setting
SW2-1 – Silent operation mode
Reduces the outdoor unit noise level at night. This function applies in cooling mode only.
| SW2-1 | Silent operation |
|---|---|
| OFF | Release – factory setting |
| ON | Operate |
SW2-2: Setting forbidden. Keep OFF.

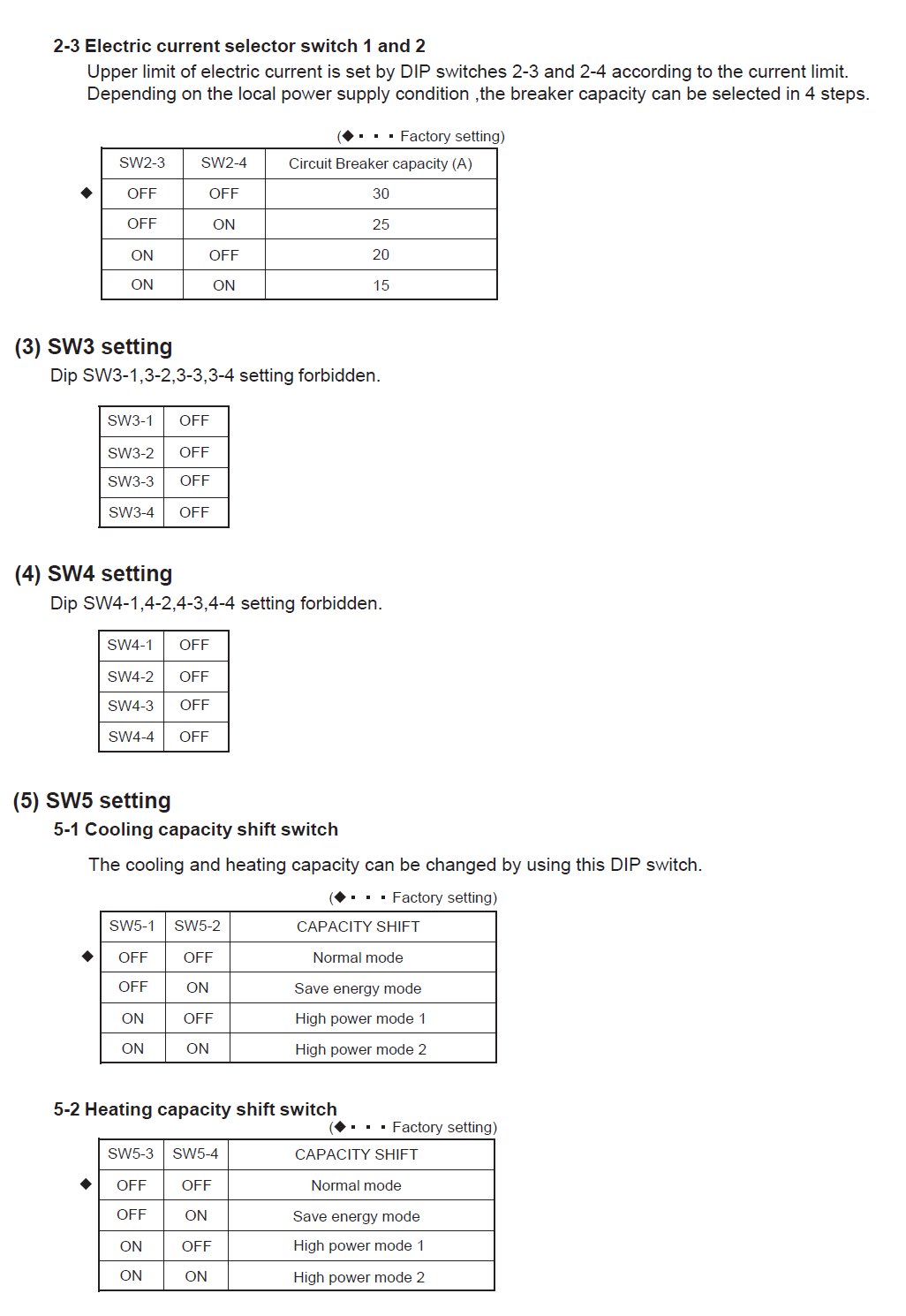

SW2-3 and SW2-4 – Electric current selector
The upper limit of electric current is selected in four steps according to the local power supply condition and circuit breaker capacity.
| SW2-3 | SW2-4 | Circuit breaker capacity |
|---|---|---|
| OFF | OFF | 30 A – factory setting |
| OFF | ON | 25 A |
| ON | OFF | 20 A |
| ON | ON | 15 A |
3. SW3 and SW4 Settings
Settings forbidden: SW3-1, SW3-2, SW3-3, SW3-4, SW4-1, SW4-2, SW4-3 and SW4-4 must all remain OFF.
4. SW5 Capacity Shift Settings
Cooling and heating capacity can be changed using SW5.
SW5-1 and SW5-2 – Cooling capacity shift
| SW5-1 | SW5-2 | Capacity shift |
|---|---|---|
| OFF | OFF | Normal mode – factory setting |
| OFF | ON | Save energy mode |
| ON | OFF | High power mode 1 |
| ON | ON | High power mode 2 |
SW5-3 and SW5-4 – Heating capacity shift
| SW5-3 | SW5-4 | Capacity shift |
|---|---|---|
| OFF | OFF | Normal mode – factory setting |
| OFF | ON | Save energy mode |
| ON | OFF | High power mode 1 |
| ON | ON | High power mode 2 |

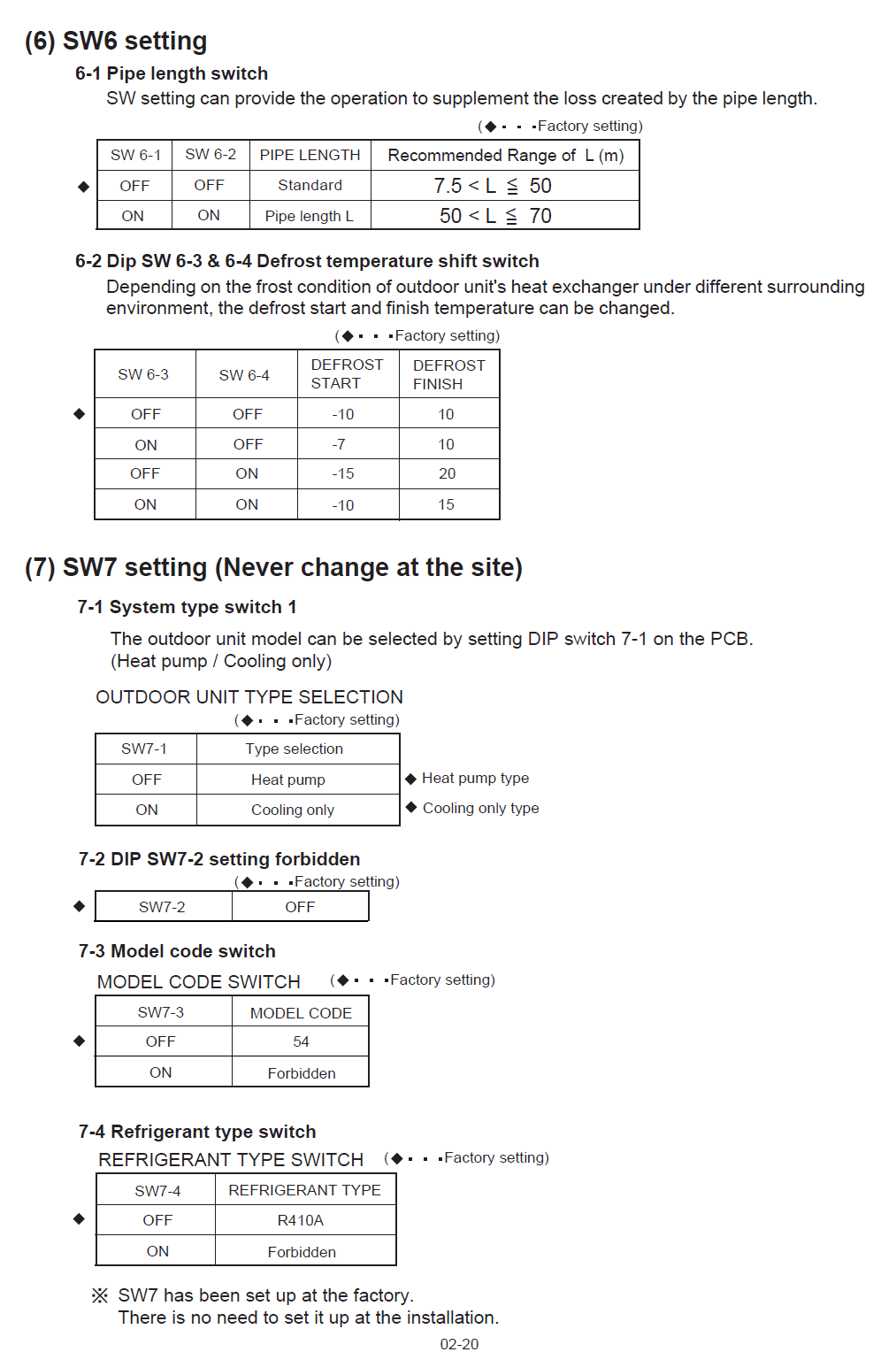

5. SW6 Setting
SW6-1 and SW6-2 – Pipe length switch
This setting supplements losses created by longer refrigerant pipe lengths.
| SW6-1 | SW6-2 | Pipe length | Recommended range L |
|---|---|---|---|
| OFF | OFF | Standard | 7.5 < L ≤ 50 m |
| ON | ON | Pipe length L | 50 < L ≤ 70 m |
SW6-3 and SW6-4 – Defrost temperature shift
The defrost start and finish temperatures can be changed to suit frost conditions around the outdoor heat exchanger.
| SW6-3 | SW6-4 | Defrost start | Defrost finish |
|---|---|---|---|
| OFF | OFF | -10°C | 10°C |
| ON | OFF | -7°C | 10°C |
| OFF | ON | -15°C | 20°C |
| ON | ON | -10°C | 15°C |
6. SW7 Setting – Never Change at the Site
SW7 has been set at the factory. There is no need to set it during installation.
| Switch | OFF | ON |
|---|---|---|
| SW7-1 – System type | Heat pump – factory setting | Cooling only |
| SW7-2 | OFF – factory setting | Forbidden |
| SW7-3 – Model code | Model code 54 – factory setting | Forbidden |
| SW7-4 – Refrigerant type | R410A – factory setting | Forbidden |

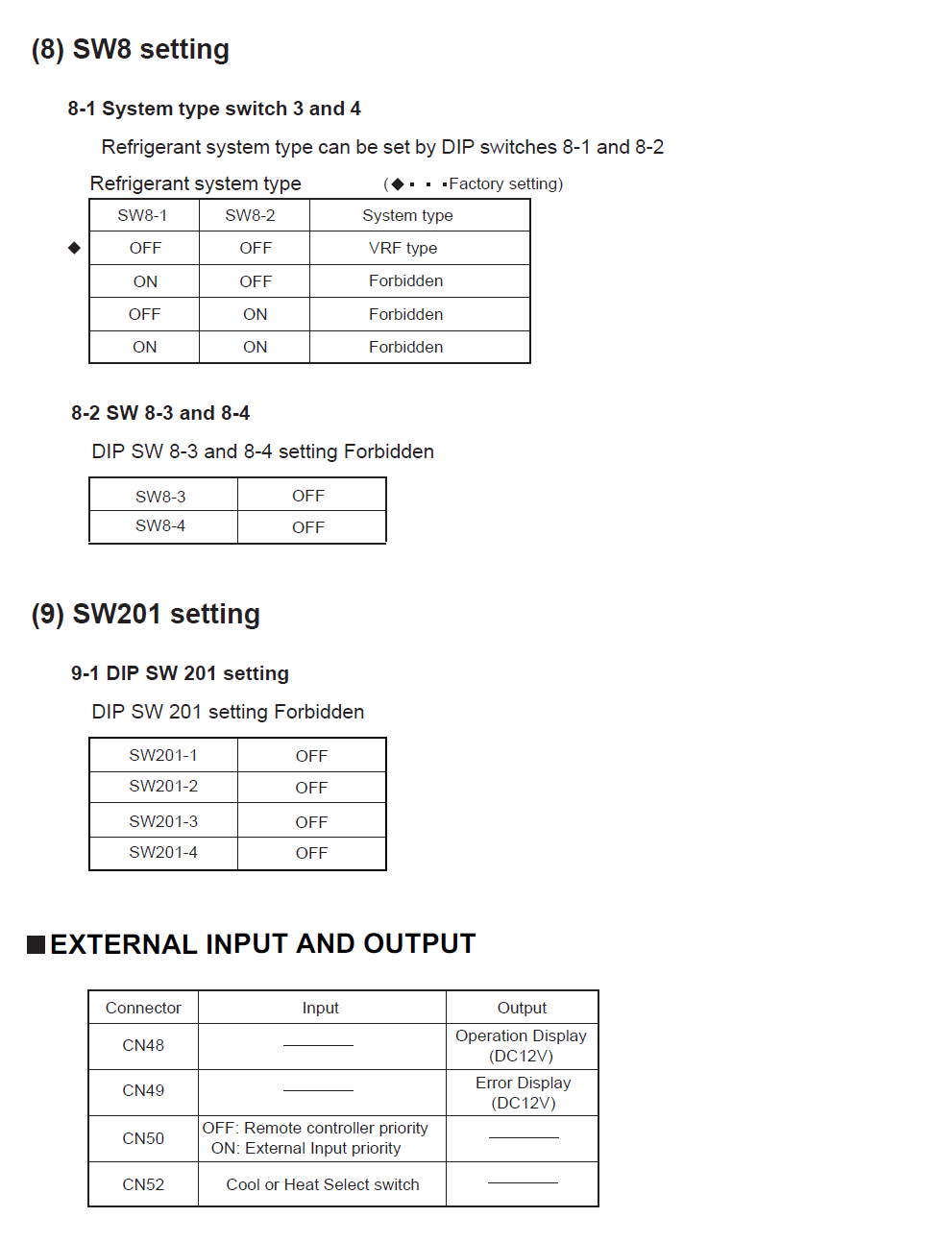

7. SW8 and SW201 Settings
SW8-1 and SW8-2 – Refrigerant system type
| SW8-1 | SW8-2 | System type |
|---|---|---|
| OFF | OFF | VRF type – factory setting |
| ON | OFF | Forbidden |
| OFF | ON | Forbidden |
| ON | ON | Forbidden |
SW8-3 and SW8-4: Setting forbidden. Keep both OFF.
SW201-1 to SW201-4: Setting forbidden. Keep all OFF.
SW201-1 to SW201-4: Setting forbidden. Keep all OFF.
8. External Input and Output
| Connector | Input | Output |
|---|---|---|
| CN48 | — | Operation display (DC 12 V) |
| CN49 | — | Error display (DC 12 V) |
| CN50 | OFF: Remote controller priority ON: External input priority | — |
| CN52 | Cool or Heat select switch | — |
Technical reference compiled from the supplied J Series outdoor unit DIP switch documentation. Always confirm the exact applicable service or installation manual for the model being worked on before changing PCB settings.
