AIRSTAGE Technical Reference
Group Remote Controller DIP Switch Settings
DIP switch functions and factory default settings
Reference information for Group Remote Controllers used to control multiple indoor units within a single system.
The Group Remote Controller includes a two-position DIP switch bank. DIP SW 1 is used for the memory backup setting, while DIP SW 2 is reserved and must remain in the factory position.
Important: Do not change DIP SW 2. This switch is marked as Forbidden and should remain OFF unless specifically instructed by approved service documentation.
1. DIP Switch Functions
| DIP SW | Function | Factory Setting |
|---|---|---|
| 1 | Memory backup setting | OFF |
| 2 | Forbidden | OFF |
Factory default: Both DIP switches are set to OFF.
2. Switch Position Reference
- The DIP switch bank is located on the rear side of the front case.
- Use a small screwdriver when changing a switch position.
Service tip: Record the original switch positions before making any adjustment. After completing service work, confirm the switches are returned to the required setting before reassembling the controller.

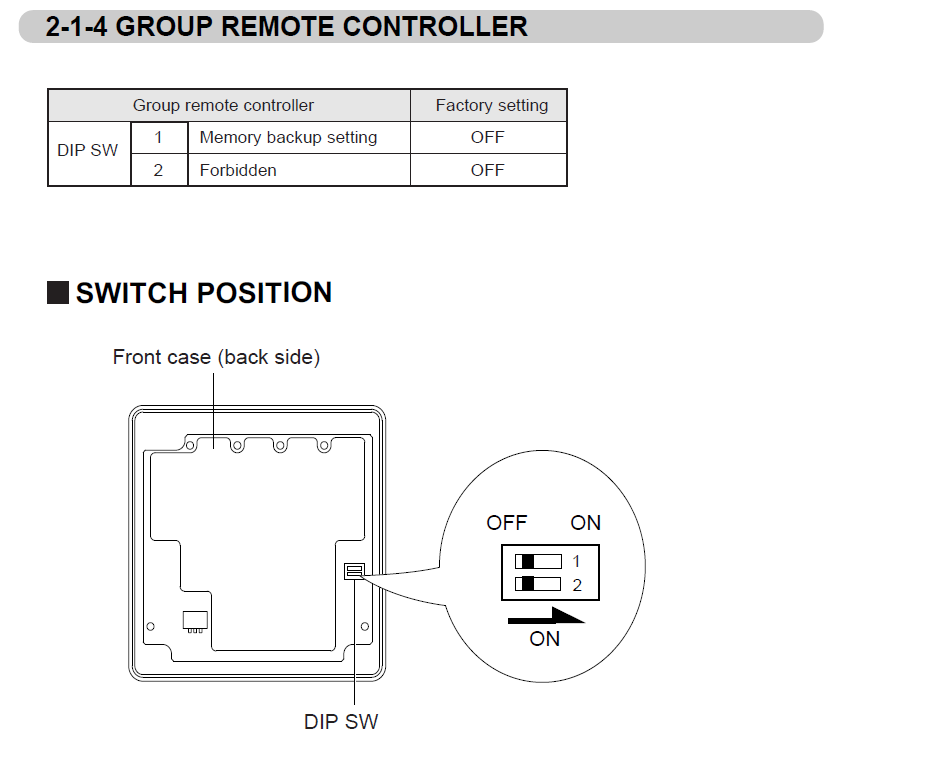

3. Reference Image
DIP switch functions and factory settings are based on the supplied service information. Confirm controller applicability before changing any setting.
