VRF J-Series – Electronic Expansion Valve (EEV) Diagnostic Guide
UTR-EV2A and UTR-EV3 option kits used with Fujitsu VRF J-Series systems.
Isolate power before disconnecting CN14 or carrying out resistance checks. Reapply power only where required for live voltage or operational testing, using appropriate electrical safety procedures.
1. Check Circuit Connection
Confirm the EEV wiring is correctly connected to CN14 on the control PCB.
Verify that each wire is fitted to the correct pin position. The CN14 wiring includes:
2. Check Solenoid Coil Resistance
With power isolated, disconnect CN14 and measure resistance between the specified wire pairs.
| Wire Pair | Expected Resistance |
|---|---|
| Red – Orange | 140 Ω |
| Red – White | 140 Ω |
| Orange – White | 300 Ω |
| Brown – Blue | 140 Ω |
| Blue – Yellow | 300 Ω |
If any resistance value is outside the expected range, follow the service procedure and replace the Control PCB where specified.
3. Initialize EEV Positioning
- Power off the outdoor unit/control PCB.
- Restore power to the unit.
- Repeat the power cycle as required to confirm the EEV performs its initialization sequence.
4. Check Control PCB Voltage
With CN14 disconnected, confirm the control PCB provides approximately DC +12 V at the EEV output.
If 0 V is measured where 12 V DC is expected, the source procedure identifies the main/control PCB as the likely replacement item.
5. Check EEV Operation Sound
When power is applied, listen for the magnetized clicking sound from the EEV motor during initialization.
If no operating sound is heard, the control PCB may not be driving the valve correctly.
6. Verify Valve Open / Close Operation
Confirm valve operation by comparing refrigerant pipe temperatures at the inlet and outlet.
| Valve Condition | Expected Temperature Condition |
|---|---|
| Closed | High temperature at the inlet; normal temperature at the outlet. |
| Open | High temperature at both the inlet and outlet. |
7. Check the Strainer for Blockage
Compare temperatures across the strainer terminals.
- A large temperature difference may indicate a restriction or blockage.
- Change the system operating mode between Heating and Cooling to confirm refrigerant movement and compare the response.
8. Diagnostic Summary
| Check Point | Focus | Normal Condition |
|---|---|---|
| CN14 wiring | Electrical connection | All wires secure and correctly positioned |
| Solenoid resistance | Coil integrity | 140 Ω / 300 Ω as specified |
| PCB voltage | Power output | Approximately 12 V DC |
| EEV initialization | Valve repositioning | Audible operating/clicking sound |
| Thermal test | Valve response | Temperature response changes with valve position |

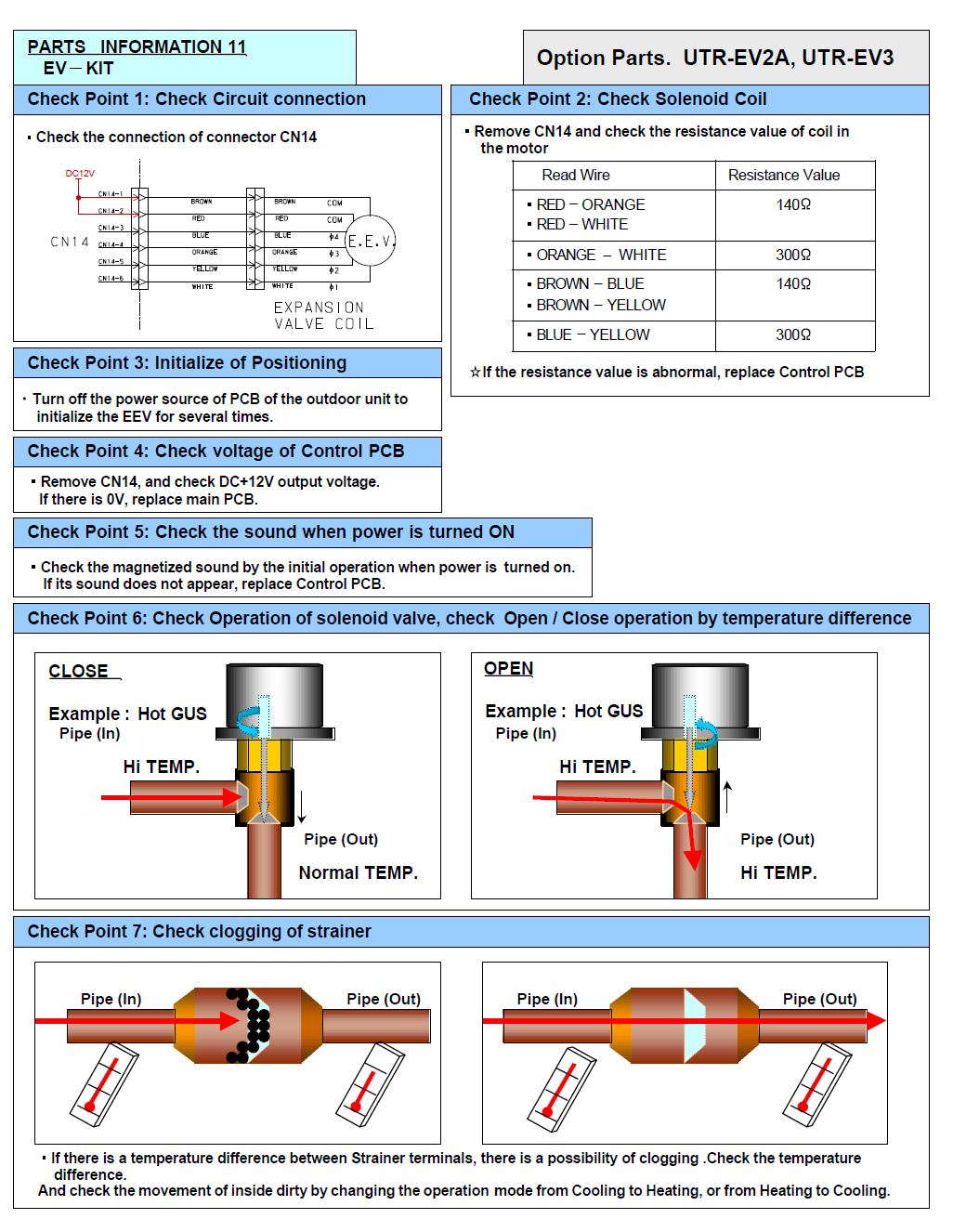

9. Reference Image
The original Freshdesk-hosted diagnostic reference is retained below.
