Wall Mounted Models - Intake Grille Gear Cracking

This article summarises Service Bulletin RAC-0077, issued on 31 August 2017, covering cracking of the intake grille gear on certain wall-mounted indoor units.

ReferenceRAC-0077
Issued31 August 2017
ProductRAC
Model typeWall mounted model
SubjectGear crack of the intake grille
Key finding: Cracking of the intake grille gear was caused by insufficient gear strength. The likelihood of occurrence was considered higher on units that had been in service for a long period.

Issue Summary

Gear cracking was identified on the intake grille of some wall-mounted indoor units, particularly in North American and European markets. Because the same models were also sold in other regions, the service bulletin was issued for all areas.

Cause

  • The original intake grille gear had insufficient strength.
  • The bulletin states that the chance of cracking may increase with extended service life / prolonged use.

Countermeasure

The intake grille gear design was revised to improve strength.

VersionPart NumberDetails
Before countermeasure9319292007Original intake grille gear
After countermeasure9319292014Revised gear with increased strength
Production change: Countermeasure production was introduced from 20 July 2017.
Service manual update: Revised service information from 1 September 2017.

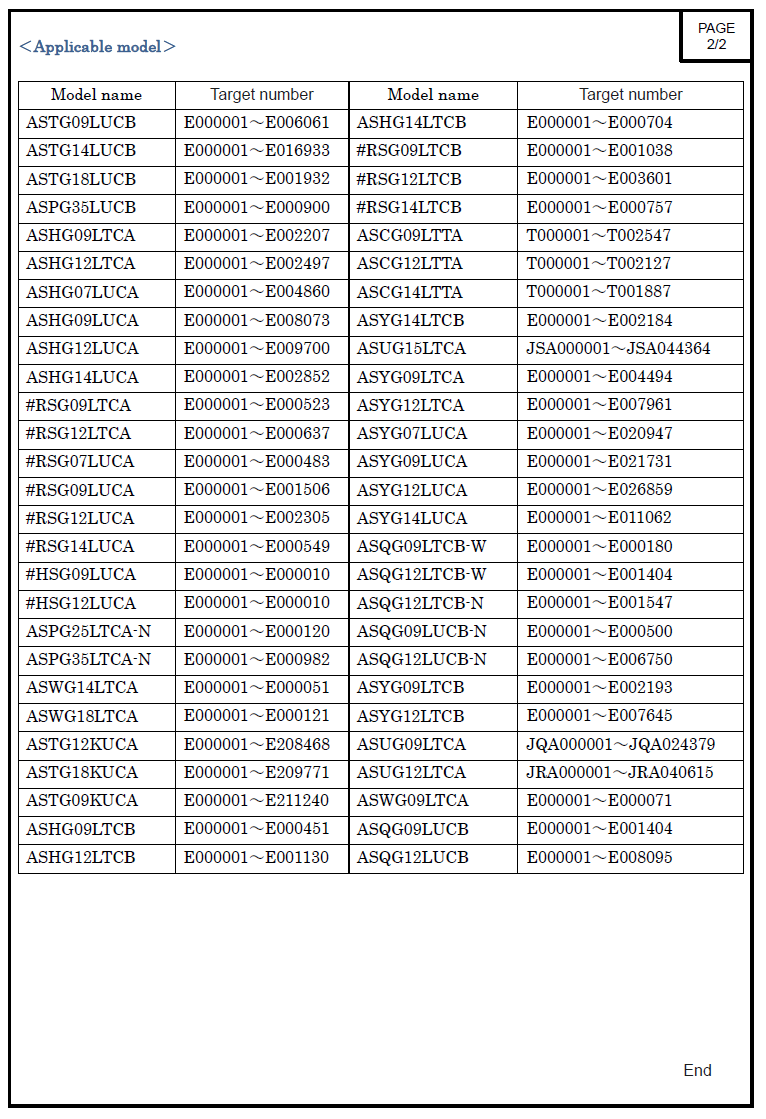

Applicable Models and Serial Ranges

ModelTarget Serial Range
ASTG09LUCBE000001 to E006061
ASTG14LUCBE000001 to E016933
ASTG18LUCBE000001 to E001932
ASPG35LUCBE000001 to E000900
ASHG09LTCAE000001 to E002207
ASHG12LTCAE000001 to E002497
ASHG07LUCAE000001 to E004860
ASHG09LUCAE000001 to E008073
ASHG12LUCAE000001 to E009700
ASHG14LUCAE000001 to E002852
#RSG09LTCAE000001 to E000528
#RSG12LTCAE000001 to E000637
#RSG07LUCAE000001 to E000483
#RSG09LUCAE000001 to E001506
#RSG12LUCAE000001 to E002305
#RSG14LUCAE000001 to E000549
#HSG09LUCAE000001 to E000010
#HSG12LUCAE000001 to E000010
ASPG25LTCA-NE000001 to E000120
ASPG35LTCA-NE000001 to E000982
ASWG14LTCAE000001 to E000051
ASWG18LTCAE000001 to E000121
ASTG12KUCAE000001 to E208468
ASTG18KUCAE000001 to E209771
ASTG09KUCAE000001 to E211240
ASHG09LTCBE000001 to E000451
ASHG12LTCBE000001 to E001130
ASHG14LTCBE000001 to E000704
#RSG09LTCBE000001 to E001038
#RSG12LTCBE000001 to E003601
#RSG14LTCBE000001 to E000757
ASCG09LTTAT000001 to T002547
ASCG12LTTAT000001 to T002127
ASCG14LTTAT000001 to T001887
ASYG14LTCBE000001 to E002184
ASUG15LTCAJSA000001 to JSA044364
ASYG09LTCAE000001 to E004494
ASYG12LTCAE000001 to E007961
ASYG07LUCAE000001 to E020947
ASYG09LUCAE000001 to E021731
ASYG12LUCAE000001 to E026859
ASYG14LUCAE000001 to E011062
ASQG09LTCB-WE000001 to E000180
ASQG12LTCB-WE000001 to E001404
ASQG12LTCB-NE000001 to E001547
ASQG09LUCB-NE000001 to E000500
ASQG12LUCB-NE000001 to E006750
ASYG09LTCBE000001 to E002193
ASYG12LTCBE000001 to E007645
ASUG09LTCAJQA000001 to JQA024379
ASUG12LTCAJRA000001 to JRA040615
ASWG09LTCAE000001 to E000071
ASQG09LUCBE000001 to E001404
ASQG12LUCBE000001 to E008095

Service Guidance

  • If the intake grille does not open or close correctly, inspect the drive gear for cracking.
  • Confirm the indoor unit model and serial number are within the applicable range above.
  • If the original gear is cracked or damaged, replace it with the strengthened part 9319292014.
  • Where possible, inspect the mating mechanism for any additional damage or binding before fitting the replacement gear.

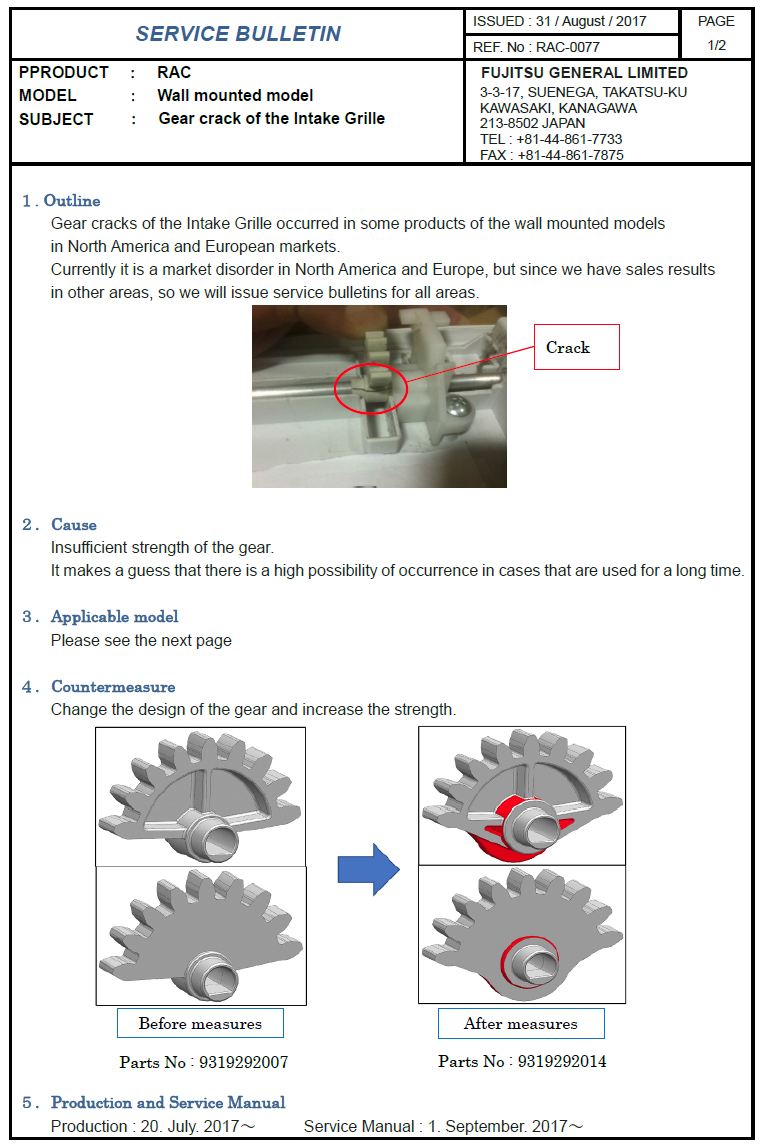

Service Bulletin Images

The original Freshdesk-hosted bulletin images are retained below for reference.
