UTY-PTGXA ECA Tool for TPC - Night / Weekend Setting Not Applied
This article summarises Service Bulletin VRF-0155, issued 8 February 2018, covering an issue where night and weekend contract settings may not be applied correctly by the ECA Tool for TPC.
Quick Answer
- Model: UTY-PTGXA
- Application: ECA Tool for TPC
- Affected versions: 0.1.0.0 to 0.1.0.1

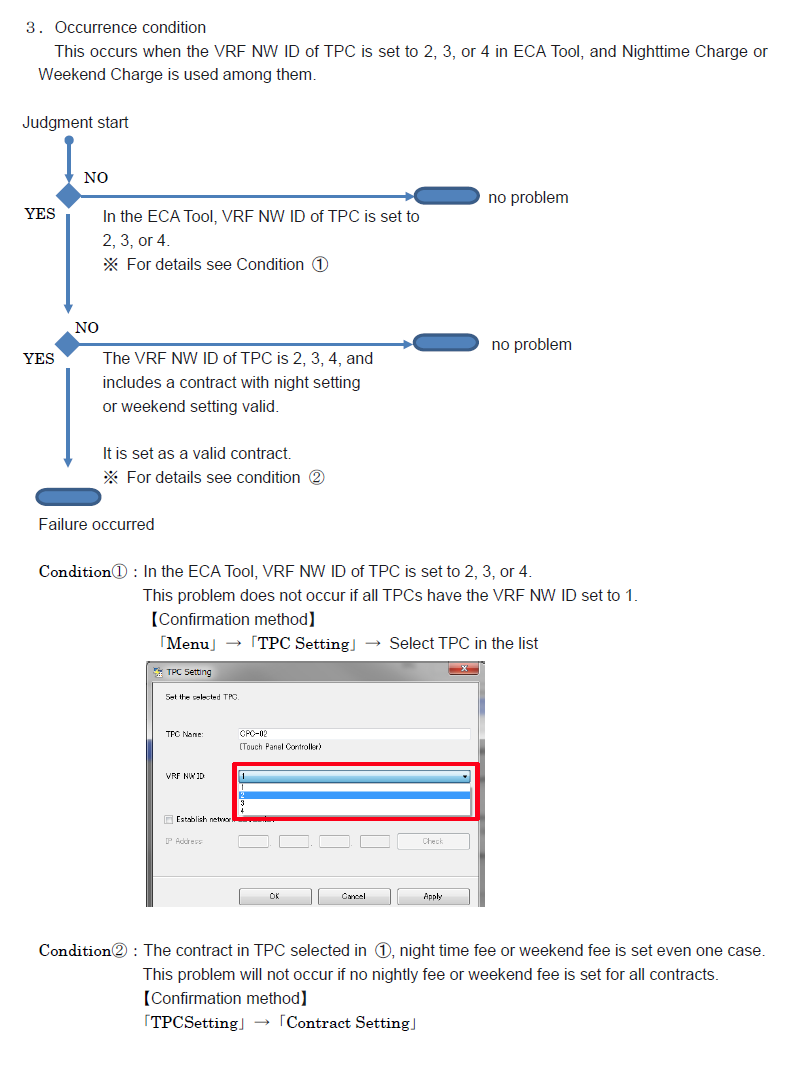

- Occurrence condition: VRF Network ID set to 2, 3 or 4
- Symptom: Night / weekend settings may not be applied to TPC.
- Impact: Power consumption may be treated entirely as Daytime Charge.
- Resolution: Update the application to the latest version.
Affected Application
| Model | Name | Affected Version |
|---|---|---|
| UTY-PTGXA | ECA Tool for TPC | 0.1.0.0 to 0.1.0.1 |

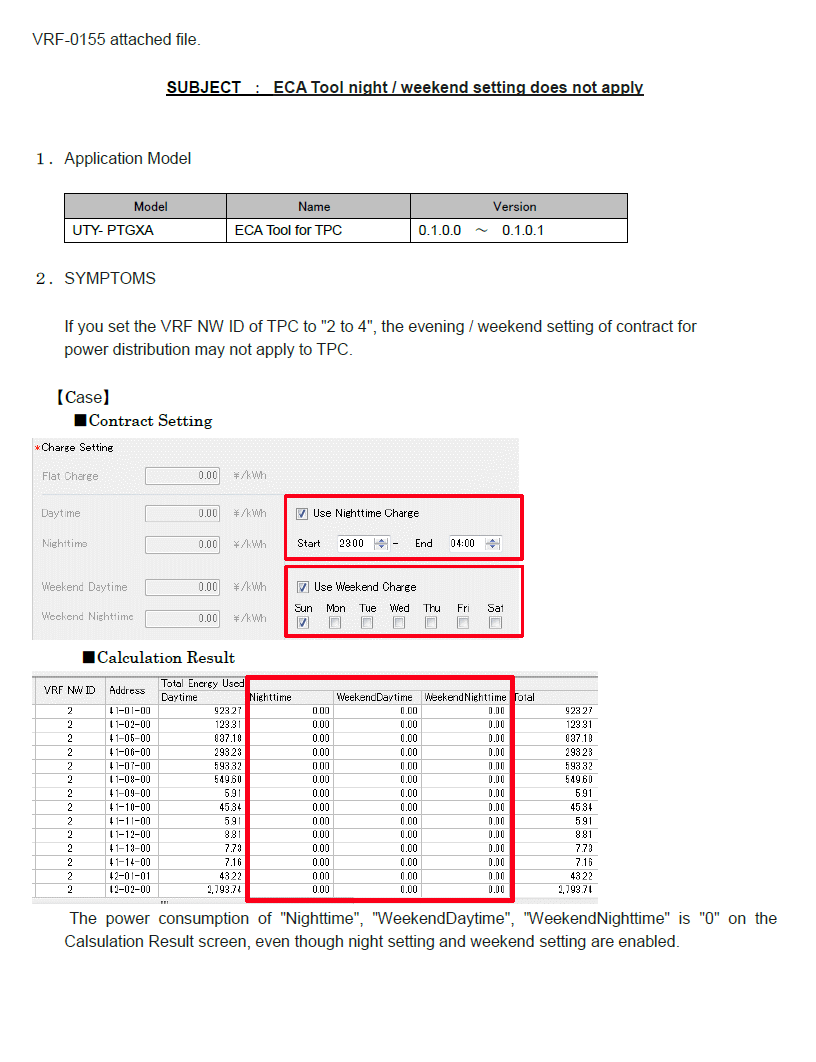

Symptom
If the VRF Network ID of the TPC is set to 2, 3 or 4, the night / weekend setting associated with the power-distribution contract may not be applied correctly to the TPC.
Customer impact: If the night / weekend setting is not reflected correctly, all power consumption may be handled as Daytime Charge.
Cause
The bulletin identifies an error in the ECA setting data when the VRF Network ID is configured as 2 to 4.
- The night / weekend tariff setting is not transferred or reflected correctly on the TPC.
- As a result, the TPC may calculate all consumption using the daytime tariff.
Resolution
Where the TPC uses a contract with valid night and weekend settings and the VRF Network ID is set to 2, 3 or 4, update the UTY-PTGXA ECA Tool for TPC to the latest available version.
Recommended action: Confirm the installed ECA Tool version before investigating tariff-calculation discrepancies on a TPC configured with VRF Network ID 2-4.
Service Check
- Confirm the application model is UTY-PTGXA.
- Check the installed ECA Tool version.
- Confirm the VRF Network ID configured for the TPC.
- If the Network ID is 2, 3 or 4 and the application is version 0.1.0.0 or 0.1.0.1, update to the latest version.
- After updating, confirm the night / weekend contract settings are correctly reflected in the TPC.
- Verify that power consumption is being allocated to the correct daytime and night/weekend tariff periods.

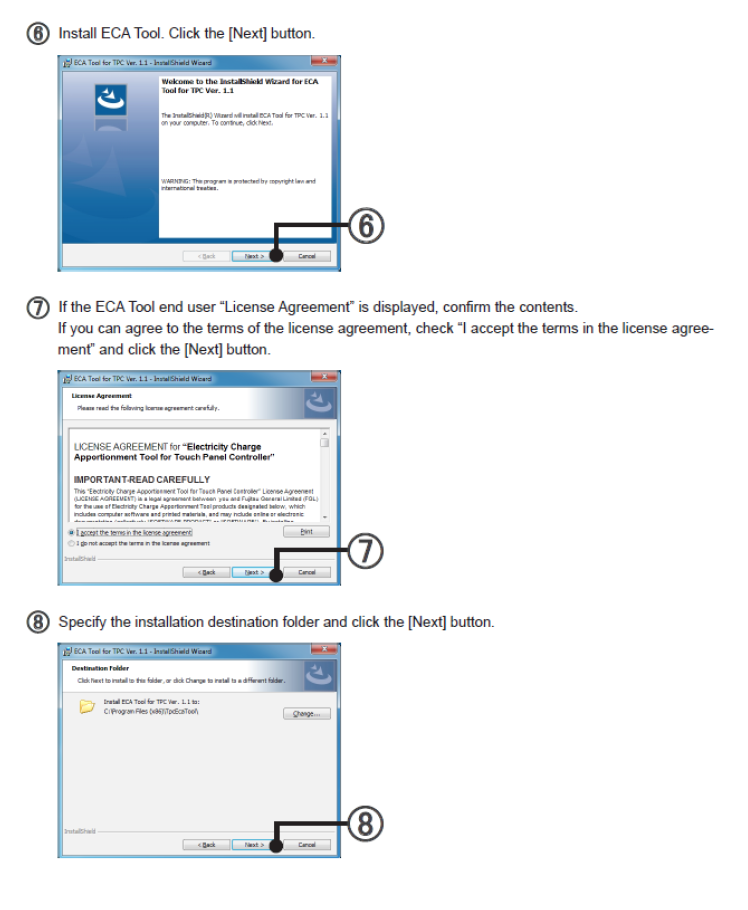

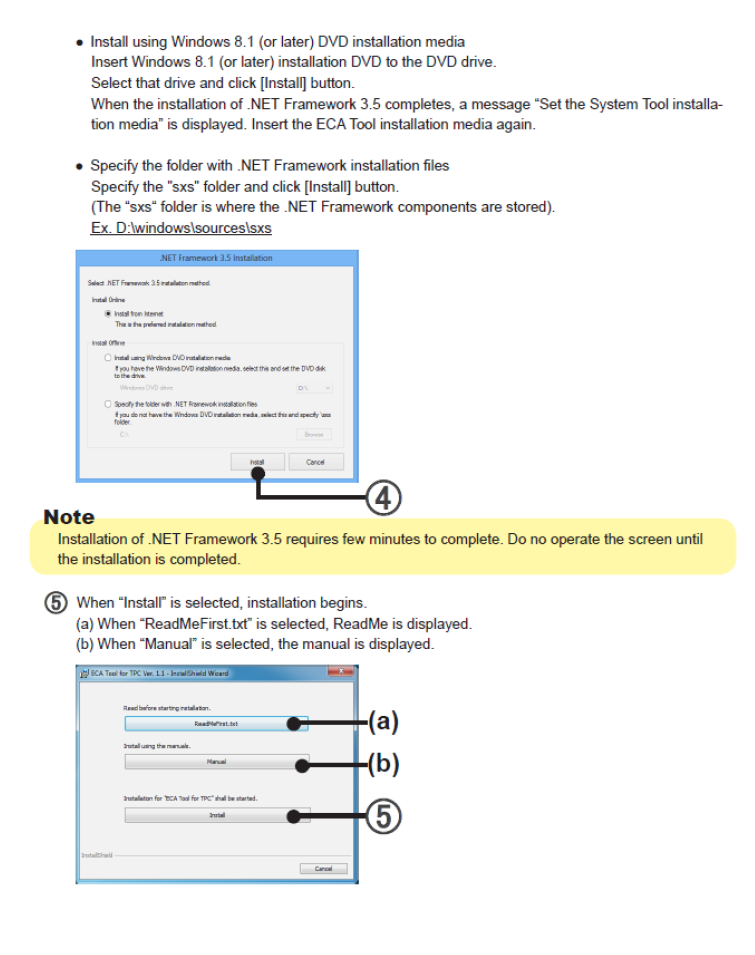

Original Bulletin Reference Images
Source: Fujitsu General Service Bulletin VRF-0155, issued 8 February 2018.
