VRF Wall Mounted Units - Filter Guide & Pipe Cover Part Number Change
Service Bulletin VRF-0156 - issued 28 February 2018
The material used for the FILTER GUIDE and PIPE COVER was changed. As a result, the corresponding service part numbers also changed.
Quick Answer
| Part | Old Part Number | New Part Number | Change |
|---|---|---|---|
| Filter Guide | 9315013019 | 9315013040 | Material changed to ABS; colour changed from black to white |
| Pipe Cover | 9379840002 | 9379840019 | Material changed from ABS to HIPS; white finish changed from glossy to non-glossy |
Compatibility: The bulletin states that the current and new parts are compatible. Both versions may therefore be encountered in service.
Filter Guide Change
| Specification | Current | New |
|---|---|---|
| Part number | 9315013019 | 9315013040 |
| Material | ABS or HIPS* | ABS |
| Colour | Black | White |
* The original bulletin notes that the existing material depended on the production plant.
Pipe Cover Change
| Specification | Current | New |
|---|---|---|
| Part number | 9379840002 | 9379840019 |
| Material | ABS | HIPS |
| Colour / finish | White - glossy | White - non-glossy |
Affected Models
The bulletin applies to VRF wall-mounted indoor units.
| Destination | Applicable Models |
|---|---|
| Europe / Asia / Oceania / Middle East | ASYA18GACH / ASHA18GACH ASYA24GACH / ASHA24GACH ASYA30GACH / ASHA30GACH ASYA18GBCH / ASHA18GBCH ASYA24GBCH / ASHA24GBCH ASYA30GBCH / ASHA30GBCH |
| Vietnam / Middle East | ASYA18GATH / ASHA18GATH ASYA24GATH / ASHA24GATH ASYA30GATH / ASHA30GATH |
| China | ASQA056GLAH / ASQA056GLBH ASQA071GLAH / ASQA071GLBH ASQA080GLAH / ASQA080GLBH ASQA056GCAH ASQA071GCAH ASQA080GCAH |
| U.S.A. | ASUB18TLAV / ASUB18TLAV1 (ASUA018GCAH) / (ASUA018GCBH) ASUB24TLAV / ASUB24TLAV1 (ASUA024GCAH) / (ASUA024GCBH) |
| U.A.E. | ASGA18GATH / ASGA18GACH ASGA24GATH / ASGA24GACH ASGA30GATH / ASGA30GACH |
Models shown in brackets in the original bulletin are in-house management model names.
Changeover Timing
- The material change was planned as a running production change around June 2018.
- For service parts, the material change was planned from orders received for June 2018.
- The bulletin states that both the old and new versions are compatible.
Parts Ordering Guidance
Pipe Cover: The bulletin states that the pipe cover is a VRF-specific component and that old part number 9379840002 would be discontinued after existing material was consumed. Use 9379840019 as the later service part.
For the filter guide, the later part number is 9315013040. The physical appearance may differ because the later filter guide is white rather than black.

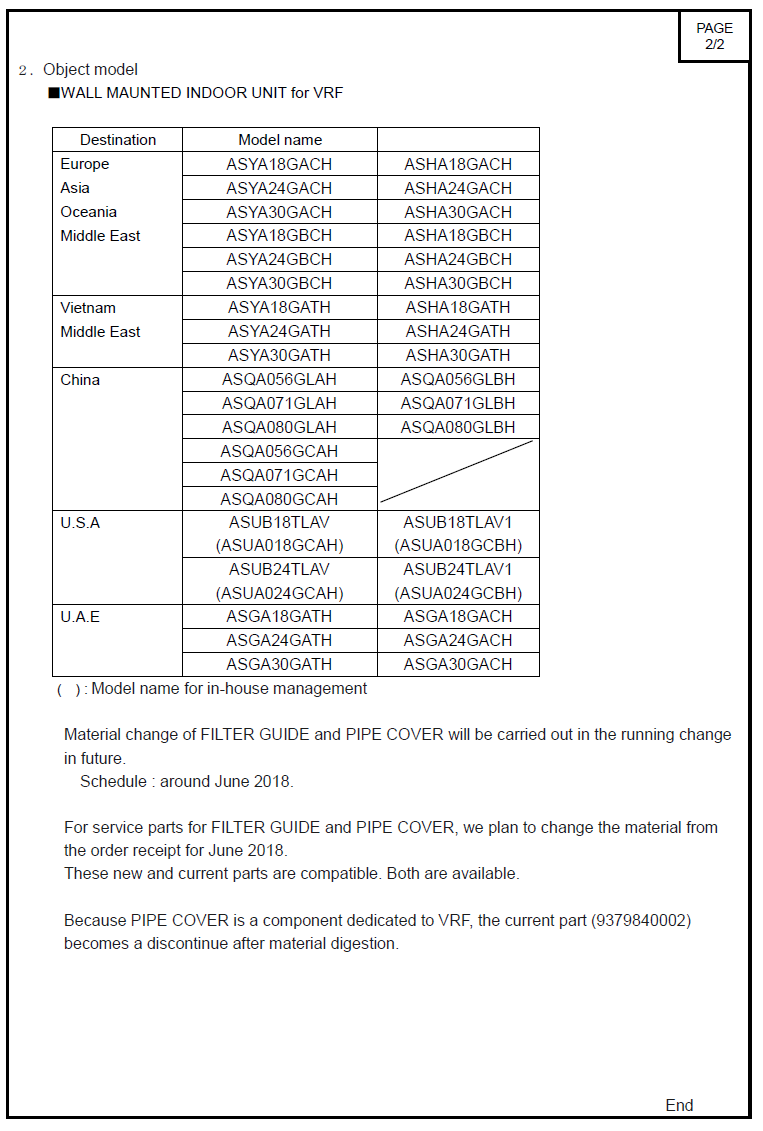

Original Bulletin Images
Important: When ordering replacement parts, confirm the indoor unit model and required component. Old and new versions are compatible, but their material, colour or surface finish may differ.
