Control Box Cover Service Part Change - AR60 Ducted Models
This article summarises Service Hint SEH-0044, issued on 15 May 2017, covering a change to the service part for the CONTROL BOX COVER SUB ASSY used on applicable AR60-type ducted indoor units.
| Reference | SEH-0044 |
| Issued | 15 May 2017 |
| Product | Duct model for PAC |
| Model group | Duct model for AR60 type |
| Subject | Change of service parts - Control Box Cover Sub Assy |
Important: The new service cover has a different hole position and cannot be screwed to the current / older control box in the original position. The service hint states that the air conditioner can be used without these screws.
Reason for the Change
The service part number was changed because the shape of the control box cover was revised.
- The new control box cover uses a different mounting-hole position.
- When the new cover is fitted to the current / older control box, the existing pilot hole may no longer align.
- The new control box design includes changes around the terminal area, including an added terminal and an expanded deep-drawing section.
Service implication: If the new replacement cover does not align with the existing screw hole on an older control box, the bulletin advises that the unit may be used with the cover fitted without the affected screw(s).

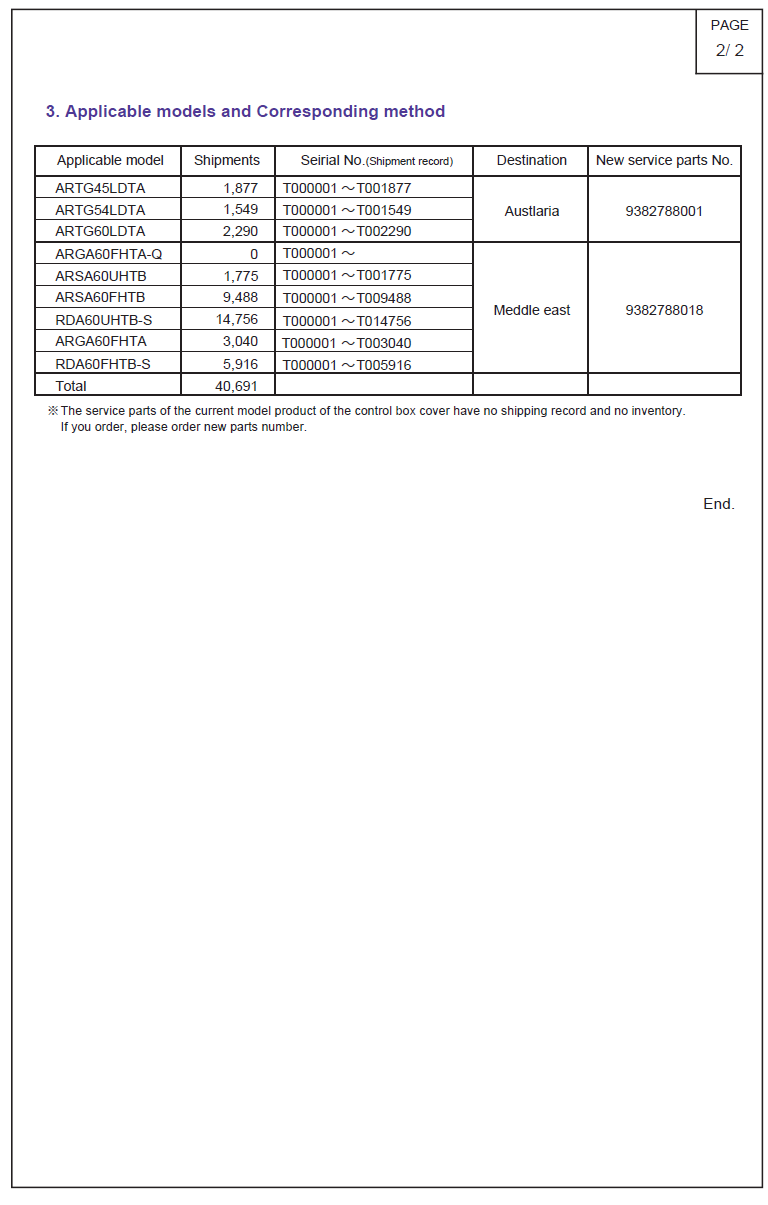

Applicable Australian Models
| Model | Shipments | Serial Range | New Service Part No. |
|---|---|---|---|
| ARTG45LDTA | 1,877 | T000001 to T001877 | 9382788001 |
| ARTG54LDTA | 1,549 | T000001 to T001549 | 9382788001 |
| ARTG60LDTA | 2,290 | T000001 to T002290 | 9382788001 |
Other Applicable Models
| Model | Shipments | Serial Range | Destination | New Service Part No. |
|---|---|---|---|---|
| ARGA60FHTA-Q | 0 | T000001 onward | Middle East | 9382788018 |
| ARSA60UHTB | 1,775 | T000001 to T001775 | Middle East | 9382788018 |
| ARSA60FHTB | 9,488 | T000001 to T009488 | Middle East | 9382788018 |
| RDA60UHTB-S | 14,756 | T000001 to T014756 | Middle East | 9382788018 |
| ARGA60FHTA | 3,040 | T000001 to T003040 | Middle East | 9382788018 |
| RDA60FHTB-S | 5,916 | T000001 to T005916 | Middle East | 9382788018 |
| Total | 40,691 | |||
Parts note: The service hint states that service stock of the current / older control box cover had no shipping record and no inventory. If ordering a replacement, use the applicable new service part number.
Service Guidance
- Confirm the indoor unit model and serial number.
- Order the applicable new control box cover service part.
- When fitting the new cover to an older control box, expect the revised hole position to differ from the original pilot hole.
- Do not modify the control box solely to recreate the original screw position unless another approved instruction specifically requires it.
- Where the revised cover cannot be secured at the original hole, follow the service hint and use the cover without the affected screw(s).
