V-III VRF - UTY-SPWX Pressure Sensor Kit Compatibility

This article summarises Service Bulletin VRF-0159 regarding use of the UTY-SPWX Pressure Sensor Kit with V-III VRF outdoor units.

Quick Answer
  • Pressure Sensor Kit: UTY-SPWX
  • Applicable product: V-III VRF outdoor units
  • Standard maximum elevation difference: 50 m
  • Maximum elevation difference with UTY-SPWX: 110 m
  • Outdoor unit must have Pressure Sensor Kit-compatible software.
  • When replacing the Main PCB on a system using the kit, use software Version 10 or later.

What the Pressure Sensor Kit Does

Installing the UTY-SPWX Pressure Sensor Kit increases the allowable height difference between the outdoor unit and indoor units from 50 m to 110 m.

Compatibility requirement: Only V-III outdoor units fitted with the applicable later software are compatible with the Pressure Sensor Kit.

Main PCB Replacement on Systems Using UTY-SPWX

Where the system is using the Pressure Sensor Kit and DIP SW 102-4 is ON:

  • Use a Main PCB with software Version 10 or later.
  • If the outdoor system is a multiple-unit combination, ensure the software version of all outdoor units is matched to Version 10 or later.
  • The service bulletin states that Main PCBs were changed to Pressure Sensor Kit-compatible software from orders placed from 29 January 2018.

Europe / Oceania / Asia - Corresponding Outdoor Units

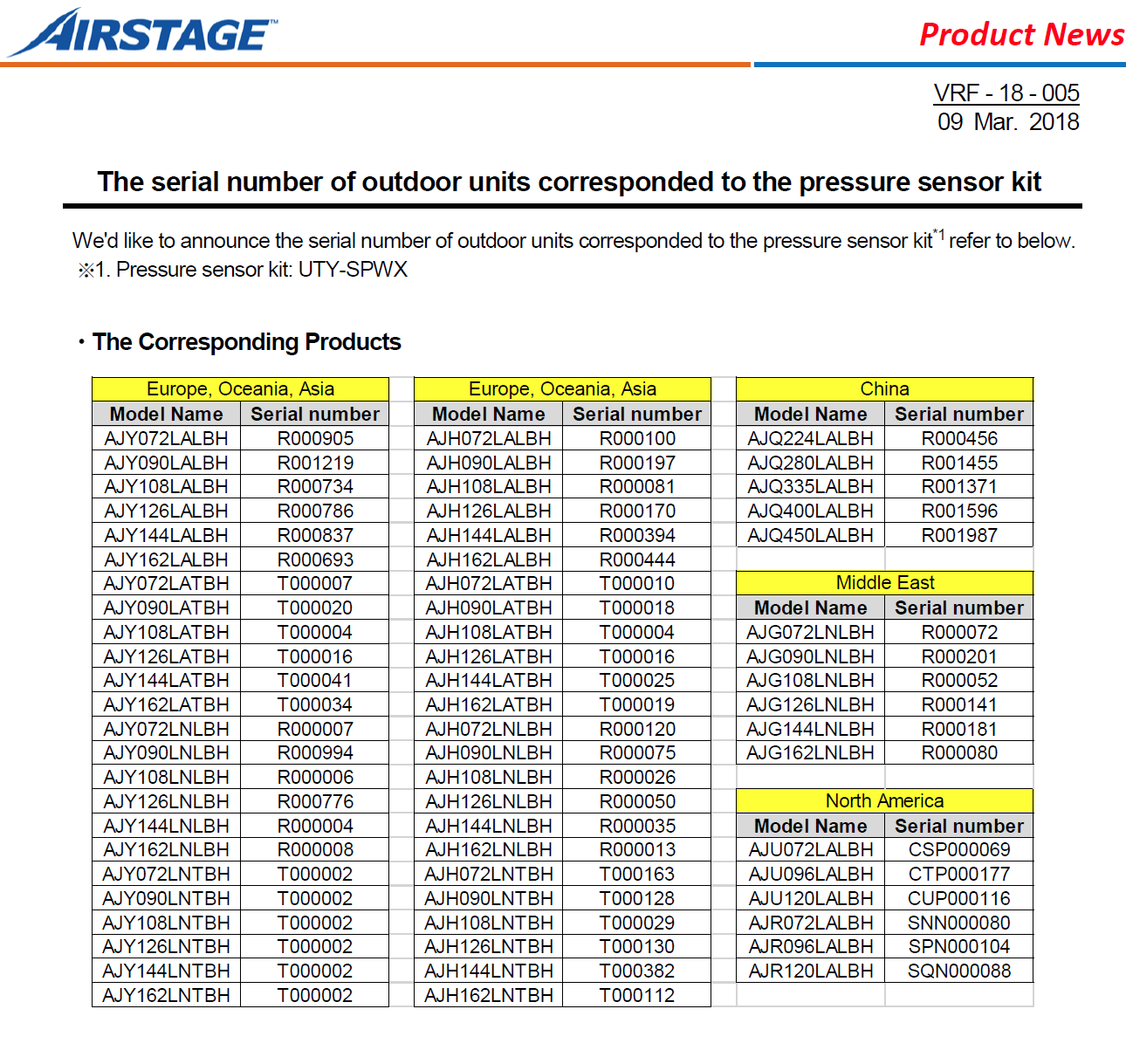

The bulletin identifies the following outdoor unit model and serial-number combinations as corresponding to the Pressure Sensor Kit.

ModelSerial NumberModelSerial Number
AJY072LALBHR000905AJH072LALBHR000100
AJY090LALBHR001219AJH090LALBHR000197
AJY108LALBHR000734AJH108LALBHR000081
AJY126LALBHR000786AJH126LALBHR000170
AJY144LALBHR000837AJH144LALBHR000394
AJY162LALBHR000693AJH162LALBHR000444
AJY072LATBHT000007AJH072LATBHT000010
AJY090LATBHT000020AJH090LATBHT000018
AJY108LATBHT000004AJH108LATBHT000004
AJY126LATBHT000016AJH126LATBHT000016
AJY144LATBHT000041AJH144LATBHT000025
AJY162LATBHT000034AJH162LATBHT000019
AJY072LNLBHR000007AJH072LNLBHR000120
AJY090LNLBHR000994AJH090LNLBHR000075
AJY108LNLBHR000006AJH108LNLBHR000026
AJY126LNLBHR000776AJH126LNLBHR000050
AJY144LNLBHR000004AJH144LNLBHR000035
AJY162LNLBHR000008AJH162LNLBHR000013
AJY072LNTBHT000002AJH072LNTBHT000163
AJY090LNTBHT000002AJH090LNTBHT000128
AJY108LNTBHT000002AJH108LNTBHT000029
AJY126LNTBHT000002AJH126LNTBHT000130
AJY144LNTBHT000002AJH144LNTBHT000382
AJY162LNTBHT000002AJH162LNTBHT000112

Other Regions Listed in the Bulletin

RegionModelSerial Number
ChinaAJQ224LALBHR000456
AJQ280LALBHR001455
AJQ335LALBHR001371
AJQ400LALBHR001596
AJQ450LALBHR001987
Middle EastAJG072LNLBHR000072
AJG090LNLBHR000201
AJG108LNLBHR000052
AJG126LNLBHR000141
AJG144LNLBHR000181
AJG162LNLBHR000080
North AmericaAJU072LALBHCSP000069
AJU096LALBHCTP000177
AJU120LALBHCUP000116
AJR072LALBHSNN000080
AJR096LALBHSPN000104
AJR120LALBHSQN000088

Service Check Before Installing UTY-SPWX

  1. Confirm the outdoor unit model.
  2. Confirm the outdoor unit serial number against the applicable bulletin table.
  3. Confirm the outdoor unit software is compatible with the Pressure Sensor Kit.

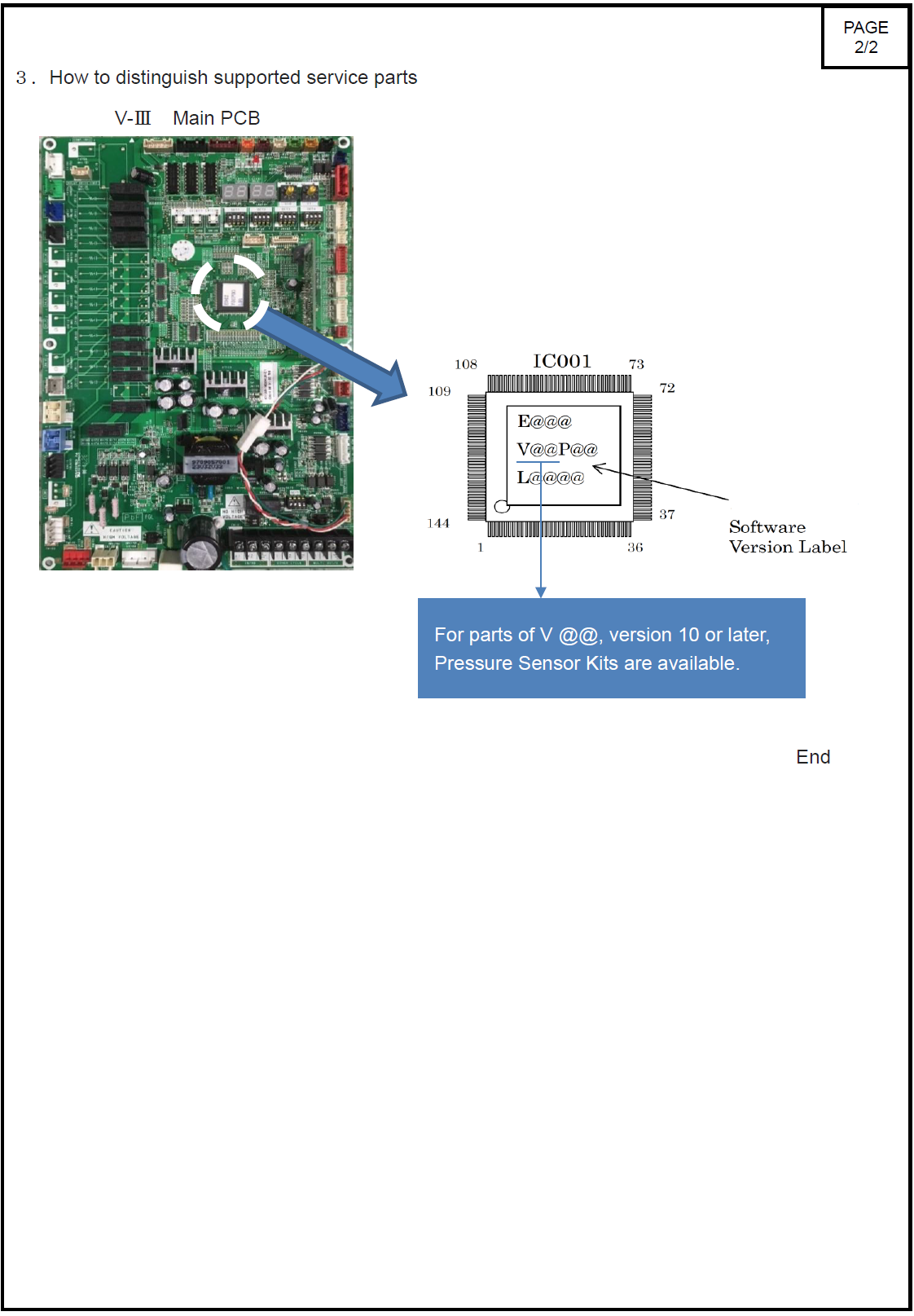

  4. For Main PCB replacement, confirm the replacement PCB has Version 10 or later software.
  5. On multiple outdoor-unit systems, ensure all outdoor units use matching Version 10 or later software.
  6. Confirm DIP SW 102-4 is set as required for the Pressure Sensor Kit installation.
Source: Fujitsu General Service Bulletin VRF-0159, issued 4 April 2018, and Product News VRF-18-005, dated 9 March 2018.
