General Assist Technical Reference
Replaceable Core Driers and Acid Testing
Protecting a replacement compressor after mechanical failure or electrical burnout
General refrigeration and air-conditioning service guidance, including large VRF systems
A compressor replacement should be treated as a system-cleanliness and contamination-control task, not only as a component change. Correctly selected driers, oil or refrigerant acid testing, evacuation and follow-up inspection help protect the replacement compressor and connected valves, heat exchangers and pipework.
Important: Always follow the service procedure for the specific equipment, refrigerant and oil. Some VRF manufacturers restrict where temporary driers may be installed and require them to be removed after clean-up. Do not introduce unapproved restrictions into the permanent refrigerant circuit.
1. Why driers matter
Filter driers help control two major threats to refrigeration-system reliability:
| Contaminant | Potential effect |
|---|---|
| Moisture | Can react with refrigerant and hygroscopic POE oil, contributing to acid formation, corrosion, copper plating and lubricant deterioration. |
| Solid debris | Metal particles, carbon, sludge and damaged insulation can restrict electronic expansion valves, capillaries, strainers and oil-return passages. |
Modern POE oil readily absorbs moisture from the atmosphere. Open pipework, replacement components and extended service work should therefore be kept sealed and exposed for the shortest practical time.
2. Compressor replacement without confirmed burnout
Even where the failure appears mechanical, the technician should assess the condition of the oil and refrigerant circuit before deciding the clean-up scope.
- Determine the cause of failure before installing the replacement compressor.
- Inspect the removed compressor oil for discolouration, metallic debris, burnt odour and acidity.
- Replace existing factory or field filter driers where the manufacturer requires it.
- For a large system, consider an accessible replaceable-core liquid-line shell when permitted by the equipment manufacturer.
- Use the correct core type for the refrigerant, oil, moisture load and clean-up duty.
- Check pressure drop and replace or remove temporary clean-up cores after the specified operating period.

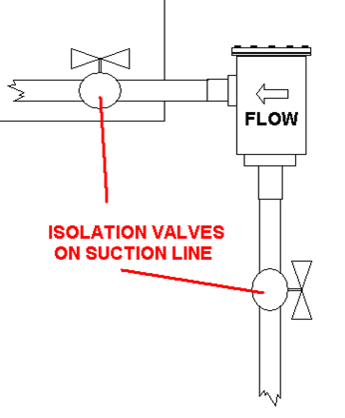

Do not assume every compressor failure requires a permanent suction drier. Suction-line driers create pressure drop and are commonly used as temporary burnout clean-up devices. Their installation position, sizing and removal criteria must be approved for the system.
3. Electrical burnout and system contamination
An electrical burnout can decompose motor insulation, oil and refrigerant. The resulting acid, carbon and sludge may circulate well beyond the failed compressor, particularly in a VRF system with shared pipework, branch units and multiple heat exchangers.
Typical clean-up requirements
- Recover the refrigerant into an appropriate recovery cylinder and handle it in accordance with environmental and waste requirements.
- Remove the failed compressor and inspect accessible oil, strainers and pipework.
- Replace contaminated oil-management components, accumulators, separators or valves where required by the manufacturer.
- Install approved high-acid-capacity liquid-line and, where specified, temporary suction-line clean-up driers.
- Use oxygen-free dry nitrogen for pressure testing, sweeping and brazing. Never use oxygen or compressed air.
- Evacuate the system using a calibrated micron gauge and verify vacuum stability.
- Operate, sample and re-test the system until acid and contamination indicators are acceptable.
4. Acid testing
Acid testing helps establish whether clean-up is complete and whether drier cores need to be changed again. Use a test kit that is suitable for the actual refrigerant and lubricant.
| Test stage | Purpose |
|---|---|
| Before replacement | Test oil from the failed compressor, where a representative sample can be safely obtained, to determine the likely contamination level. |
| After initial operation | Re-test after the replacement compressor has circulated oil through the system and the clean-up cores have had time to absorb contaminants. |
| Follow-up service | Confirm that acidity has not returned and check drier pressure drop, oil condition and system performance. |
Interpreting the result
- Acid detected: continue the clean-up process, replace cores as required and investigate retained contaminated oil or refrigerant.
- Neutral result: confirm the reading against the test-kit instructions and other evidence such as oil colour, insulation resistance and drier pressure drop.
- Unclear or contaminated sample: obtain another representative sample rather than relying on an uncertain result.
5. Recommended service sequence
| 1 | Diagnose the failure. Record operating history, electrical condition, oil condition and the likely root cause. |
| 2 | Recover the refrigerant. Prevent cross-contamination and do not return suspect refrigerant to the system unless it has been verified as suitable. |
| 3 | Sample and inspect. Test accessible oil for acidity and examine it for carbon, sludge and metal. |
| 4 | Clean the circuit. Replace contaminated components and use only manufacturer-approved flushing or cleaning methods. |
| 5 | Install approved driers. Position replaceable-core shells where they can be safely isolated, monitored and serviced. |
| 6 | Pressure-test and evacuate. Use oxygen-free dry nitrogen, then evacuate to the equipment manufacturer’s specified target and perform a standing-vacuum test. |
| 7 | Charge and commission. Charge by the specified method and confirm pressures, temperatures, superheat, subcooling, compressor current and oil return. |
| 8 | Re-test and change cores. Follow the drier and equipment manufacturer’s timing. A 24–48 hour check may be appropriate, but the required interval depends on system condition and procedure. |
| 9 | Remove temporary restrictions. Remove temporary suction driers or clean-up assemblies where required and reinstate the approved permanent configuration. |
| 10 | Document the repair. Record refrigerant and oil quantities, test results, core changes, vacuum readings and final operating data. |
6. Consequences of inadequate clean-up
- Premature failure of the replacement compressor.
- Restricted electronic expansion valves, strainers or oil-return circuits.
- Continued deterioration of oil and winding insulation.
- Corrosion, copper plating and damage to internal bearing surfaces.
- Contamination spreading through interconnected VRF indoor units, outdoor modules and branch equipment.
- Repeat labour, refrigerant recovery and major component costs.
7. Best-practice guide
| Condition | Typical response |
|---|---|
| Mechanical failure with clean oil and no acid | Correct the root cause, replace required driers, minimise moisture entry, evacuate and commission. Use replaceable cores where approved and beneficial. |
| Confirmed or suspected burnout | Use high-acid-capacity clean-up driers, test acidity, replace contaminated components and repeat testing and core changes until the system is stable. |
| New or uncontaminated system | Do not add field driers unless required by the design or manufacturer. Follow the factory commissioning procedure. |
Key takeaway: The replacement compressor can only be as reliable as the circuit into which it is installed. Confirm the failure cause, control moisture and debris, test for acid, monitor the clean-up process and leave the system in the manufacturer-approved configuration.
This article provides general technical guidance. Equipment-specific service manuals, refrigerant and oil safety data sheets, local regulations and approved repair procedures take precedence.
